When a vehicle changes lanes, the driver often cannot see objects that are hidden in the left blind spot. Missing a cyclist, a motorbike or a slow moving car can lead to a crash or a near-miss. This risk is especially high in busy city traffic or on highways where lane changes happen frequently. The Advantech TREK-154-LA01A0E Left AI Blind Spot Detection Module with NTSC RS-485 watches the left side, spots vulnerable road users, and warns the driver in real time, giving you a clear safety solution.

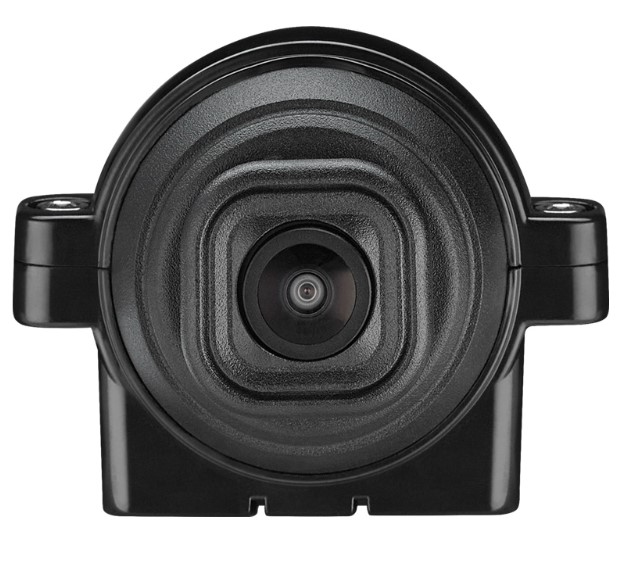

Advantech TREK-154-LA01A0E Left AI Blind Spot Detection Module with NTSC RS-485 with Advantech
You need a reliable way to see what is hidden on the left side of your vehicle. This module from Advantech uses AI video analysis to detect pedestrians, cyclists and other vehicles in the blind spot. It sends an alert through the RS-485 interface so the driver can act before a collision. The system works in any light condition because it uses NTSC video and a high-dynamic-range sensor. If you want to protect yourself and others, this device gives you the missing eyes you need.
Key Features
- AI object detection for pedestrians, cyclists and vehicles.
- 180deg horizontal field of view for wide coverage.
- CMOS sensor with 1280 x 960 resolution (720 p viewing).
- NTSC video output with RCA connector.
- RS-485 cascading for multiple module setups.
- Power input 10 ~ 36 VDC, suitable for most vehicle systems.
- IP69K rating protects against water and dust.
- Compact size 50 44.7 mm, easy to mount.
- Lightweight design: camera 132 g, bracket 88 g.
Specifcations:
General
|
|
Manufacturer
|
Advantech |
| Part Number |
TREK-154-LA01A0E |
| Product Series |
TREK-154 |
| Product Type |
AI Blind Spot Detection Module |
| Installation Position |
Left |
| Application |
Left Blind Spot Detection |
| Intelligent Video Analysis |
|
| Machine Learning Object Detection |
VRUs, vehicles |
| Sensing / Viewing FOV (Horizontal) |
180° / 170° |
| Electrical Interface |
|
| Camera Sensor |
CMOS type, 1280 × 960 (1280 × 720 viewing resolution), 100 dB dynamic range |
| I/O |
1 x Video out (RCA, male), cascading RS-485 connectors for connecting multiple modules, and
1 x ACC/GND (open wire)
|
| Power Input |
10 ~ 36 VDC |
| Power Consumption |
< 4W |
| Environmental |
|
| Operating Temperature |
-40 ~ 85 °C / -40 ~ 185 °F |
| Storage Temperature |
-40 ~ 105 °C / -40 ~ 221 °F |
| Operating Humidity |
30 ~ 80% RH @ 40 °C / 104 °F |
| IP Rating |
IP69K |
| Shock / Vibration |
TBA |
| Drop Tolerance |
TBA |
| Certification EMC |
FCC / CE |
| Safety |
TBA |
| Mechanical |
|
| Dimensions (D × H) |
50 × 44.7 mm / 1.96 × 1.76 in (w/o bracket) |
| Weight |
Camera module: 132 g / 0.29 lb
Camera bracket: 88 g / 0.19 lb
|
