Tired of missing vehicles on the right side of your lane? The Advantech TREK-154-LB01A0E Right AI Inner Wheel Detection Module NTSC RS-485 is built to catch those blind-spot moments. It attaches to the inner wheel on the right side and sends clear video and data to your safety system. If you need reliable detection to avoid accidents, this module gives you the eyes you lack. It also supports NTSC video format, making integration with existing monitors simple. The modules rugged design survives dust, rain and vibration on busy streets.

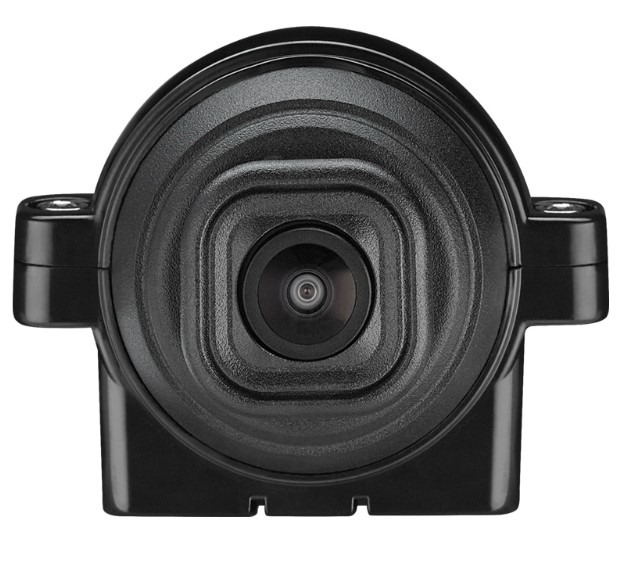

Advantech TREK-154-LB01A0E Right AI Inner Wheel Detection Module NTSC RS-485
The main problem on many road-monitoring projects is the lack of a dedicated sensor for the right inner wheel area. Without it, cameras miss pedestrians, cyclists and small vehicles that appear close to the curb. This creates safety gaps and forces engineers to add extra hardware. The Advantech module solves the issue by providing a compact, weather-proof camera with RS-485 networking that fits directly on the right side. It delivers 180 view, machine-learning detection and low power use, so you get full coverage without extra wiring. Because the unit talks over RS-485, you can place it far from the main controller without signal loss.
Key Features
- Right-side inner wheel installation position.
- CMOS sensor 1280 x 960 resolution, 100 dB dynamic range.
- NTSC video output with RCA connector.
- Cascading RS-485 ports for easy module expansion.
- Power input 10 ~ 36 VDC, <4 W consumption.
- IP69K protection against water and dust.
- Humidity range 30 %-80 % RH at 40 C.
- Machine-learning object detection for VRUs and vehicles.
Specifcations:
General
|
|
Manufacturer
|
Advantech |
| Part Number |
TREK-154-RB01A0E |
| Product Series |
TREK-154 |
| Product Type |
AI Inner Wheel Detection Module |
| Installation Position |
Right Side (Inner Wheel) |
| Application |
Right Inner Wheel Detection |
| Intelligent Video Analysis |
|
| Machine Learning Object Detection |
VRUs, vehicles |
| Sensing / Viewing FOV (Horizontal) |
180° / 170° |
| Electrical Interface |
|
| Camera Sensor |
CMOS type, 1280 × 960 (1280 × 720 viewing resolution), 100 dB dynamic range |
| I/O |
1 x Video out (RCA, male), cascading RS-485 connectors for connecting multiple modules, and
1 x ACC/GND (open wire)
|
| Power Input |
10 ~ 36 VDC |
| Power Consumption |
< 4W |
| Environmental |
|
| Operating Temperature |
-40 ~ 85 °C / -40 ~ 185 °F |
| Storage Temperature |
-40 ~ 105 °C / -40 ~ 221 °F |
| Operating Humidity |
30 ~ 80% RH @ 40 °C / 104 °F |
| IP Rating |
IP69K |
| Shock / Vibration |
TBA |
| Drop Tolerance |
TBA |
| Certification EMC |
FCC / CE |
| Safety |
TBA |
| Mechanical |
|
| Dimensions (D × H) |
50 × 44.7 mm / 1.96 × 1.76 in (w/o bracket) |
| Weight |
Camera module: 132 g / 0.29 lb
Camera bracket: 88 g / 0.19 lb
|
