Never miss a vehicle in your blind spot again. The Advantech TREK-154-RA01A0E Right AI Blind Spot Detection Module NTSC RS-485 is a compact camera that watches the right side of a vehicle and alerts you when a car, bike or pedestrian comes close. Drivers often lose sight of objects on the far right, especially in large trucks or buses, and that can cause dangerous lane changes. This module gives you a clear view and a reliable warning so you can stay safe on the road.

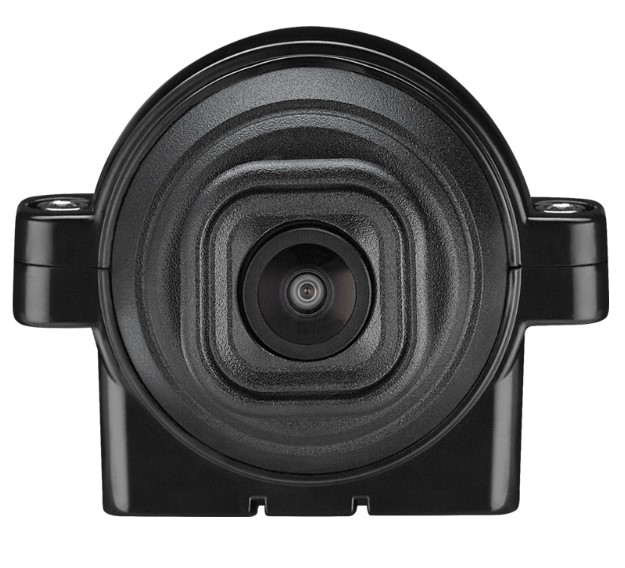

Advantech TREK-154-RA01A0E Right AI Blind Spot Detection Module NTSC RS-485
The main problem is the hidden area on the right side of a vehicle where other road users can appear without being seen. When a driver cannot detect a vehicle or a vulnerable road user, a collision is likely. This module solves the problem by using machine-learning object detection to recognize vehicles and VRUs within a 180 field of view. The detection data is sent through RS-485, so the vehicles control system can trigger visual or audible alerts instantly.
Key Features
- Right-hand installation position.
- AI-based object detection for vehicles and VRUs.
- 180 degree horizontal field of view.
- CMOS sensor with 1280 960 resolution.
- Video out via RCA connector.
- Cascading RS-485 for multiple modules.
- Power input 10 ~ 36 VDC, consumption under 4 W.
- IP69K environmental protection.
Specifcations:
General
|
|
Manufacturer
|
Advantech |
| Part Number |
TREK-154-RA01A0E |
| Product Series |
TREK-154 |
| Product Type |
AI Blind Spot Detection Module |
| Installation Position |
Right |
| Application |
Right Blind Spot Detection |
| Intelligent Video Analysis |
|
| Machine Learning Object Detection |
VRUs, vehicles |
| Sensing / Viewing FOV (Horizontal) |
180° / 170° |
| Electrical Interface |
|
| Camera Sensor |
CMOS type, 1280 × 960 (1280 × 720 viewing resolution), 100 dB dynamic range |
| I/O |
1 x Video out (RCA, male), cascading RS-485 connectors for connecting multiple modules, and
1 x ACC/GND (open wire)
|
| Power Input |
10 ~ 36 VDC |
| Power Consumption |
< 4W |
| Environmental |
|
| Operating Temperature |
-40 ~ 85 °C / -40 ~ 185 °F |
| Storage Temperature |
-40 ~ 105 °C / -40 ~ 221 °F |
| Operating Humidity |
30 ~ 80% RH @ 40 °C / 104 °F |
| IP Rating |
IP69K |
| Shock / Vibration |
TBA |
| Drop Tolerance |
TBA |
| Certification EMC |
FCC / CE |
| Safety |
TBA |
| Mechanical |
|
| Dimensions (D × H) |
50 × 44.7 mm / 1.96 × 1.76 in (w/o bracket) |
| Weight |
Camera module: 132 g / 0.29 lb
Camera bracket: 88 g / 0.19 lb
|
