Tired of fuzzy screens and unreliable controls in your vehicle? The Advantech TREK-303R-H2A0E, WVGA (800 x 480) 7" In-Vehicle Smart Display gives you a clear, rugged view and easy touch operation for any mobile application. Fleet managers, emergency responders, and field technicians need a display that works in harsh conditions, and this unit delivers exactly that.

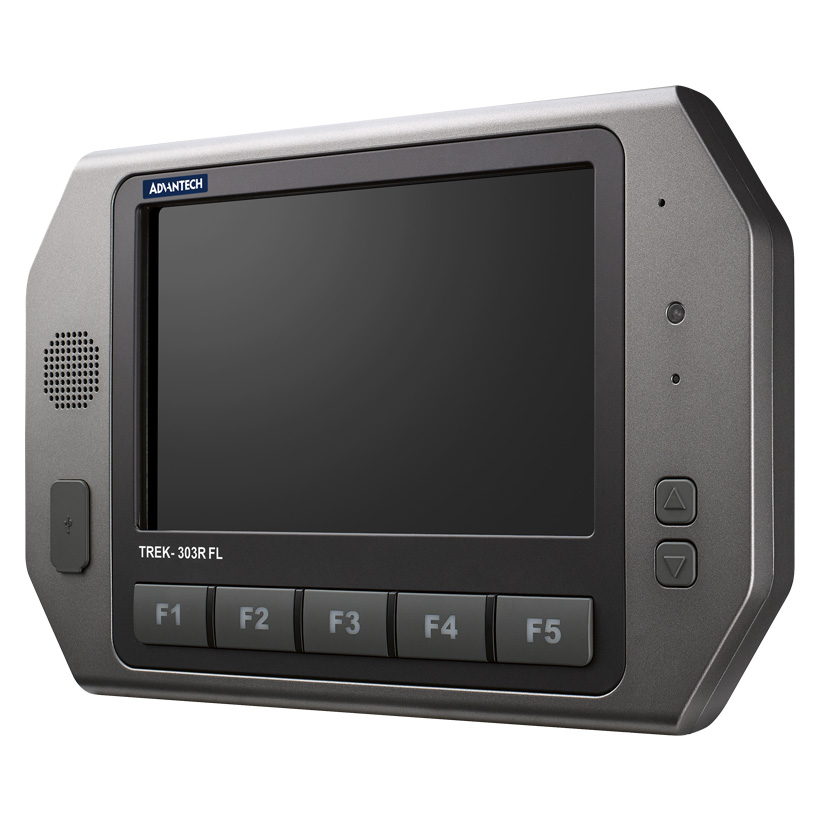

Advantech TREK-303R-H2A0E, WVGA (800 x 480) 7" In-Vehicle Smart Display
The display solves the common issue of unreadable information when the sun shines on a low-brightness screen. In a vehicle, a dim panel can cause missed alerts, longer reaction time, and costly errors. This model provides 500 cd/m2 brightness, auto-dimming sensor, and a wide 120 viewing angle so you can see details clearly from any seat. Its resistive touchscreen works with gloves and stylus, and the built-in speaker and programmable hotkeys let you control navigation, video, or diagnostic software without looking away. All of this is packed into a fan-less, 0.95 kg unit that meets military vibration standards, so it stays reliable even on bumpy roads.
Key Features
- WVGA 800 x 480 resolution on a 7-inch LCD.
- Single-channel LVDS video interface.
- 120deg horizontal and 100deg vertical viewing angles.
- 500:1 contrast ratio for sharp images.
- LED backlight with 50,000-hour life.
- Integrated light, thermal, and temperature sensors.
- USB 2.0 Type-A port for peripheral connection.
- Power input 12 VDC 5%, 7 W nominal consumption.
- IP31 protection, optional IP54 I/O cover.
- Meets MIL-STD-810G vibration and shock standards.
Specifications
| LCD |
|
| Resolution |
WVGA (800 x 480) |
| Design Compatible Models |
TREK-60/60N |
| Video Interface |
Single-channel LVDS |
| Pixel Pitch |
0.1905 x 0.1905 (H x V) |
| Viewing Angle (H/V) |
120°/100° (CR > 10) |
| Contrast Ratio |
500 |
| Backlight Life |
50,000 hours |
| Backlight Type |
LED |
| Brightness |
500 cd/m2, typical |

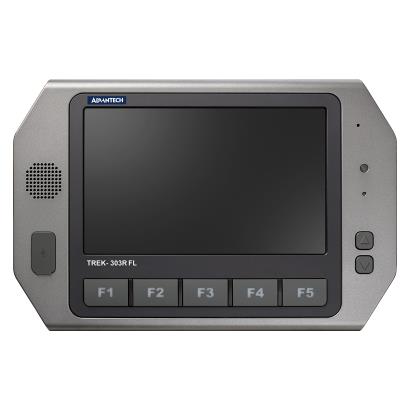

| Front Panel |
|
| Speaker |
1 x 2 W speaker |
| Hotkey |
5 x programmable function keys |
| Brightness Control |
1 x light sensor for auto dimming |
| Light Sensor |
1 x with MRM SDK support |
| Thermal Sensor |
1 x with MRM SDK support |
| USB Port |
1 x USB 2.0 Type A |
| Touchscreen |
|
| Size |
7.0" format |
| Type |
4-wire resistive |
| Transparency |
84% ± 3% |
| Hardness |
3H |
| Durability |
Knock test > 10,000,000 times (stylus = R0.8, < = 250g) |
| IK Shock Protection Rate |
N/A (IK-07, based on project) |

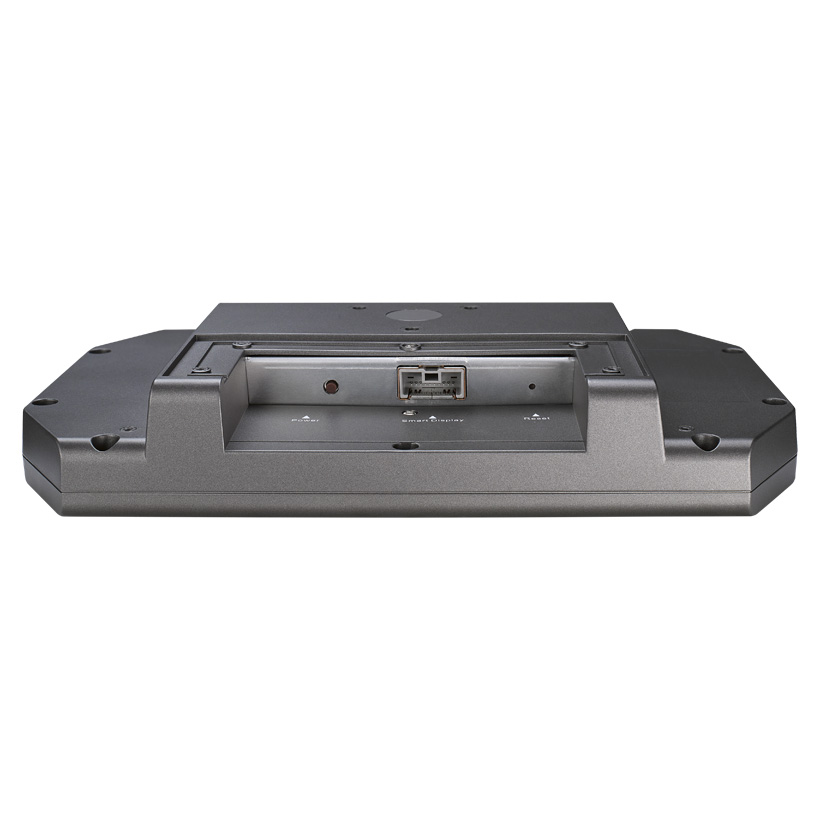

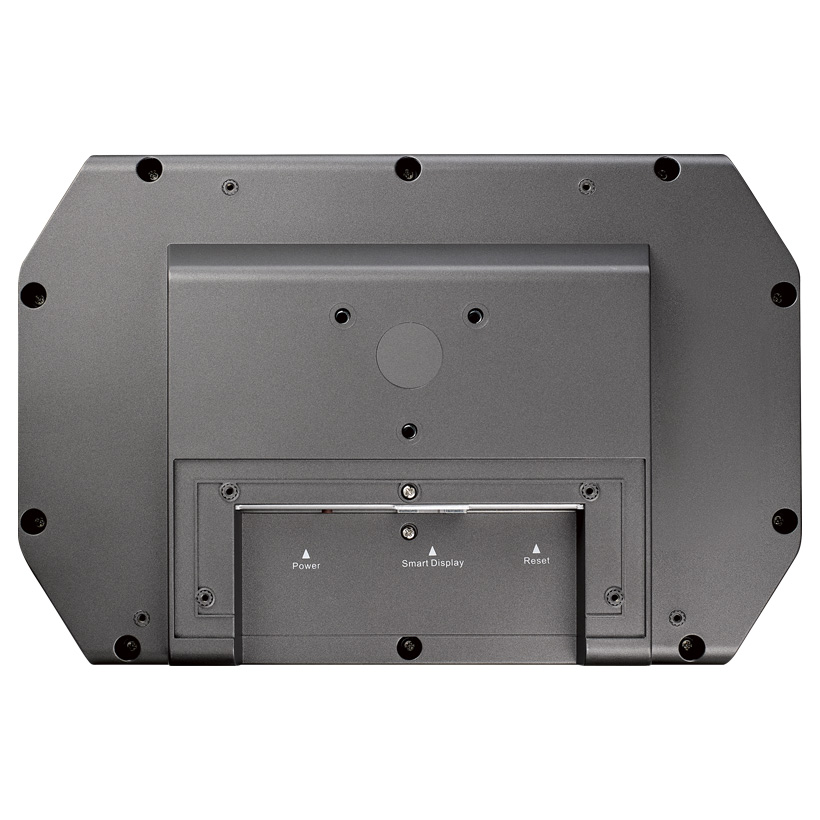

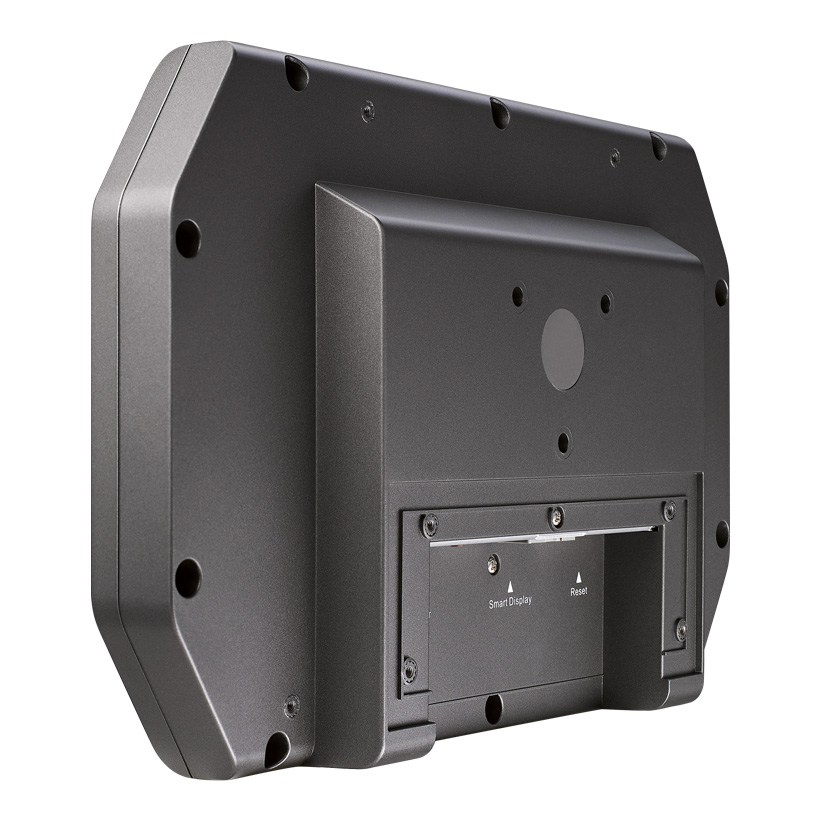

| Rear I/O |
|
| Smart Display Port 2.0 |
SDP 2.0 locking type connector paired with TREK computing box (TREK-60/ 60N) |
| Power Button |
1 x power button (to power on/off TREK computing box) |
| Reset Button |
1 x reset button (to reset TREK computing box) |
| Power |
|
| Power Input |
12 VDC ± 5% (powered by TREK-60/ 60N) |
| Power Consumption |
7 W (nominal), 12 W (max.) |
| Mechanical |
|
| Dimensions (W x H x D) |
244 x 160 x 41 mm |
| Material |
PC |
| Weight |
0.95 kg |
| Mounting |
3 x 120 degree holes, RAM mount |
| Environment |
|
| Operating Temperature |
-30 ~ 70°C (-22 ~ 158°F) |
| Storage Temperature |
-40 ~ 80°C (-40 ~ 176°F) |
| Humidity |
95 ± 5% |
| Thermal Design |
Fanless |
| Ingress Protection |
IP31 (entire system) |
| |
IP 54 (with I/O cover based on project) |
| Certification |
|
| Vibration/Shock |
MIL-STD-810G, SAE J1455 4.9.4.2, EN60721-3-5(5M3) |
| EMC |
CE, FCC, CCC, E-MARK (E13) |
