Imagine a dashboard that shows clear, bright information even in bright sunlight, while you stay focused on the road. The Advantech TREK-306P-H2A0E, XGA (1024 x 768) 10" In-Vehicle Smart Display is built for that need. It gives you a rugged, touch-enabled screen that works in harsh vehicle environments. If you have struggled with fuzzy screens, short-lived displays, or complicated wiring, this unit solves those issues and lets you deliver reliable visual data to drivers and passengers.

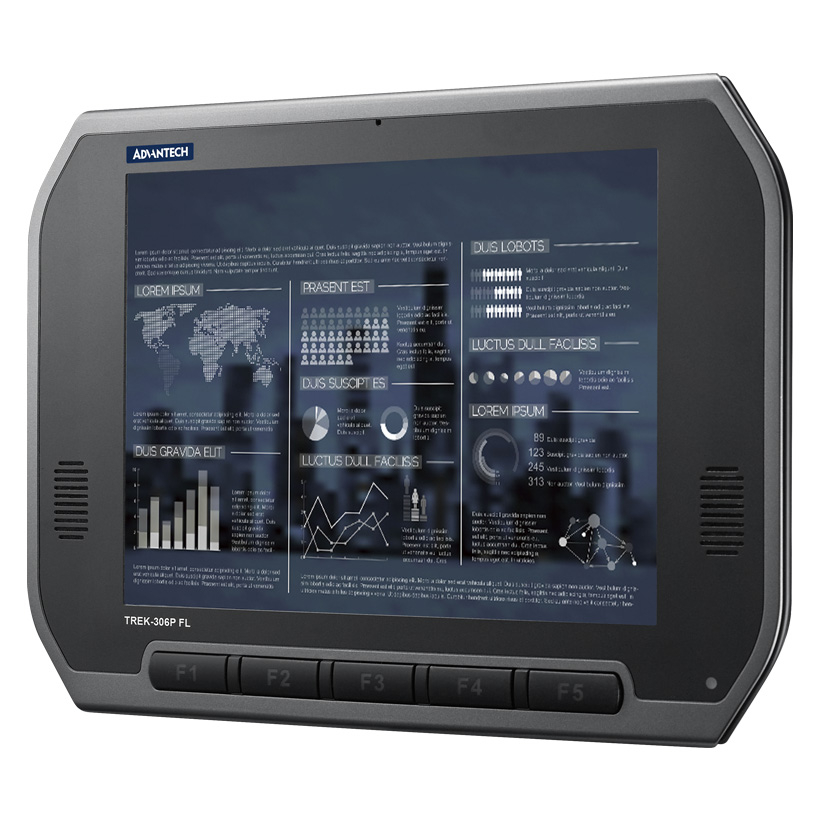

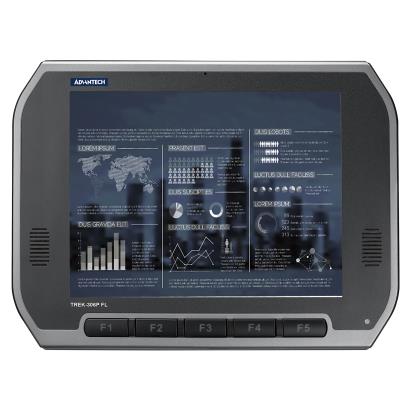

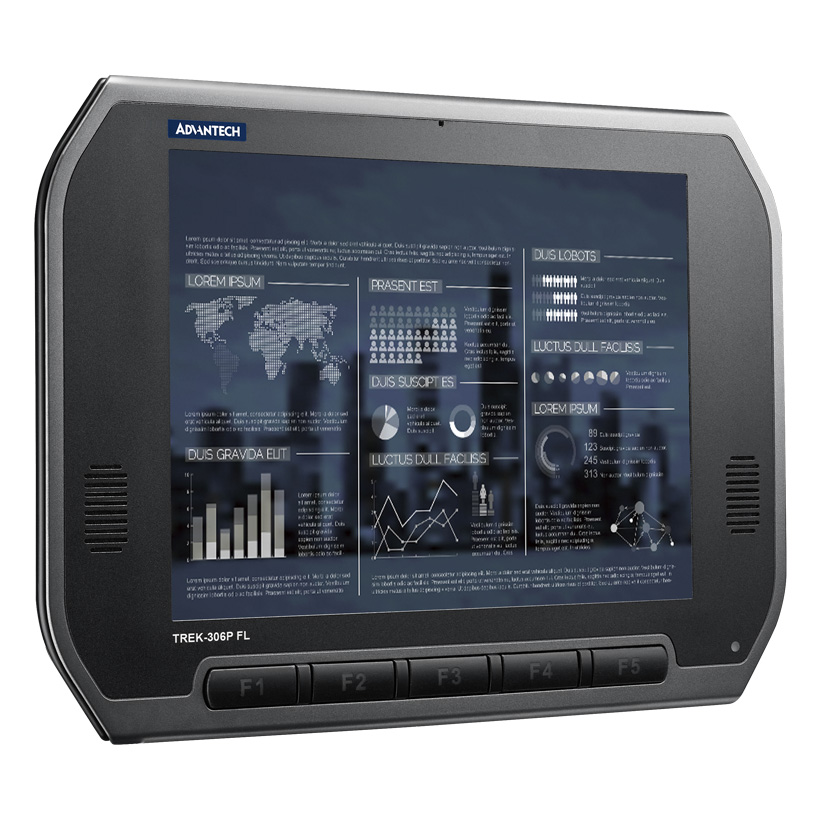

Advantech TREK-306P-H2A0E, XGA (1024 x 768) 10" In-Vehicle Smart Display
Vehicle operators often need a display that can survive vibration, temperature swings, and dust while still providing sharp graphics. Without a proper screen, important navigation, safety alerts, or entertainment content can be missed, leading to delays or accidents. This Advantech smart display answers the problem with a fanless, IP55-rated design, 500 cd/m brightness, and an auto-dimming sensor. The result is a clear view in any lighting condition and a simple connection to the TREK computing box, so you can install it quickly and keep it running for years.
Key Features
- Resolution: XGA 1024 x 768 for clear graphics.
- LVDS single-channel video interface for reliable signal.
- 500 cd/m typical brightness with auto-dimming light sensor.
- 5000-hour LED backlight life for long service.
- 5 programmable hotkeys for custom shortcuts.
- 2 x 2 W speakers and built-in mic with echo cancellation.
- 10-finger projected capacitive touchscreen, 87 % transparency.
- VESA 75 75 mm and RAM Mount options for flexible installation.
- Power consumption: 11 W nominal, 18 W max, powered by TREK-60/60N.
- IP55 rating with I/O cover for dust and water resistance.
- MIL-STD-810G shock and vibration certification for rugged use.
Specifications
| LCD |
|
| Resolution (pixels) |
XGA (1024 x 768) |
| Design Compatible Models |
TREK-60/60N |
| Video Interface |
Single Channel, LVDS |
| Pixel Pitch |
0.0685 (H) x 0.2055 (V) |
| View Angle (H/V) |
176 (H)/176 (V) (CR>10) Super MVA technology |
| Contrast Ratio |
1000 |
| Backlight Life |
50,000 hours |
| Backlight Type |
LED |
| Brightness (cd/m2) |
500 cd/m2, typical |
| Front Panel |
|
| Speaker |
2 x 2 W speaker |
| Hotkey |
5 x programmable function keys |
| Brightness Control |
1 x light sensor for auto dimming |
| Light Sensor |
1 x with MRM SDK support |
| Thermal Sensor |
1 x with MRM SDK support |
| Mic |
1 x Built-in mic |
| Touchscreen |
|
| Size |
10.4" (4:3) format |
| Type |
10 Fingers projected capacitive touchscreen |
| Transparency |
87% ±2% |
| Hardness |
≥ 7H (JIS K5400) |
| IK Shock Protection Rate |
IK07 |

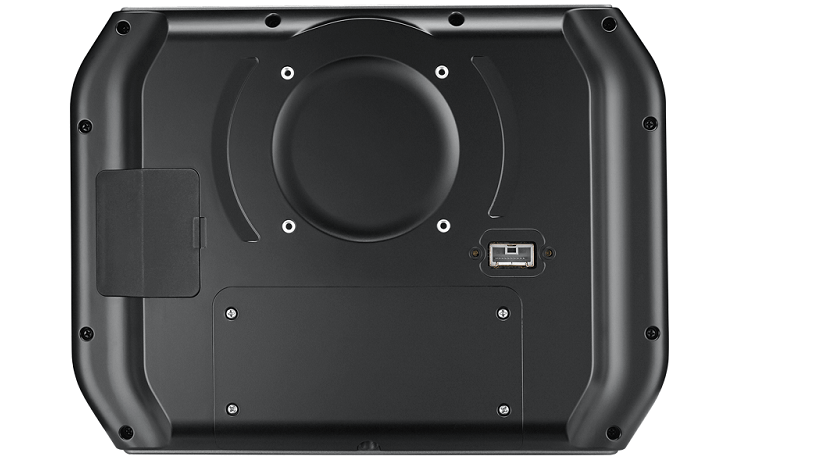

| Rear I/O |
|
| Smart DisplayPort 2.0 |
SDP 2.0 locking type connector paired with TREK computing box (TREK-60/60N) |
| Integrated MIC |
Supports Voice call (Echo cancellation) |
| |
Supports Voice Recognition |
| USB Port |
1 x USB 2.0 Type-A |
| Power Button |
1 x Power button (To power on/off the TREK box PC) |
| Reset Button |
1 x Reset button (To Reset the TREK box PC) |
| Power |
|
| Power Input |
12 V ± 5% (Powered by TREK-60/60N) |
| Power Consumption |
11 W (nominal), 18 W (max.) |
| Mechanical |
|
| Dimensions (W x H x D) mm |
303 x 226 x 35 mm |
| Material |
PC |
| Weight |
1.7 kg |
| Mounting |
VESA (75 x 75mm), RAM Mount |
| Environment |
|
| Operating Temperature |
-30 ~ 70°C |
| Storage Temperature |
-40 ~ 80°C |
| Humidity |
95 ± 5% |
| Thermal Design |
Fanless |
| Ingress Protection |
IP55 with I/O Cover |
| Certification |
|
| Vibration/Shock |
MIL-STD-810G, SAE J1455 4.9.4.2, EN60721-3-5(5M3) |
| EMC |
CE, FCC |
