Many edge-computing projects need a computer that can survive harsh environments while still delivering fast AI performance. If the device cannot handle temperature swings, vibration, or vehicle power spikes, the whole system may fail and cause costly downtime. The Advantech TREK-50N-G0PLXF-10 gives you a rugged, AI-ready platform that runs heavy models and stays reliable in trucks, factories, or outdoor stations.

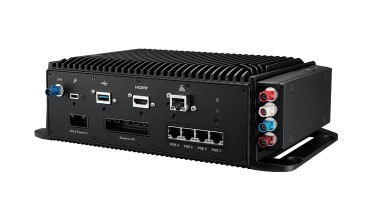

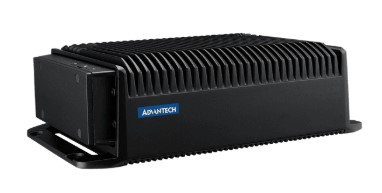

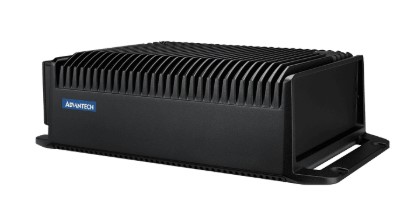

Advantech TREK-50N-G0PLXF-10, NVIDIA Jetson Orin NX 8GB Industrial PC (Standard) with Advantech
This is a compact industrial PC built around the NVIDIA Jetson Orin NX 8 GB module. It is designed for AI inference, computer vision, and data-fusion tasks at the edge. Users who need real-time image analysis in a vehicle or a factory often struggle with overheating or unreliable power. Advantech solves that problem with a sealed chassis, wide-range temperature support, and intelligent vehicle power management that keeps the system alive even when the battery drops.
Key Features
- 6-core Arm Cortex-A78AE CPU with 8 GB LPDDR5 memory.
- 1,024-core NVIDIA Ampere GPU with 32 Tensor Cores.
- VIO2.0 connector for ignition, CANFD and J1708 interfaces.
- Standard I/O: USB-C recovery, USB-3.0 Type-A, Gigabit Ethernet.
- Four PoE-enabled RJ-45 ports, total output limited to 30 W.
- Built-in u-blox NEO-M9L GPS with antenna connectors.
- Wi-Fi 5 or Wi-Fi 6 modules and Bluetooth 5.0 via mini-PCIe or M.2.
- LTE Cat-4 or 5G options with external SIM slot and eSIM support.
- iVPM 2.0 power management for ignition on/off, hibernate and wake-on-events.
- Operating temperature -20 C to 70 C without airflow.
- Compliance with MIL-STD-810H, CE, FCC, E-Mark and UL safety standards.
Specifications
| Processor |
|
| Processor (Via Orin NX) |
NVIDIA® Jetson Orin™ NX 8GB |
| CPU |
NVIDIA® Jetson Orin™ NX 8GB: 6-core Arm® Cortex®-A78AE |
| GPU |
1,024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| Memory |
NVIDIA® Jetson Orin™ NX 8GB: 8GB 128-bit LPDDR5, 102.4GB/s |
| I/O (Via Orin NX) |
|
| VIO2.0 (via VIO cable) |
1 x ignition and power input
1 x J1708 (supports J1587)
2 x CANFD; compliant with CANbus, J1939, OBD-II/ISO-15765 specifications |
| Generic I/O 2.0 (via generic I/O cable) |
2 x 4-wire RS-232/RS-485 (default RS232 + 485)
6 x isolated DI (dry/wet), 4 x isolated DO
1 x line-out, 1 x mic-in |
| Standard I/O |
1 x USB Type-C for System Recovery
1 x USB3.0 typeA
1 x RJ45 Giga LAN |
| PoE |
4 x RJ-45 for 10/100 Base-T(X) PoE, 802.3af/at compliant |
| PoE Power |
Power output shared by all cameras/devices is limited to 30W |
| Development Tools |
|
| SDK |
JetPack 6.1 |
| Operating System |
|
| Linux |
Ubuntu 22.04 / JetPack 6.1 |
|
RF (WLAN/WWAN via
RF extension)
|
|
| WLAN/Bluetooth |
1 x full-size mini PCIe (PCIe/USB 2.0) for SparkLAN 802.11a/b/g/n/ac Wi-Fi 5 + Bluetooth V5.0
combo module; optional high-power Wi-Fi module
1 x M.2 2230 (A+E Key) for 802.11a/b/g/n/ac/ax Wi-Fi 6 + Bluetooth V5.0 combo module
|
| WWAN |
1 x full-size mini PCIe (USB 2.0) for 4G module (LTE Cat-4, HSPA+, GSM/GPRS/EDGE)
1 x externally accessible mini SIM card socket with cover, 1 x embedded SIM (available upon request)
1 x M.2 3042/3052 (B key, USB 3.0) for 4G/5G module |
| GPS |
Built-in u-blox NEO-M9L (ADR), GPS management (via MRM SDK) |
| Antenna |
5 x FAKRA connectors for 1 x GPS (C-code), 2 x Wi-Fi + Bluetooth (I/Z-code), 2 x WWAN/LTE (D/L-code)
with Wi-Fi/WWAN MIMO support
|
| Power Supply |
|
| Input Voltage |
12/24 V Vehicle power (ISO 7637-2 and SAE J1113 compliant) |
| Intelligent Vehicle Power Management (iVPM 2.0) |
System power on/off/hibernate management (programmable ignition on/off/delay)
PoE power total/on/off management (via MRM SDK)
Supports wake-up events: wake-on-alarm (RTC), wake-on-call/SMS, and wake-on-G-sensor
System power protection (vehicle battery low-voltage protection)
System monitoring and diagnostics |
| Environmental |
|
| Shock / Vibration |
MIL-STD-810H, EN60721-3-5 (5M3: Shock 100G 6ms, Random Vibration 3Grms) |
| EMC |
CE, FCC, RCM |
| Vehicle Regulation |
E-Mark (E13), SAE J1455, ISO 7637-2, SAE J1113 |
| RF Regulation |
CE (RED), FCC ID, IC ID |
| Operating Temperature |
-20 ~ 70 °C (Orin NX 8G/16G 10W), w/o airflow |
| |
-20 ~ 60 °C (Orin NX 8G/16G MAXN), w/o airflow |
| Storage Temperature |
-40 ~ 85°C |
| Safety |
|
| Safety |
UL, CB |
