Field workers often need a computer that can survive drops, dust, and extreme temperatures. When a device fails, data is lost and work stops, which costs time and money. The Advantech TREK-773R-LWBXA1E gives you a rugged, all-in-one terminal that stays on and works in harsh conditions. It solves the reliability problem so you can keep moving and keep data safe.

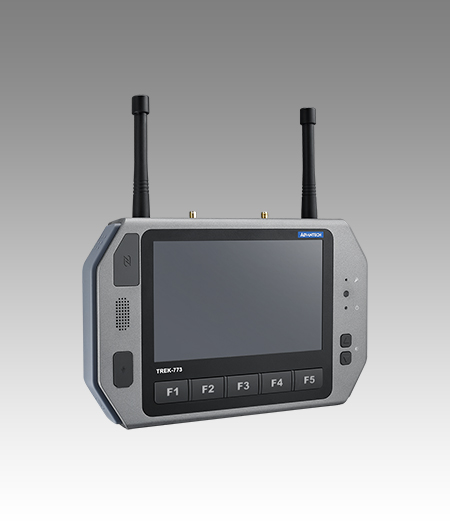

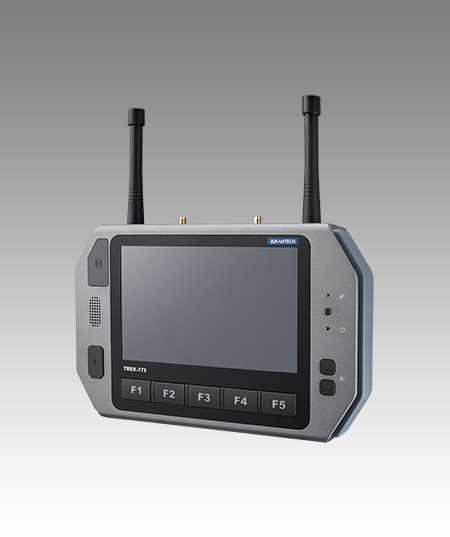

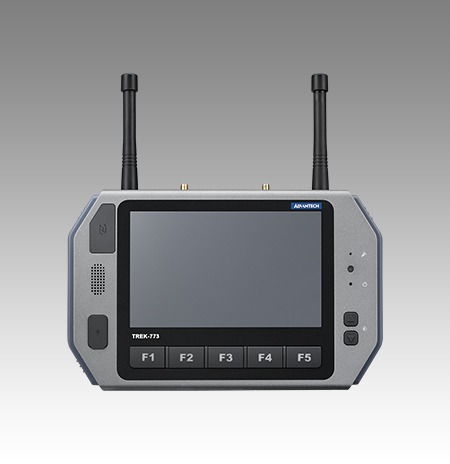

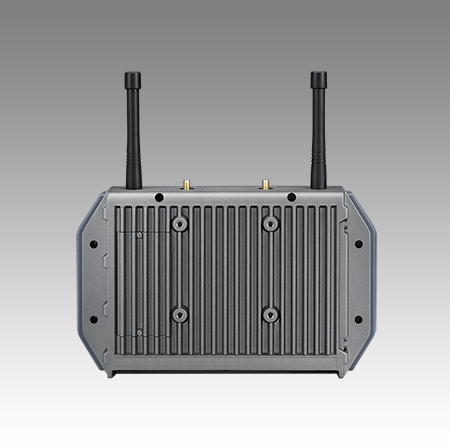

Advantech TREK-773R-LWBXA1E, Intel Atom E3827 AIO 7" Rugged Mobile Data Terminal with Advantech
Imagine a small computer that never quits, even on a bumpy truck or in a cold warehouse. This is a 7-inch all-in-one rugged mobile data terminal built by Advantech. It runs Windows 10 IoT or Ubuntu and connects to LTE, GPS, and Bluetooth. Workers who need to capture data, scan barcodes, or run diagnostics rely on a device that will not break under pressure. Advantech delivers that reliability in a single, easy-to-use unit.
Key Features
- Intel Atom E3827 dual-core processor at 1.75 GHz.
- 7-inch automotive-grade TFT LCD with WVGA resolution.
- Resistive 4-wire touchscreen with 3H hardness and IK06 rating.
- 1 TB CFast storage and expandable SD slot.
- 5 programmable function keys with green LEDs.
- Full-size mini-PCIe slot for Advantech VEGA-330 Edge AI module.
- Standard I/O: SIM, RS-232, USB 3.0, Gigabit LAN.
- Extended I/O: CAN bus, RS-485, isolated DI/DO, CVBS video input.
- LTE, Wi-Fi 802.11ac, Bluetooth, GPS, NFC connectivity.
- Optional IP54 enclosure for dust and water protection.
Specifications
| Processor |
|
| Processor |
Intel® Atom™ E3827 dual-core, 1.75 GHz |
| CPU |
Intel Atom E3827 (Dual Core, 1.75 GHz) |
| Configuration |
|
| Memory |
1 x SODIMM socket |
| OS |
Windows 10 IoT Enterprise 2019 LTSC (64 bit) default, with Ubuntu 18.04 LTSB (64 bit) available upon request |
| Graphics |
|
| Graphics |
Integrated 2D/3D graphics engine |
| Storage |
|
| CFast |
Yes |
| SD card |
1 x externally accessible push-push-type SD slot |
| Display |
|
| Type |
7" automotive-grade TFT LCD |
| Resolution |
WVGA (800 x 480) |
| Brightness (cd/m2) |
1000 nits (typical) |
| Touch Screen |
|
| Type |
4-wire analog resistive touchscreen with 3H surface hardness and IK06 support |
| Sensor |
|
| Sensor |
Light sensor, G-sensor |
| Expansion |
|
| Edge AI |
1 x full-size mini-PCIe slot reserved for Advantech VEGA-330 Edge AI module |
| I/O |
|
| Function Keys |
5 x programmable function keys with green LED indicators |
| Standard I/O |
1 x SIM card slot (left), 1 x High-speed full RS-232 (rear), 1 x USB 3.0 host Type A (rear),
1 x Giga LAN with RJ45 connector (rear)
|
| Extended I/O Port |
1 x Mic-In/1 x stereo Line-In/1 x stereo Line-Out, 1 x CVBS input, 1 x USB 2.0 host,
1 x High-speed full RS-232, 1 x RS-485 with auto flow control, 4 x Isolated DI (dry contact),
4 x isolated DO (open collector output, driven by replay), 1 x CAN bus (supports raw CAN, J1939,
OBD-II/ISO 15765), 1 x J1708 (supports J1587), 1 x 12 VDC/1.5A continuous current output
(shared with standard I/O full RS-232 DB9)
|
| Power |
|
| Input Voltage |
12/24 VDC vehicle power (ISO 7637-2 and SAE J1113 compliant) |
| RF |
|
| WLAN |
IEEE 802.11a/b/g/n/ac |
| LTE |
V (EU) |
| GPS |
V |
| NFC |
V |
| Bluetooth |
V |
| Environment |
|
| IP Rating |
Optional IP54 protection for entire system with additional I/O cover |
| Vibration/Shock |
MIL-STD-810G, EN60721-3 (5M3) |
| EMC/Safety |
CE, FCC, CCC; UL/cUL, CB |
| Vehicle Regulations |
E-mark (E13) for 12/24 V system, SAE J1455 class C, ISO 7637-2, SAE J1113 |
| Railway |
EN50155 (available upon request) |
| RF Regulation |
CE (R&TTE), FCC ID |
| Operating Temperature |
-30 ~ 60°C (-22 ~ 140°F) |
