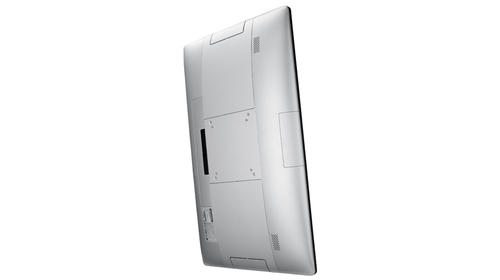

UTC-120 features an all-in-one computing system which equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified
self-service and interactive signage deploy in different application areas. Thanks for the slim and light looking with 3 way cable routing design, makes UTC-120 good fit to diverse scenarios and areas.
The systems deliver updated information with well-designed interactive interfaces, with fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.
Moreover, Advantech DeviceOn/iService Software is a next-generation unified device management unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management.
Specifications
| Display |
| Aspect ratio |
14:9 |
| Display brightness |
250 cd/m² |
| Display number of colours |
16.78 million colours |
| Touchscreen technology |
Projected capacitive system |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Touchscreen |
Yes |
| Display diagonal |
54.6 cm (21.5") |
| Processor |
| Processor cache |
2 MB |
| Processor frequency |
1.1 GHz |
| Processor threads |
4 |
| Processor cores |
4 |
| Processor model |
N4200 |
| Processor family |
Intel® Pentium® |
| Processor manufacturer |
Intel |
| Memory |
| Memory clock speed |
1600 MHz |
| Number of memory slots |
1 |
| Maximum internal memory |
8 GB |
| Internal memory type |
DDR3L-SDRAM |
| Internal memory |
4 GB |
| Storage |
| SSD capacity |
128 GB |
| Storage media |
SSD |
| Total storage capacity |
128 GB |
| Graphics |
| Graphics card |
HD Graphics 505 |
| Graphics card manufacturer |
Intel |
| Features |
| Certification |
FCC, CB, UL, CCC, BSMI IP65 |
| Multimedia |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Network |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| DC-in jack |
Yes |
| RS-232 ports |
2 |
| DVI port |
No |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Ethernet LAN (RJ-45) ports |
2 |
| Design |
| Product colour |
Black |
| Chassis type |
All-in-One |
| Software |
| Operating system installed |
Windows 10 |
| Power |
| Power consumption (typical) |
43.5 W |
| Power supply |
84 W |
| AC adapter output current |
7 A |
| AC adapter output voltage |
12 V |
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Ergonomics |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Wall mountable |
Yes |
| Weight & dimensions |
| Weight |
5.29 kg |
| Height |
315.4 mm |
| Depth |
39.5 mm |
| Width |
523.9 mm |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Packaging content |
| Cables included |
AC |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
CE |
| Technical details |
| Compliance certificates |
CE |
| Other features |
| Maximum internal memory |
8 GB |
