Many factories and smart-city projects need a reliable way to collect data from dozens of sensors that are far apart. When the network is weak or the hardware fails, the whole system can stop working and cause costly downtime. The Advantech WISE-6610-EB, 16GB EMMC Industrial LoRaWAN Gateway solves this by giving you a rugged, low-power hub that talks to LoRaWAN devices and sends the data to your cloud or local server without interruption.

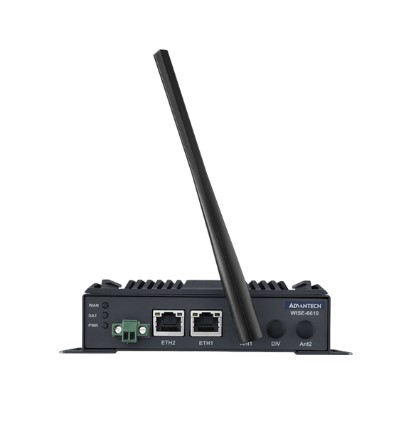

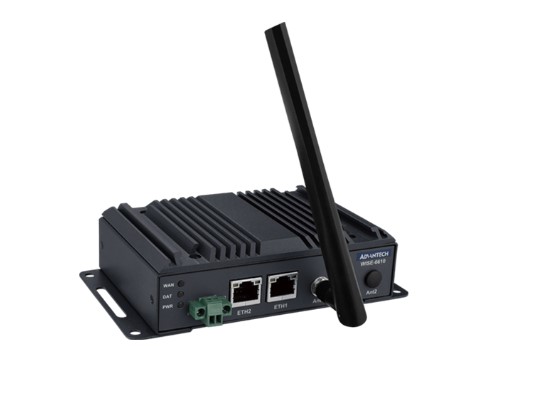

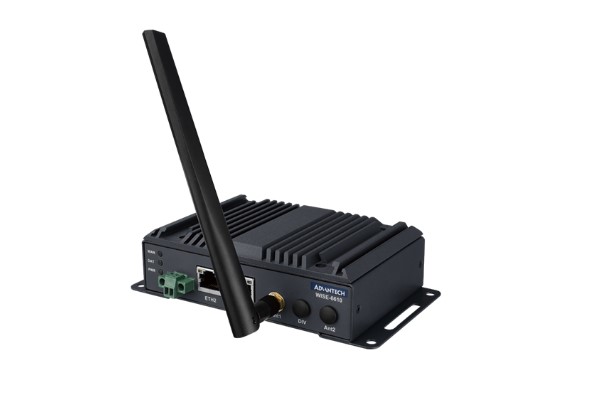

Advantech WISE-6610-EB, 16GB EMMC Industrial LoRaWAN Gateway with Advantech
Imagine a gateway that works in extreme temperatures, fits on a DIN rail, and still delivers fast Ethernet and cellular backup. That is what this Advantech device does. It is built for industrial IoT, so you can connect many LoRaWAN sensors and keep your data flowing even if power or network conditions change. If you need a stable link between remote devices and your control center, this gateway is the answer.
Key Features
- ARM Cortex-A8 CPU at 1 GHz for fast data processing.
- Semtech SX1302 RF chip supports up to 8 LoRa channels.
- 4 GB DDR3 memory and 16 GB eMMC storage for local buffering.
- 10/100 Mbps Ethernet with auto MDI/MDIX and two RJ45 ports.
- RP-SMA antenna connector with 2.23 dBi gain for EU868 band.
- IP30 enclosure, DIN-rail and wall mounting options.
- VPN, HTTPS, SSH, and firewall features for secure remote access.
- Support for DHCP, VLAN, QoS, BGP, OSPF, and other routing protocols.
- Node-RED and LoRaWAN Network Server software packages included.
- Micro-SD slot for extra storage and easy firmware updates.
Note: This EU868 MHz model is built for the UK/Europe and is completely incompatible with the USA.
Specifications
| System |
|
| CPU |
ARM Cortex-A8, 1000 MHz |
| RF Chip |
Semtech SX1302 |
| Memory |
4 GB DDR3 |
| Internal Storage |
16 GB eMMC |
| WSN Support (LoRaWAN) |
|
| Standard |
LoRaWAN |
| Network Mode |
AP/Repeater |
| Transmit Power |
13.94 dBm (CE) / 25.17 dBm (FCC) |
| Frequency Band |
EU868 ((863–870 MHz) |
| ANT Connector |
RP-SMA Male connector x 1 |
| Antenna Gain |
2.23 dBi (EU868 MHz) |
| LAN Interface |
|
| Ethernet |
10/100 Mbps, auto MDI/MDIX |
| Connector |
2 x RJ45 |
| Protection |
1.5 kV built-in magnetic isolation protection |
| General |
|
| LED Indicators |
PWR, DAT, WAN, ETH |
| Reboot Trigger |
Reset button |
| Software |
|
| Network & Routing |
DHCP server, NAT/PAT, VRRP, dynamic DNS client, DNS proxy, VLAN, QoS, DMVPN, NTP client/server,
IGMP, BGP, OSPF, RIP, SMTP, SMTPS, SNMP v1/v2c/v3, backup routers, PPP, PPPoE, SSL, port forwarding,
host port routing, Ethernet bridging, network server
|
| Configuration |
SSH, Web Browser |
| Network Security |
HTTPS, SSH, VPN tunnels, SFTP, DMZ, firewall (IP filtering, MAC address filtering, inbound/outbound port filtering) |
| VPN Tunneling |
OpenVPN client and server and P2P, L2TP, PPTP, GRE, EasyVPN, IPSec with IKEv1 and IKEv2 |
| Software Package |
Node-Red, LoRaWAN Network Server, Edgelink (only in -EL P/N) |
| Mechanics |
|
| Dimensions (W x H x D) |
150 x 37.5 x 83 mm (5.9" x 1.48" x 3.27") |
| Mounting |
DIN rail, wall |
| Weight |
500 g |
| Enclosure Rating |
IP30 |
| SD Card |
1 x Micro SD Card Slot |
| SIM Card |
2 x Nano SIM Card Slot |
| Power Requirements |
|
| Power Input |
9 ~ 36 VDC |
| Power Consumption |
Typ. 3W @ 24V (Max. 3.2W), Typ. 3W @ 12V (Max. 4W) |
| Environment |
|
| Operating Temperature |
-40 ~ 75°C |
| Storage Temperature |
-40 ~ 85°C |
| Operating Humidity |
10 ~ 95% RH |
