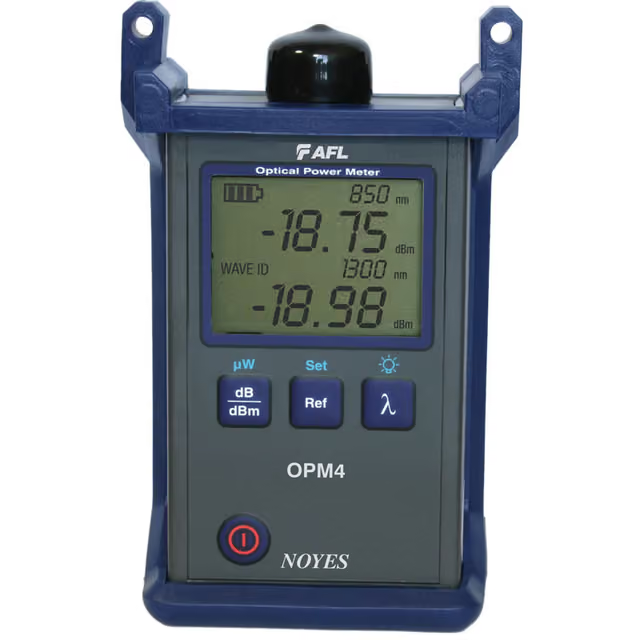

AFL OPM4-2D Optical Power Meter
AFL’s full range of power meters are used for testing single-mode and/or multimode fiber networks. Power meters with wave ID can detect two or more wavelengths simultaneously – decreasing test time and reducing user errors when paired with AFL wave ID light sources.
Designed for the real world: AFL’s power meters are designed to meet the demands of the outside plant environment. They withstand the one-meter drop test and have splash resistant controls that are easy to use, even with gloves on.
Flexible and efficient: A range of field-swappable output adapters enables access for cleaning optical ports and supports multiple connector styles. The efficient design provides long test time from globally available AA batteries. Equipped with five-minute auto-off feature to save power.
Features:
- Rugged, dependable, and backed by industry-best 5-year warranty
- Wave ID tests up to three wavelengths simultaneously - slashing test time
- Field-swappable connector adapters for maximum flexibility
- Long battery life from globally available AA batteries
Specifications
| Calibrated Wavelengths |
850, 1300, 1310, 1490, 1550 nm |
| Detector Type |
Germanium (Ge) |
| Measurement Range |
+6 to -60 dBm |
| Tone Detect Range |
+6 to -50 dBm
+6 to -45 dBm for 850 nm |
| Wavelength ID Range |
+6 to -50 dBm
+6 to -45 dBm for 850 nm |
| Accuracy |
±0.1 dB (typical); ±0.25 dB |
| Resolution |
0.01 dB |
| Measurement Units |
dB, dBm, μW |
| Power |
2 x AA batteries, accepts standard mini-USB power adapter |
| Adapter Caps |
Order with one: 1.25 mm Universal, 2.5 mm Universal, FC, SC, ST, LC. Other connector adapters available |
| Battery Life |
300 hours |
| Operating Temperature |
-10 °C to 50 °C, 95 % RH (non-condensing) |
| Storage Temperature |
-30 °C to 60 °C, 95 % RH (non-condensing) |
| Size (H x W x D) |
14.0 x 8.1 x 3.8 cm (5.5 x 3.2 x 1.5 in) |
