Upgrade your compact PC today with the Akasa AK-CC7129BP01, 7.5 cm, 600 RPM – 3000 RPM, Cooling Fans and feel the immediate boost in performance. This ultra‑compact cooler delivers powerful airflow while staying whisper‑quiet, making it the perfect upgrade for space‑constrained builds.

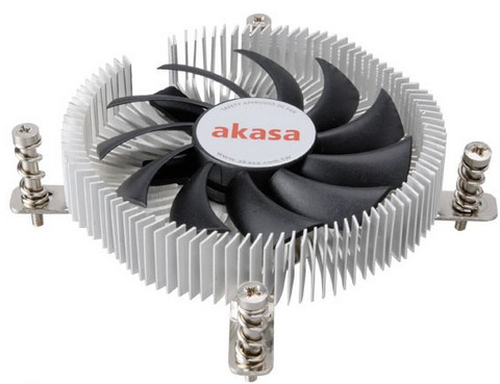

Akasa AK-CC7129BP01, 7.5 cm, 600 RPM - 3000 RPM, Cooling Fans
The low‑profile design fits thin mini‑ITX, HTPC and SFF cases without sacrificing cooling power. An aluminium heatsink with multi‑directional fins spreads heat quickly, while the embedded 8 cm PWM fan runs between 600 RPM and 3000 RPM for optimal temperature control.
Installation is hassle‑free thanks to pre‑applied spring‑loaded screws, a motherboard backplate, and high‑performance thermal compound. You can mount the cooler on Intel LGA775, LGA1150, LGA1155 and LGA1156 sockets with confidence.
With a maximum airflow of 23.45 CFM and a noise level as low as 30.75 dB, the fan keeps your CPU, motherboard and VRM cool while staying silent. Its 21 mm height and 154 g weight make it ideal for tight spaces.
Benefits
- Ultra‑compact 21 mm profile fits the smallest cases.
- Low noise operation (30.75 dB) ensures a quiet workspace.
- High MTBF of 50,000 hours guarantees long‑term reliability.
- Pre‑applied thermal compound and mounting hardware simplify installation.
Uses of the product
- Cooling Intel Core i3 and i5 processors in mini‑ITX builds.
- Silent operation for home theater PCs and media centers.
- Thermal management in small‑form‑factor workstations.
- VRM and motherboard cooling in compact gaming rigs.
Features
- Aluminium heatsink with multi‑directional fins for maximum heat dissipation.
- Embedded 8 cm PWM fan with twin ball bearing for long life and precise speed control.
- Dual mounting system compatible with LGA775, LGA1150, LGA1155 and LGA1156 sockets.
- 4‑pin connector and 12 V operation for easy integration with standard motherboards.
Specifications
| Performance |
| Mean time between failures (MTBF) |
50000 h |
| Maximum air pressure |
1.81 mmH2O |
| Maximum airflow |
23.45 cfm |
| Noise level (high speed) |
30.75 dB |
| Rotational speed (max) |
3000 RPM |
| Rotational speed (min) |
600 RPM |
| Compatible processor series |
Intel® Core™ i3, Intel® Core™ i5 |
| Supported processor sockets |
LGA 1156 (Socket H), LGA 1155 (Socket H2), LGA 1150 (Socket H3) |
| Fan diameter |
7.5 cm |
| Type |
Cooler |
| Suitable location |
Processor |
| Design |
| Material |
Aluminium |
| Power |
| Voltage |
12 V |
| Weight & dimensions |
| Weight |
154 g |
| Height |
21 mm |
| Depth |
87.2 mm |
| Width |
85.2 mm |
| Technical details |
| Bearing technology |
Double ball bearing |
| Other features |
| Connector(s) |
4-pin |
