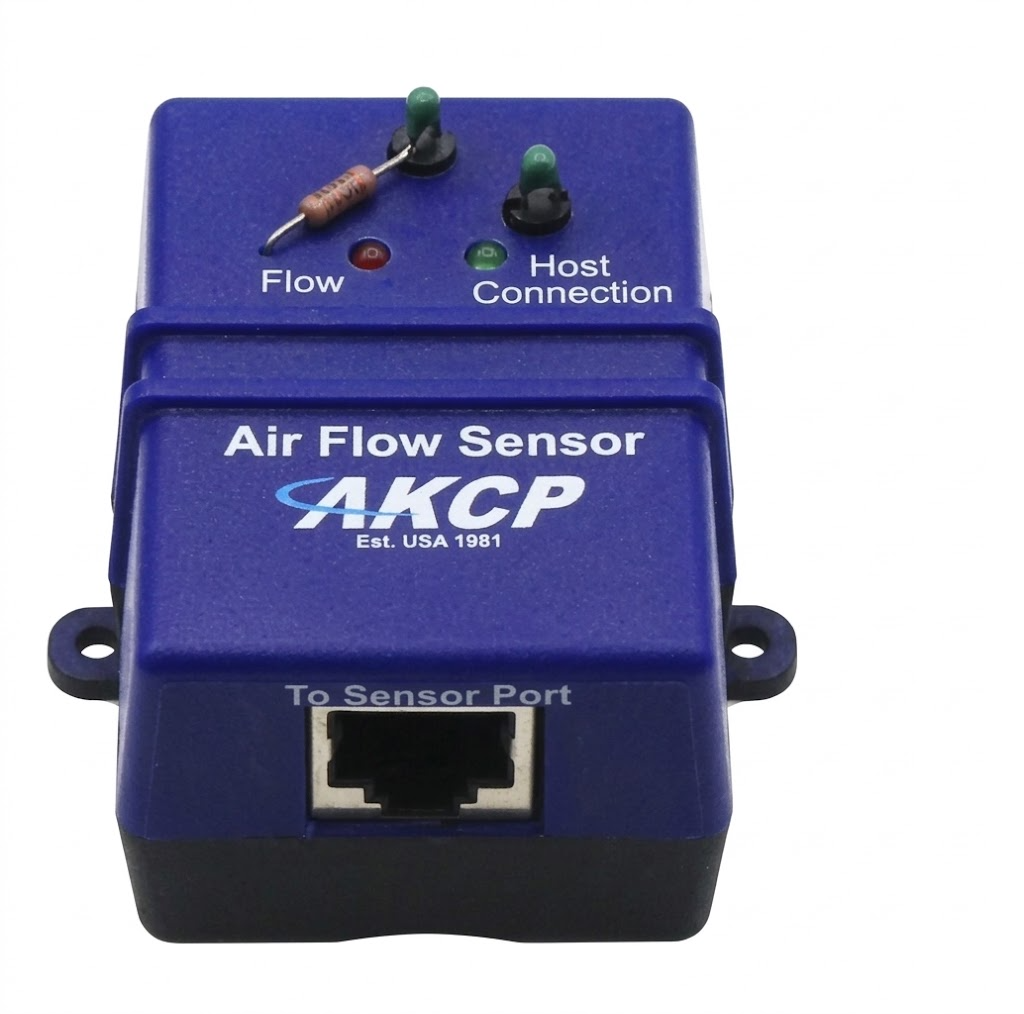

AKCP Airflow Sensor AFS00 – Professional Airflow Monitoring for Data Centers and Server Rooms
Continuous airflow monitoring in sensitive IT infrastructures such as data centers, server rooms, and telecommunications facilities is crucial for the safe operation of critical systems. The AKCP Airflow Sensor AFS00 offers a reliable and cost-effective solution for 24/7 airflow monitoring and ventilation control.
Technical Features of the AKCP AFS00 Airflow Sensor
The AFS00 airflow sensor is designed as an intelligent on/off switch sensor and primarily acts as an indicator for the presence or absence of airflow. Unlike precise air velocity meters, this sensor is intended for simple and reliable detection of airflow with adjustable threshold sensitivity.
Key Features of the Airflow Monitoring Technology
The thermistor-based sensor performs multiple measurements per second and provides immediate visual feedback through LED indicators for both operational status and connectivity. Its robust construction ensures reliable performance in industrial environments, with an operating temperature range from -20°C to 60°C.
Specifications
| Measurement Range |
Normal or Critical |
| Sensor Type |
Thermistor / On or Off |
| Measurement Rate |
Multiple readings every second |
| Indication |
LED for Status
LED for connectivity |
| Operating Temperature |
-20 °C~60 °C
4 °F~140 °F |
| Interface |
RJ-45 jack to sensor using UTP Cat 5 wire |
| Communications Cable |
The AirFlow Sensor can be extended from the RJ-45 Intelligent Sensor ports on the base units up to 60 feet, or 18 meters using standard CAT5/6 LAN cable |
| Communications Cable Max. length |
60 feet, or 18 meters |
| Power Source |
Powered by the controller unit. No additional power needed |
| Power Source |
Full autosense including disconnect alarm |
| Power Consumption |
Typical 430 mWatt, 85mA |
| Dimensions |
56 x 55 x 33.3 mm |
| Mounting |
DIN rail mounting; Screw mounting |
| Sensor count |
1 |
