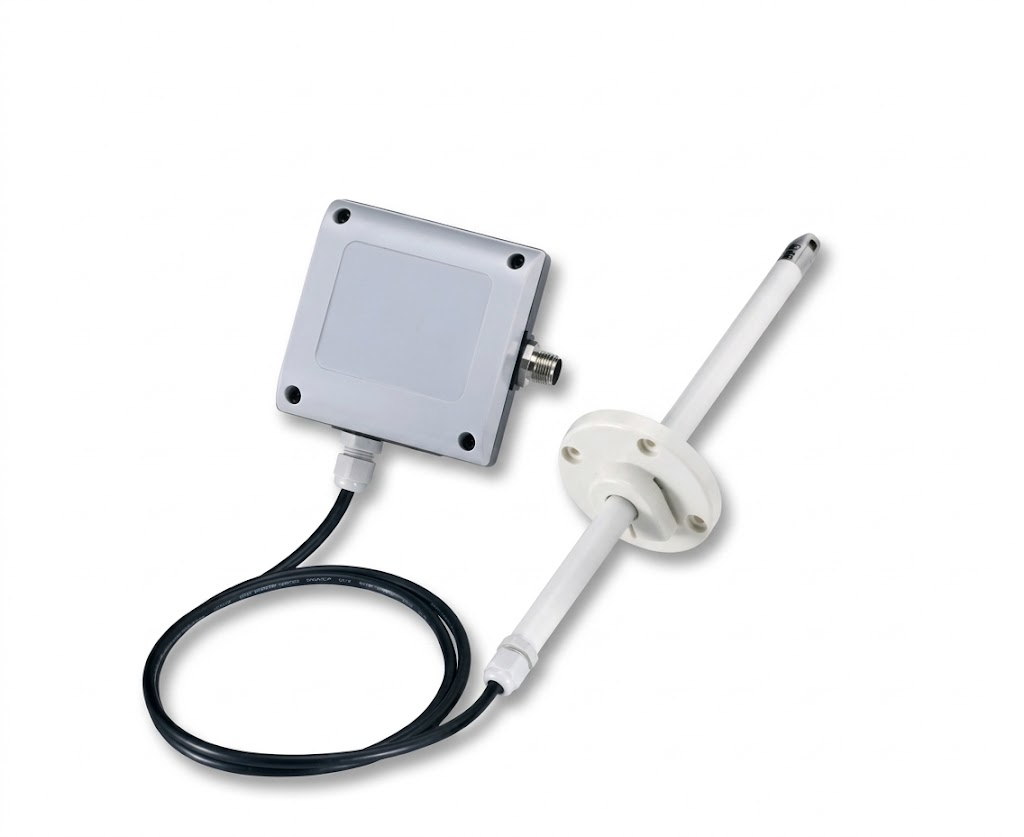

AKCP AVT00 Air Velocity Transmitter Sensor
The AKCP Air Velocity Transmitter is designed for systems that generate heat, and a steady flow of air is necessary to dissipate this in order to maintain system reliability and safety.
The Air Velocity Transmitter sensor is placed in the path of the air stream, where the user can monitor the status and the amount of the flowing air. The sensorProbe or securityProbe web interface shows this information using a percentage and graphical display. In addition to an on/off indication, it also graphs the analog values over a period of time. If, for example, the air flow decreases, the web interface will show an indication of change over time.
In addition to the web interface readings, the sensor has its own SNMP OID for alarm/normal status and to get the current analog value. SNMP traps are sent when critical. Polling via SNMP get is also available.
Features:
- On/Off and % threshold alarm signal for airflow
- Airflow data graphically displayed over time
- Accurate, cost-effective flow measurement
- Includes duct mounting bracket
- Base unit automatically detects presence of airflow sensor
- Up to 2 airflow sensors per sensorProbe2, 8 per sensorProbe8 and securityProbe
- Air Velocity Transmitter can be extended to desired cable length with CAT5 extension cables, up to 60 feet
Specifications
| Data Display |
Data graphically displayed via a web page |
| Data Collection |
Via network management |
| Operating Temperature |
0°C to 50° C |
| Measurement Rate |
One reading each second, data logging once per minute |
| Communication Cable |
RJ45 jack to sensorProbe |
| Sensor Type |
Thermal Flow Chip |
| Sensor Power |
24 VDC ±10% (power adapter included) |
| Current Consumption |
Typical 150mA |
| Installation Method |
For Duct-mounting |
| Housing Material |
PC fire-proof type |
| Housing Dimensions |
80mm x 80mm x 38mm |
| Weight |
147g |
| Probe Length |
224mm |
| Probe Material |
Stainless Steel |
| Trap Information |
Warning sensor number, Sensor description, Airflow (%) |
