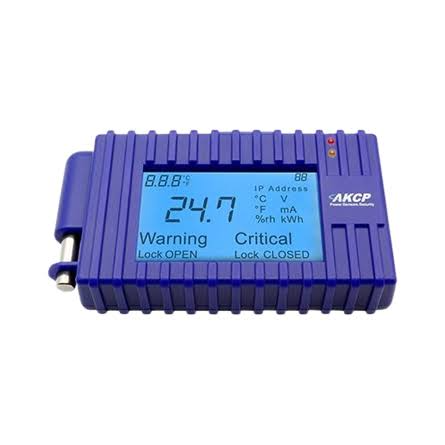

AKCP (LCD-TMP) Programmable Sensor LCD Display
The AKCP Programmable Sensor Display plugs into any sensorProbe+ (SP1+, SP2+, SPX+) base unit and can be programmed to display the data from any AKCP Intelligent or virtual sensor. Mount a single display on the end of an aisle for data center monitoring, or warehouse monitoring. Place on the door of every cabinet, or the wall of the room. LED indicators alert if a sensor is in critical condition, as well as the on-screen display of the critical or warning status.
Features:
- Easy to read, high quality backlit LCD display
- Connects to available sensor port on sensorProbe+
- Program to display specific sensors
- Keyhole mounting
- LED Status indicator
Specifications
| Temperature |
|
| Measurement Range |
-40°C to +75°C
-40°F to +167°F |
| Measurement Resolution |
0.1°C increments
0.2°F increments |
| Measurement Accuracy |
Maximum ±0.3 at -40ºC, minimum ±0.3 at +25ºC and ±0.3 at +75ºC
Maximum ±0.6 at -40ºF, minimum ±0.6 at +25ºC and ±0.6 at +167ºF |

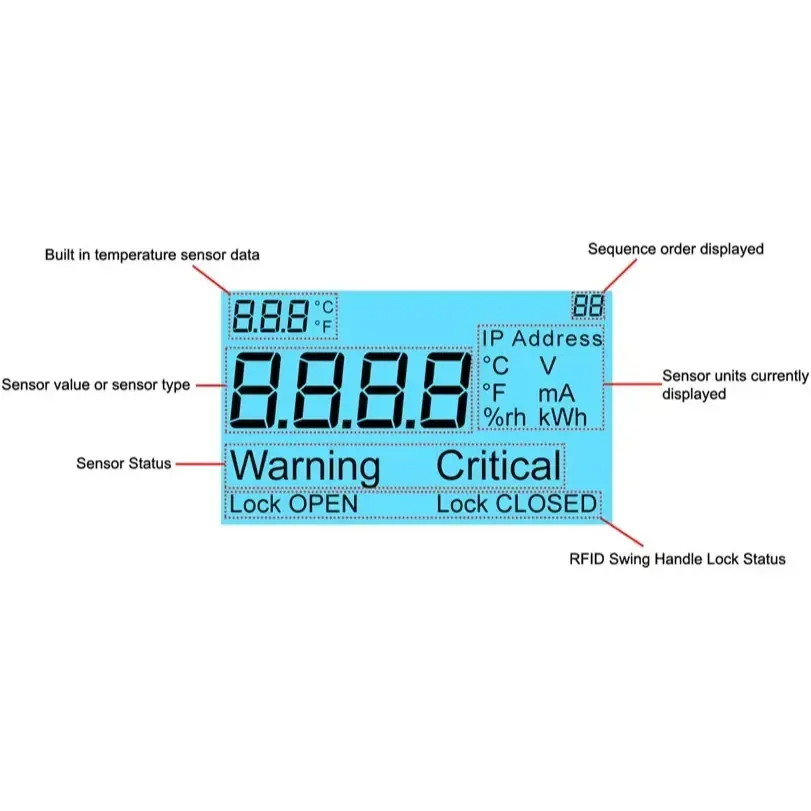

| Display |
|
| LCD Display data |
Continuous embedded temperature display
Display up to 8 sensors in stnadard rotation list, configured via SP+ web itnerface with preview.
Display sensor status, Warning or Critical
Display sensor units: °C, °F, %rh, %, V, (m)A, (k)W, (k)Wh
Display unit’s IP address when plugged in
Display swing handle lock status: Open, Closed
Blue backlight |
| LCD size |
88.95 x 53.42 mm |
| LED Indicator |
2 global status LEDs : Warning and Critical status |
| Interface |
|
| Interface |
RJ-45 jack to sensor using UTP CAT5e/6 cable |
| Communications cable |
UTP CAT5e/6 cable |
| Power source |
Powered by the sensorProbe+ familiy units. No additional power needed |
| Power Consumption |
Typical 220 mWatt, 40 mA |
| Maximum Cable Length |
Run length is 30 feet (10 meters) with approved low capacitance shielded cable or UTP |
| Physical |
|
| Dimensions |
169.67 x 97.1 x 31.18 mm |
| Mounting |
Keyhole mounting |
| Important note |
The Programmable LCD Sensor Display is only compatible with the sensorProbe+ platform units.
When plugging the first time or after upgrading a sensorProbe+ unit, the sensor firmware might be upgraded by the unit and not be available right away.
On the sensorProbeX+, the sensor firmware can be upgraded only on the main module sensor ports
|
