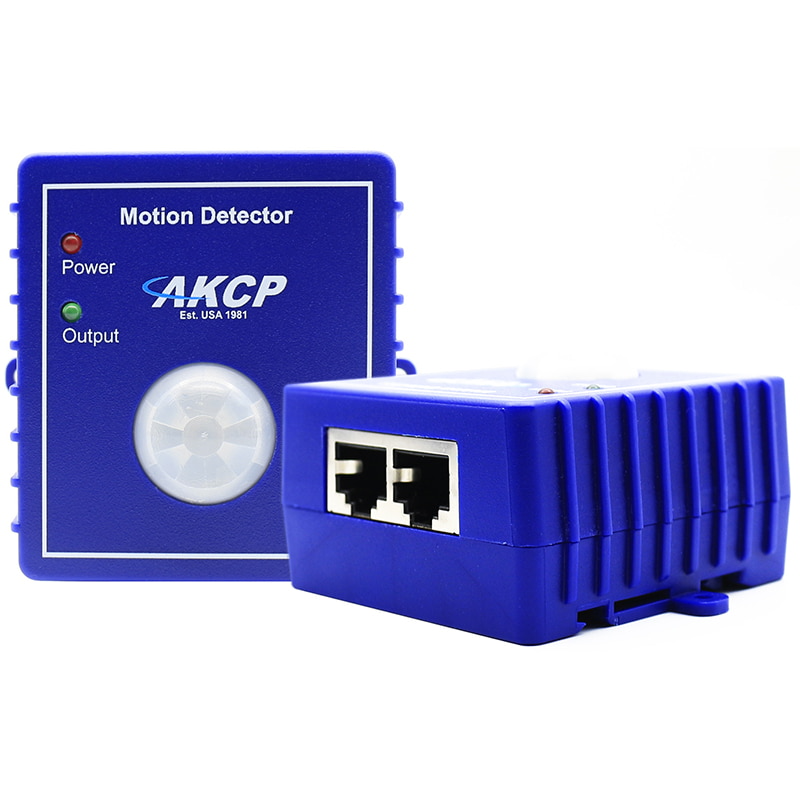

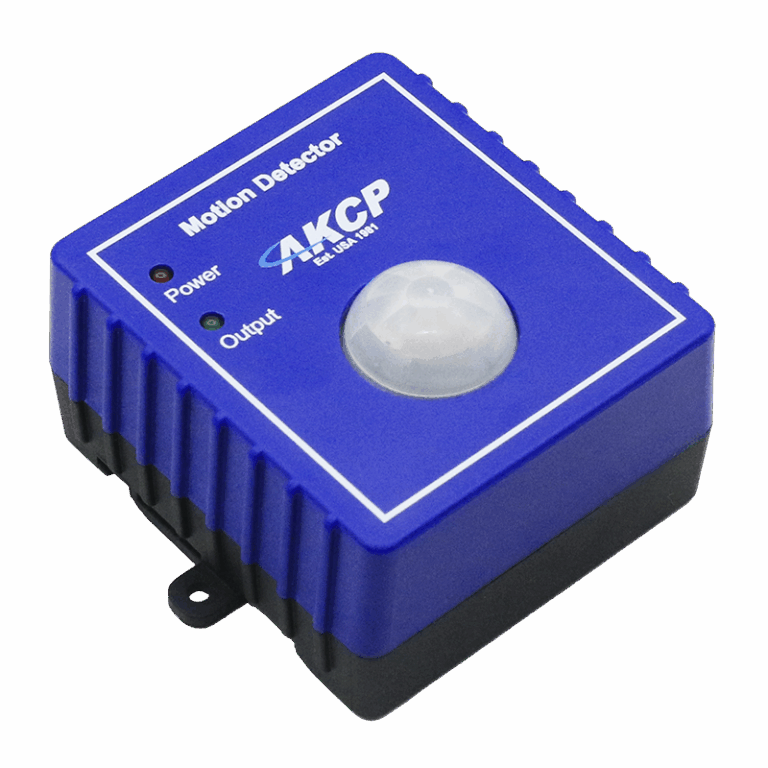

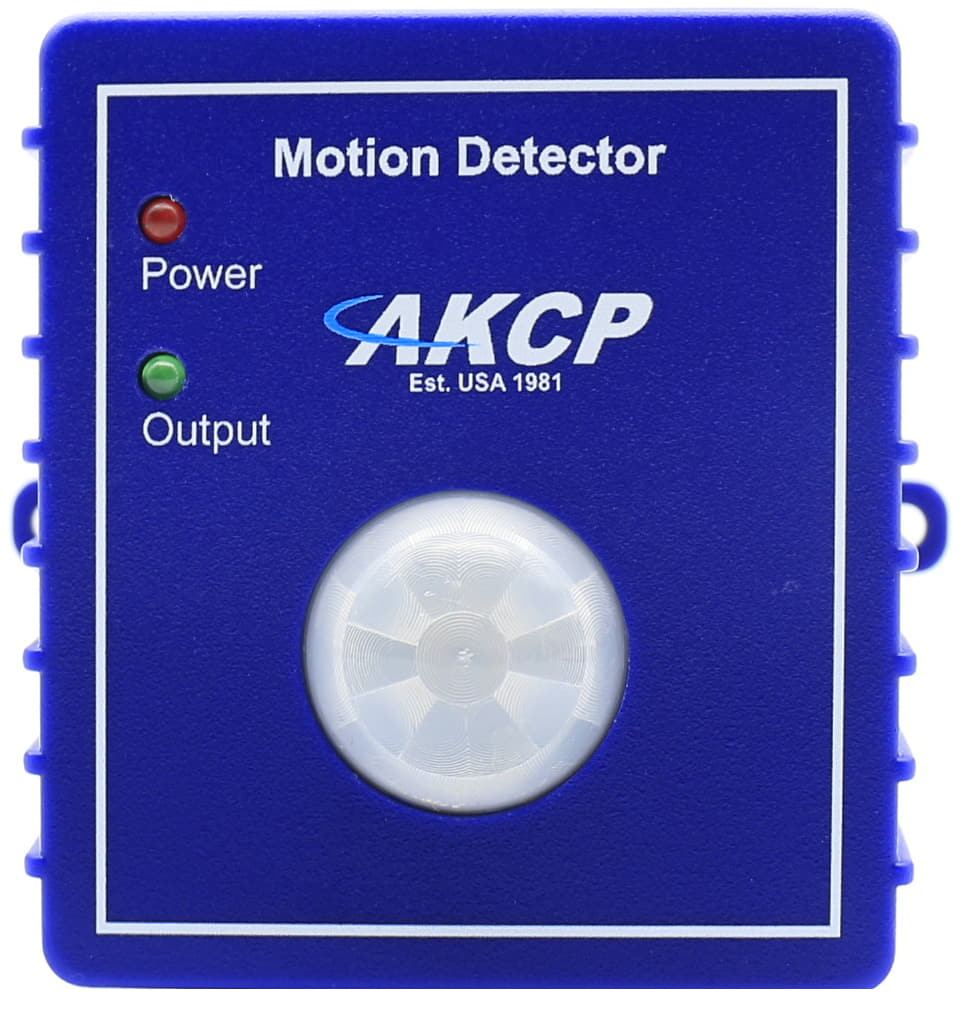

The AKCP PIR Hardware Motion Detector is the perfect accompaniment as part of your security monitoring system. Its unique design allows mounting in either ceiling or walls and characterizes the optimum detection angle to prevent false alarms.
Although compatible with both sensorProbe+ and securityProbe series, it is ideally suited to the securityProbe product line. When combined with the securityProbe 5E’s notifications, cameras and security sensor it provides a complete network enabled security monitoring system.
When motion is detected notifications can be sent from the securityProbe 5E via SMS, E-mail or MMS (amongst others) and even have pictures from installed cameras attached to give instant visual feedback as to the developing situation.
Features
- Wall/ceiling mounted design
- 60º detection angle
- High RFI immunity
- Powered by base unit, no additional power required
- Up to 10 Motion Detector Sensors on a single port
Specifications
| Measurement range |
|
| Measurement Range |
Alarm or Normal |
| Sensor type |
|
| Sensor Type |
Infrared sensor dual element |
| Sensitivity |
High sensitivity |
| Detection angle |
60° |
| Maximum working distance |
3 m (9 Ft) |
| RFI immunity |
High RFI immunity |
| Daisy chain |
|
| Daisy Chainable |
Up to 10 Motion Detector Sensors on a single port |
| Interface |
|
| Interface |
RJ-45 jack to sensor using UTP Cat 5 wire |
| Operating environment |
|
| Operation Temperature |
-20 °C~50 °C / 4 °F~122 °F |
| Communications cable |
|
| Communications Cable |
With approved low capacitance shielded cable or UTP |
| Communications Cable Max. length |
Maximum cable length of single motion detector sensor is 300 m (100 Ft) |
| Communications Cable Max. length |
Maximum total cable length of a string of 10 motion sensors is 46 m (150 Ft) |
| Communications Cable Max. length |
Maximum length of cable between each motion sensor should less than 6 m (20 Ft) |
| Power |
|
| Power Source |
Powered by the controller unit. No additional power needed |
| Power Source |
Full autosense including disconnect alarm |
| Power Consumption |
Typical 50 mWatt, 10mA |
| Physical |
|
| Dimensions |
65(W) x 62(H) x 15(D) mm |
| Weight |
|
| Mounting |
Wall/ceiling mounted design; DIN rail mounting; Screw mounting |
| Sensor count |
1 |
