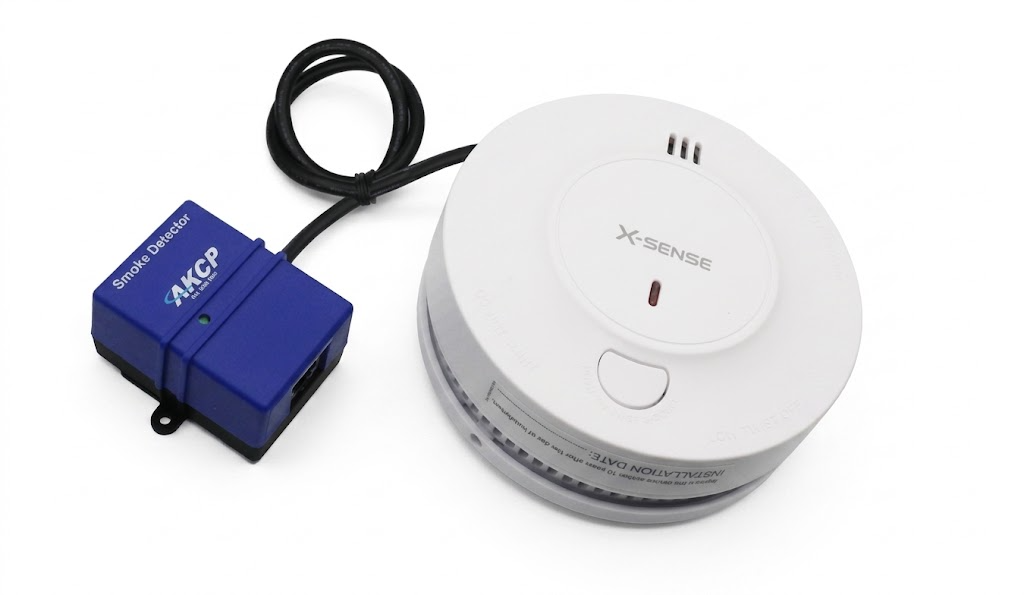

AKCP Smoke Sensor SK00 - Professional Fire Protection for Critical Infrastructures
The SNMP-enabled Smoke Sensor SK00 from AKCP is specially designed for early fire detection in mission-critical environments. Server rooms, data centers, production sites, and warehouses can be completely destroyed by fire within minutes, leading to catastrophic economic and legal consequences.
Fire Risks in Critical Infrastructures
- Negligent or intentional arson
- Technical defects (faulty power supplies, server overheating)
- Lightning strikes and electrical surges
- Overheating of air conditioning and UPS systems
- Spontaneous combustion due to faulty wiring
- Short circuits and electrical faults
Since not every company has mirrored server rooms or redundant infrastructures, besides significant economic damage due to costly downtimes, legal consequences due to data loss or compliance violations may also arise.
Sensor Features:
- Sensor type: Photoelectric smoke detector
- Detection range: Smoke / No smoke (binary detection)
- Operating temperature: -20°C to 60°C (-4°F to 140°F)
- Alarm sound: 85dB at 3 meters distance
- Dimensions: Diameter 130mm, Height 51mm
- Power consumption: 290 mW (58mA)
Safety Features:
- Full function test button
- Automatic alarm reset
- Insect-resistant sensing chamber
- Low profile for optimal ceiling mounting
- Complies with UL 217 standard and BS 5839 pt 6 Grade F
- LED status indicator and strobe light on smoke detection
Specifications
| Measurement Range |
Smoke or No Smoke |
| Sensor Type |
Photoelectric Detector Type, Suitable for installation to BS 5839 pt 6 Grade F |
| Output Type |
Open/Closed contact switch |
| Features |
Loud piercing 85db alarm at 3m
Full function test buttonAlarm auto-reset
Insect resistant chamber
Low profile design for ceiling mounting for maximum smoke detection
Conforms to UL 217 standard |
| Measurement Rate |
Multiple readings every second |
| Indication |
LED for StatusStrobe Light when Smoke is detected |
| Operating Temperature |
-20 °C~60 °C4 °F~140 °F |
| Interface |
RJ-45 jack to sensor using UTP Cat 5 wire |
| Communications Cable |
The Spot Water Sensor can be extended from the RJ-45 Intelligent Sensor ports on the base units up to 500 feet, or 150 meters using standard CAT5/6 LAN cable |
| Communications Cable Max. length |
500 feet, or 150 meters |
| Power Source |
Interface module powered by the base unit
Internal battery inside smoke detector. |
| Power Consumption |
Typical 290 mWatt, 58mA |
| Dimensions |
Diameter 130mm, height 51mm |
| Mounting |
Screw mounting |
| Sensor count |
1 |
