AKCP Thermal Map Sensor – Professional Temperature Monitoring for Data Centers
The ongoing digitalization and the continuously growing demand for data center capacities make reliable temperature monitoring a critical success factor. The AKCP Thermal Map Sensor offers a highly advanced solution for the precise monitoring of temperature differentials in server cabinets, making it an indispensable tool for modern data center monitoring.
Intelligent Temperature Monitoring for Maximum Operational Safety
The thermal sensor from AKCP was specifically developed for the requirements of professional server room monitoring. With its innovative configuration of strategically positioned temperature sensors, the system continuously captures the critical measurement points of a server cabinet. The sensors are installed at the neuralgic positions – top, in the middle and at the bottom as well as at the front and rear in the cabinet – to ensure comprehensive thermal monitoring.
This precise arrangement enables monitoring of both the intake and exhaust air temperatures, while identifying critical temperature differentials between the front and rear of the cabinet. Such temperature differences are crucial indicators of cooling efficiency and can provide early warning of potential problems before costly failures occur.
THMS-V2: Compact Solution for Basic Monitoring

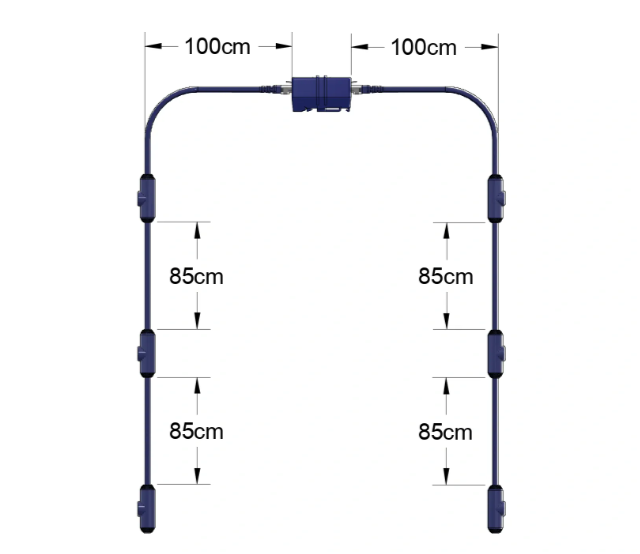

The THMS-V2 represents the basic variant of the Thermal Map Sensors and is equipped with four high-precision temperature sensors. This compact solution is ideally suited for smaller installations or as an entry into professional temperature monitoring. The sensors are operated with a single cable string and can monitor either the front or the rear side of the server cabinet.
With its four measurement points, the THMS-V2 captures the temperatures at the critical positions – top, in the middle and at the bottom – and delivers precise measurements with a resolution of 0.1°C. The measurement accuracy of ±0.5°C in the range from -10°C to +75°C ensures reliable data acquisition for most server room applications.
Set:

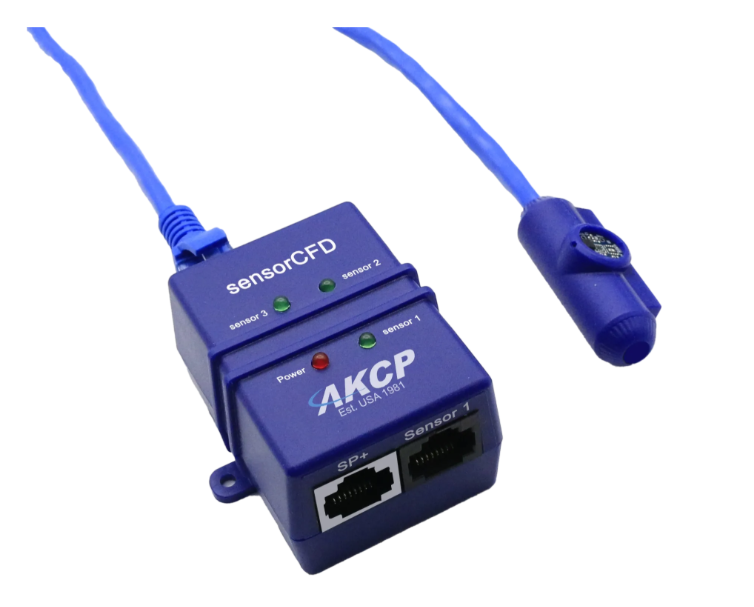

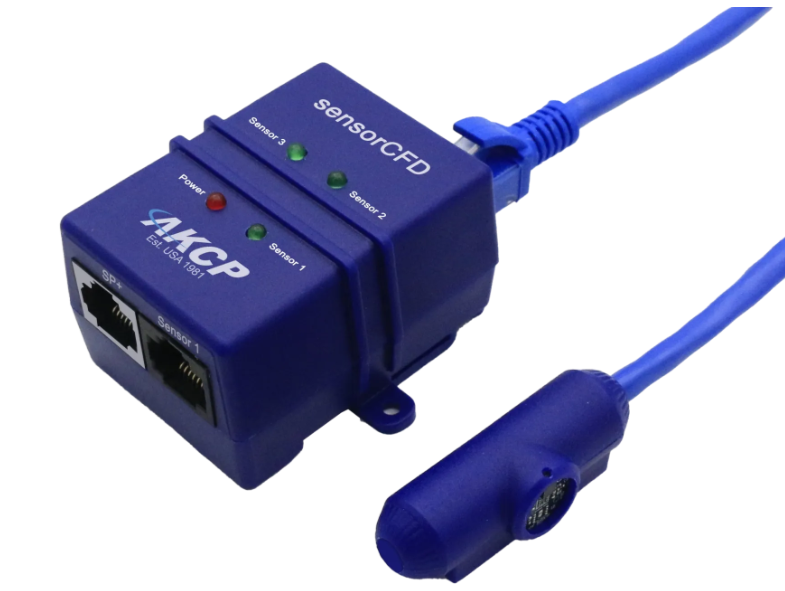

Temperature and Humidity Map Sensor String of 3x Temperature and 1x Humidity sensor Pre wired for easy installation.
Specification
| Dual Temperature Measurement |
|
| Measurement Range |
-40°C to +75°C
-40°F to +167°F |
| Measurement Resolution |
0.1°C steps
0.2°F steps |
| Measurement Accuracy |
Maximum ±0.3°C at -40°C, minimum ±0.3°C at +25°C and ±0.3°C at +75°C
Maximum ±0.6°F at -40°F, minimum ±0.6°F at +25°F and ±0.6°F at +167°F |
| Dual Humidity Measurement |
|
| Measurement Range |
0 to 100% Relative Humidity |
| Resolution |
1% RH steps, 0.01% RH sensor reading |
| Accuracy at 25°C |
±2% RH |
| Single Temperature Measurement |
|
| Measurement Range |
-40°C to +75°C
-40°F to +167°F |
| Measurement Resolution |
0.1°C steps / 0.2°F steps |
| Measurement Accuracy |
±0.5°C accuracy from -10°C to +75°C
±0.9°F accuracy from +14°F to +167°F |
| Communications Cable |
RJ-45 socket to sensor via UTP CAT5e/6 cable |
| Power Source |
Powered by the sensorProbe+ device family. No additional power supply required |
| Power Consumption |
Typically 75 mWatt, 15 mA |
| Maximum Cable Length |
Sensor can be extended up to 60 feet or 18 meters from the RJ-45 Intelligent Sensor Ports of the base units using standard CAT5/6 LAN cable.
SensorProbe+ units automatically detect the presence of the Cabinet Thermal Map Sensor |
| Dimensions |
75 x 55 x 27 mm |
| Mounting |
VHB adhesive tape, magnetic (optional) |
| Components |
Manufactured using highly integrated, low-power surface mount technology to ensure long-term reliability |
| Operating Environment, Temperature |
Min. -35°C – Max. 80°C |
| Operating Environment, Humidity |
Min. 20% – Max. 80% (non-condensing) |
| Sensor Count |
THMS-V2 : 4 |
