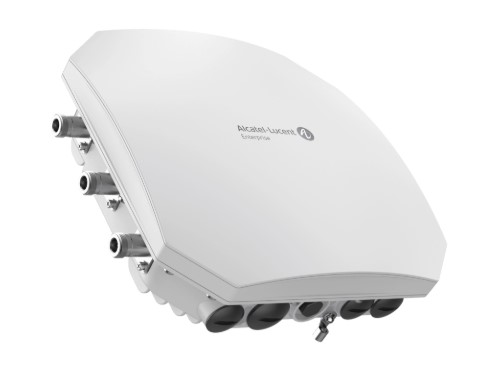

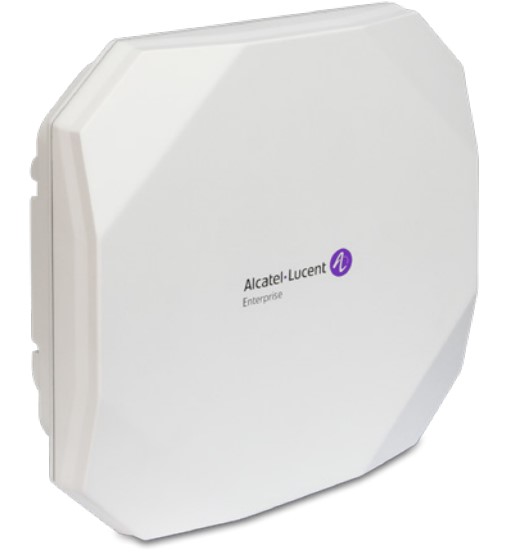

Alcatel-Lucent OmniAccess Stellar AP1571 Outdoor Wi-Fi 7 Access Point
Alcatel-Lucent OmniAccess Stellar AP1571 is a high-performance Wi-Fi 7 Access Point designed for outdoor wireless deployments requiring fast, reliable, and scalable connectivity. Its tri-radio, tri-band architecture provides 2x2:2 operation across 2.4GHz, 5GHz, and 6GHz, supporting modern 802.11be client devices and demanding wireless applications.
The AP1571 delivers wireless data rates of up to 5.76Gbps on 6GHz, 2.882Gbps on 5GHz, and 688Mbps on 2.4GHz. The 6GHz radio is software configurable to support 5GHz operation in RF domains where 6GHz is not permitted, providing additional deployment flexibility across different regulatory environments.
For wired connectivity, the Alcatel-Lucent Wi-Fi 7 Access Point provides a multi-gigabit Eth0 combo interface supporting 100M/1G/2.5G/5G/10G through RJ-45 or SFP/SFP+, along with a 1GE uplink/downlink port. IEEE 802.3bz, IEEE 802.3az, MACsec, USB 2.0 Type-C, and PoE support provide flexible connectivity and power options for professional outdoor networks.
The AP1571 includes integrated omni antennas with horizontal and vertical polarization, offering maximum antenna gains of 5.8dBi at 2.4GHz, 8.0dBi at 5GHz, and 6.2dBi at 6GHz. Security features include TPM 2.0, dedicated scanning radio, WPA2, WPA3, 802.1X, AES, firewall ACL, wIPS/wIDS, DPI application policy enforcement, portal authentication, and MACsec.
Built for challenging outdoor conditions, the AP1571 operates from -40°C to 65°C with 10% to 90% non-condensing humidity. It supports sustained winds up to 100MPH and wind gusts up to 165MPH, while hang/downtilt mounting enables flexible outdoor installation. With support for up to 16 SSIDs per radio and up to 768 associated clients per AP, it is suitable for high-density outdoor wireless deployments.
Key features
-
Outdoor Wi-Fi 7 802.11be tri-radio, tri-band access point
-
2x2:2 radios on 2.4GHz, 5GHz, and 6GHz
-
Up to 5.76Gbps wireless data rate on 6GHz
-
Multi-gigabit 100M/1G/2.5G/5G/10G Eth0 combo port
-
RJ-45 or SFP/SFP+ uplink connectivity
-
IEEE 802.3at/bt PoE support
-
Integrated omni antennas with up to 8.0dBi gain
-
Supports up to 768 associated clients per AP
Specifications:
| AP Type |
Indoor Wi-Fi 7(802.11be) |
| Radio Specification |
Tri Radio, Tri Band: 6 GHz High 2x2:2, 5 GHz 2x2:2, and 2.4 GHz 2x2:2 |
| 6 GHz |
2x2:2 up to 5.76Gbps wireless data rate to individual 2SS EHT320 802.11be client devices. This radio is Software configurable, supporting 5GHz operation in some Radio-Frequency domains where the use of 6GHz band is not allowed. |
| 5 GHz |
2x2:2 up to 2.882Gbps wireless data rate to individual 2SS EHT160 802.11be client devices. |
| 2.4 GHz |
2x2:2 up to 688Mbps wireless data rate to individual 2SS EHT40 802.11be client devices. |

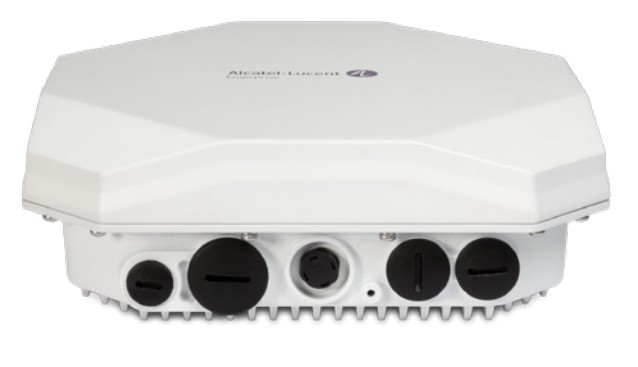

| Interfaces |
1 x multi-gigabit 100M/1G/2.5G/5G/10G IEEE 802.3bz compliant autosensing (RJ-45) or SFP/SFP+ uplink combo port Eth0. Power over Ethernet (PoE) 802.3bt compliant. IEEE 802.3az Energy-Efficient Ethernet (EEE). MACsec. 1 x 1GE uplink/downlink port, PSE 802.3at. 1 x USB 2.0 Type C (5V, 1A). Reset button: Factory reset |

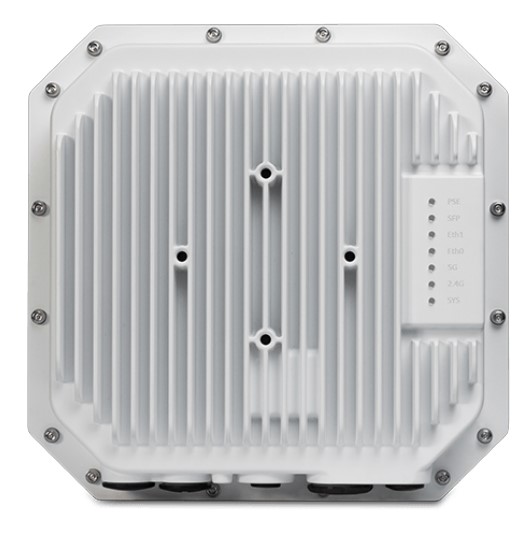

| Visual Indicators (7 LEDs) |
For system and radio status |
| SYS ON |
Power on and system running |
| SYS Flashing |
Bootloader-OS loading or upgrading |
| 2.4G ON |
2.4GHz SSID created and running |
| 5G/5G_L ON |
5GHz all or 5GHz Low SSID created and running. |
| 6G/5G_H ON |
6GHz or 5GHz High SSID created and running |
| Eth0/SFP+ ON |
Green ON - Ethernet0 link UP; Green Blinking - Ethernet0 transmitting data; Yellow ON - SFP+ linkup |
| Eth1 ON |
Ethernet1 link UP; Eth1 Blinking - Ethernet0 transmitting data |
| PSE ON |
PSE Enabled |
| Security |
Integrated Trusted Platform Module (TPM 2.0) for secure storage of credentials and keys; Dedicated Scanning Radio for Wireless Protection; 802.11i, WPA2, WPA3, Enterprise with CNSA option, Personal (SAE); 802.1X; WEP, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP); Firewall: ACL, wIPS/wIDS and DPI application policy enforcement with OmniVista; Portal page authentication; MACsec Eth0 |
| Antenna |
2×2:2 @ 2.4GHz, 2x2:2 @ 5GHz, 2x2:2 @ 6GHz/5GHz, software configurable if RF domain does not allow the use of 6GHz |
| Integrated Antennas |
Integrated omni antennas (H and V polarized) with maximum antenna gain of 5.8dBi in 2.4 GHz, 8.0dBi in 5 GHz and 6.2dBi in 6Gz |
| Power |
Supports Power over Ethernet (PoE) |
| PoE |
IEEE 802.3at/bt compliant source |
| Maximum Power Consumption |
50W (single input IEEE 802.3bt POE); 25W (single input IEEE 802.3at POE): Uplink/Downlink port disabled; No PSE; USB port disabled; Uplink port set to 5Gbps |
| Mounting |
Hang/Downtilt mounting for AP1571 (Mount kit needs to be ordered separately) |
| Operating Temperature |
-40°C to 65°C (-40°F to +149°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Storage and Transportation Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Wind Resistance |
Up to 100MPH sustained winds; Up to 165MPH wind gusts |
| Dimensions/Weight — Single AP excluding packing box and accessories |
243mm (W) x 243mm (D) x 85mm (H) -9.56” (W) x 9.56” (D) x 3.34” (H); 2500g / 5.51lb |
| Dimensions/Weight — Single AP including packing box and accessories |
320mm (W) x 300mm (D) x 135mm (H) -12.6” (W) x 11.81” (D) x 5.31”(H); 3121g / 6.88lb |
| Reliability |
MTBF: 748,972h (85.5 years) at +25ºC operating temperature |
| Capacity |
Up to 16 SSID/Radio. Support for up to 256 associated per radio. Support for 768 associated clients per AP1570 |
