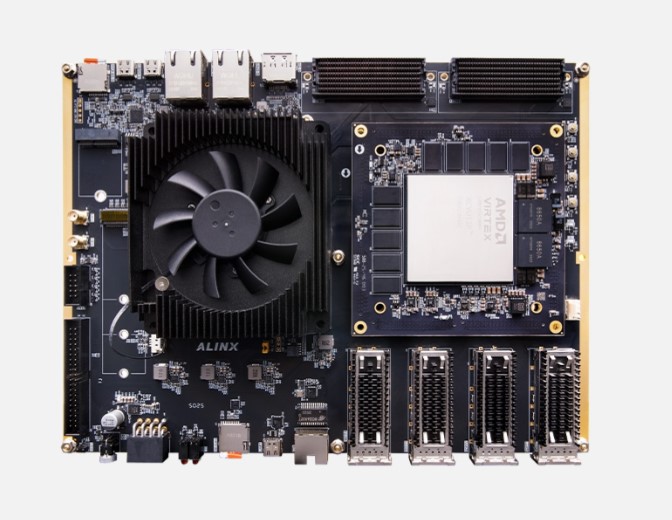

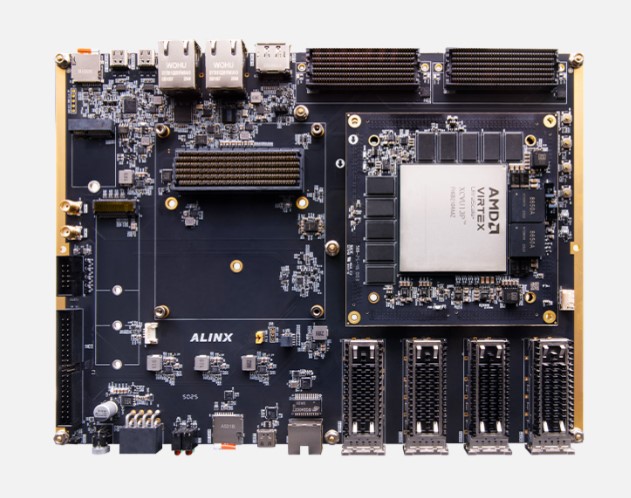

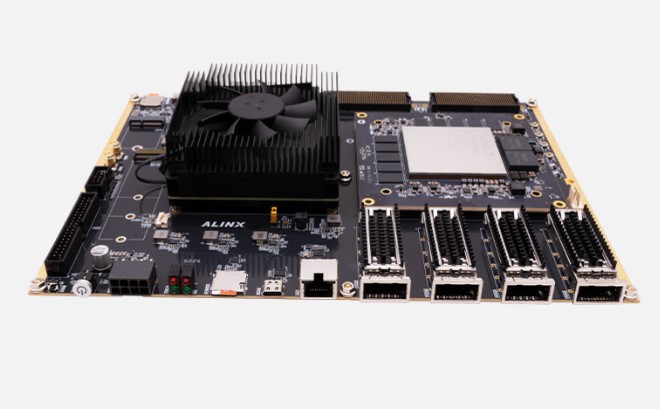

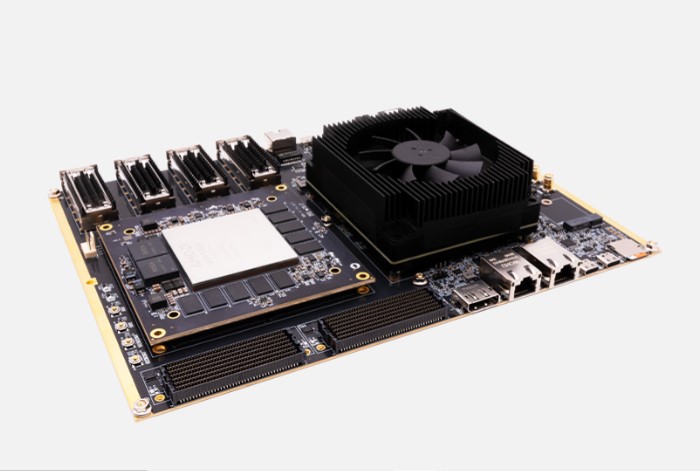

ALINX Virtex UltraScale+ HEA13, FPGA Development Board & Kit

Designing high-performance hardware can be slow and costly. Engineers often wait weeks for a board that can handle large data streams, and that delay pushes product launches back. When time-to-market matters, every extra day hurts revenue and customer trust. The ALINX Virtex UltraScale+ HEA13 board gives you a ready-to-run FPGA platform, so you can start testing and coding immediately and avoid long hardware waits.

ALINX Virtex UltraScale+ HEA13, FPGA Development Board & Kit with ALINX

Meet the board that turns complex FPGA projects into a simple start-up. This kit packs an AMD/Xilinx Virtex UltraScale+ XCVU13P chip, high-speed Ethernet, QSFP28 optics and optional NVIDIA Jetson support. If you need to prototype a data-center accelerator, a 5G base-band, or an AI edge device, this board removes the guesswork. ALINX provides the tools and documentation that let you move from concept to demo in days, not months.

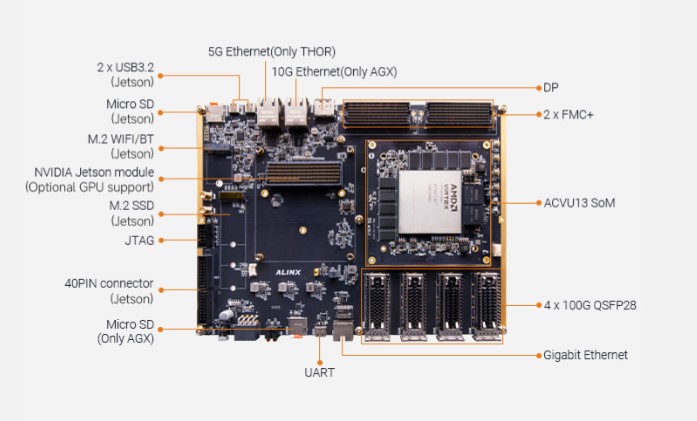

Key Features

• AMD/Xilinx Virtex UltraScale+ XCVU13P-2FHGB2104I FPGA
• Design-in kit for immediate prototyping
• 1 Gigabit Ethernet port
• 1 x 5 GbE (THOR) and 1 x 10 GbE (AGX) options
• 4 x 100 Gbps QSFP28 optical interfaces
• 1 DisplayPort video output
• 2 FMC+ expansion connectors
• ACVU13 System-on-Module for added processing power
• Optional NVIDIA Jetson module for GPU acceleration
• 2 USB 3.2 ports (Jetson models)
• M.2 SSD and micro-SD storage options
• JTAG debug and UART serial interfaces

Specifications
