When a factory or a building needs reliable power for its control panels, a weak or unstable supply can cause costly downtime. The loss of power can stop machines, create safety risks, and delay production schedules. The Allen-Bradley 1606-XLS480E Performance Power Supply delivers steady 24-28 V DC with built-in protection, so your equipment stays running and you avoid expensive interruptions.

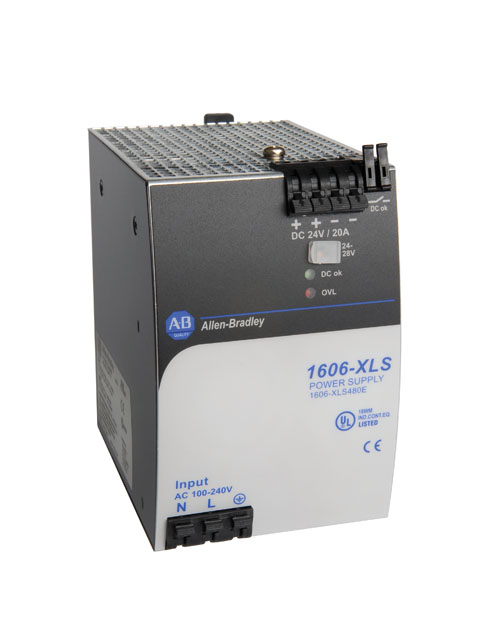

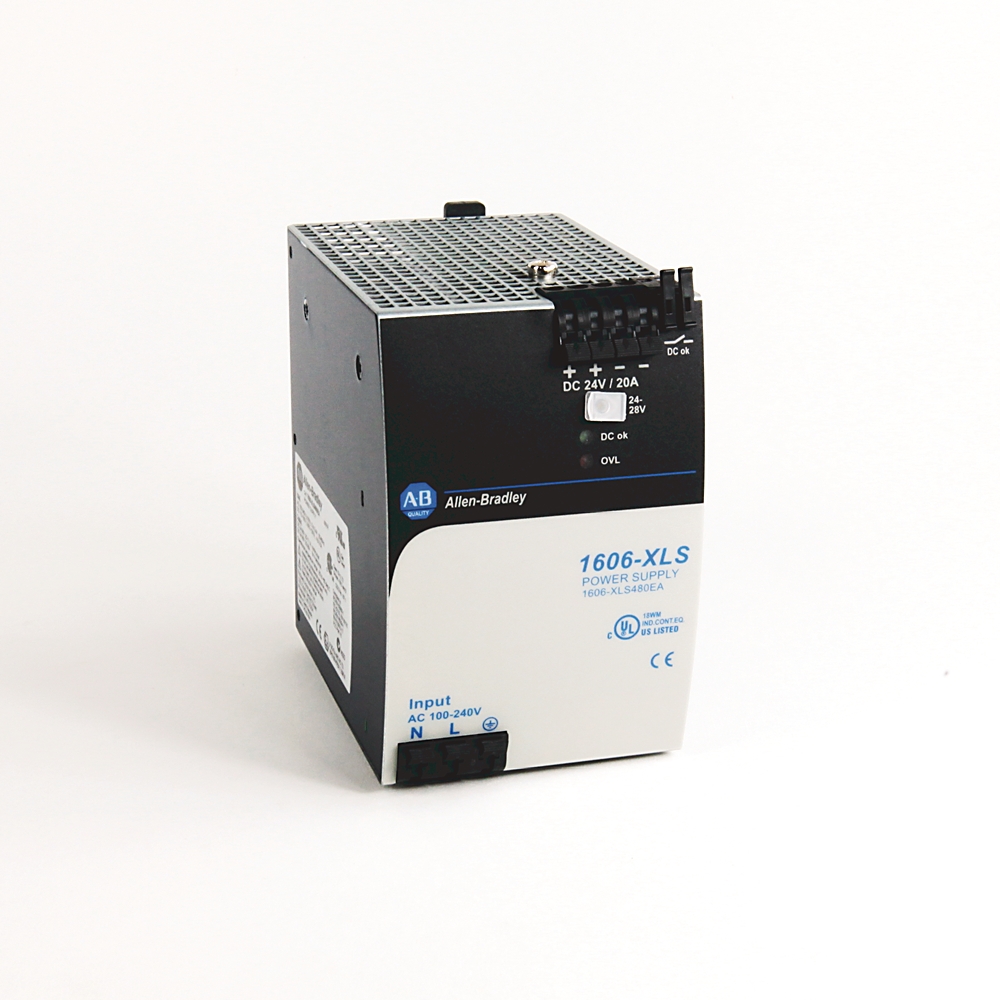

Allen Bradley 1606-XLS480E Performance Power Supply with Performance
You need power that never quits, especially when you run critical automation. This unit is a high-performance power supply made for Allen-Bradley systems. It converts 100-240 V AC to a stable 24 V output and can handle up to 480 W, keeping your controllers, drives and sensors alive even during voltage spikes. Choose this supply for the performance you expect from a trusted brand.
Benefits
- Keeps machines running without unexpected shutdowns.
- Protects sensitive electronics from voltage spikes.
- Saves energy with 94% efficiency, lowering electricity costs.
- Provides built-in reserve power for a few seconds during outages.
- Easy to install on a DIN rail, saving space in crowded panels.
Key Features
- Output voltage 24-28 V DC, adjustable.
- Continuous output current 20 A at 24 V.
- Power rating 480 W for heavy loads.
- Input range 100-240 V AC, 47-63 Hz.
- High power factor 0.90 typical.
- Ripple and noise are limited to 100 mV.
- Hold-up time 31-51 ms for brief interruptions.
- IP20 protection for indoor use.
- MTBF 469 khr, long reliable life.
- Spring clamp connection for quick wiring.
Specifications
| Electrical Data |
|
| Nominal value output voltage 1 |
24 V |
| Secondary voltage adjustable |
True |
| Power output |
480 W |
| Voltage type of supply voltage |
AC/DC |
| Rated supply voltage at DC |
110 V |
| Derating |
12 w/°c |
| DC OK relay contact |
True |
| Input inrush current limiter |
Active |
| Output voltage |
24...28V DC |
| Power factor |
0.90 typical |
| Operational range |
88...188V DC |
| Reserve power (typ. 4 s) |
30A @ 24V DC |
| Rated output current |
20A @ 24V DC |
| External input fuse, min |
B-10 A or C-10 A |
| Power losses |
31.4 W typical |
| Hold-up time |
31 to 51 ms |
| Efficiency |
94.5% typical |
| Input inrush current |
9 A/7 A |
| Input voltage |
100...240V @ AC, 47...63 Hz |
| Rated input current |
4.6A @ 100V AC |
| Output voltage stabilized |
True |
| Stabilized |
True |
| Ripple and noise, max |
100 mV |
| Mechanical Data |
|
| Height |
124 mm |
| Depth |
127 mm |
| Width |
82 mm |
| Rail mounting possible |
True |
| Direct mounting possible |
False |
| Wall mounting possible |
True |
| Type of electric connection |
Spring clA connection |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
Other |
| Environmental Data |
|
| Operating temperature |
-25 °C |
| Non-operating temperature range |
-25...+70 °C, >60 °C with derating |
| Reliability Data |
|
| MTBF |
469 kh (40 °C, SN29500) |
| Lifetime, min |
71 kh (+40 °C) |
| General Information |
|
| Sub group |
Performance family |
| Special feature |
ABS/GL/RINA (marine) |
| Special functions |
No special function |
