Product Description

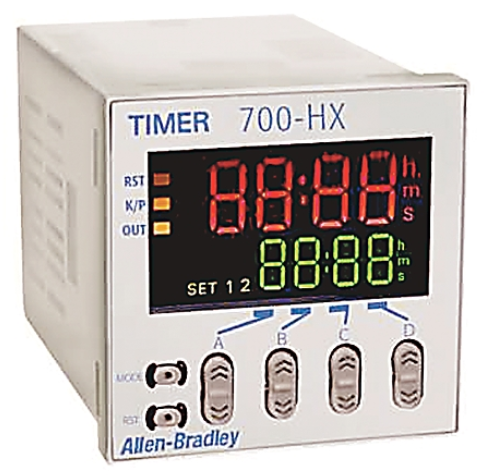

The Allen-Bradley 700-HX86SU24 is a multifunction digital timing relay designed for industrial automation and control applications. It features a clear LCD display and supports multiple timing functions with a wide adjustable timing range from 0.050 seconds to 9999 hours.
This relay provides reliable performance with SPDT contact output, 5 A switching capability, and flexible AC/DC control voltage options. Its durable construction ensures long mechanical and electrical life, while strong resistance to shock and vibration allows stable operation in demanding industrial environments.
Specifications
| Category |
Specification |
Details |
| General |
Timing Range |
0.050 s to 9999 hr |
| Mechanical |
Nominal Current |
5 A |
| |
DIN Rail Mounting |
No |
| |
Front Mounting |
No |
| |
Plug-in Socket |
No |
| |
Weight |
100 g |
| |
Mechanical Life |
Minimum 10,000,000 operations (no load at 18,000 ops/hr) |
| |
Shock Resistance |
Malfunction: 98 m/s² (approx. 10 G) in three directions |
| |
Vibration Resistance |
10–55 Hz, 0.35 mm amplitude for 10 min in three directions |
| |
Dielectric Strength |
2000 V AC for 1 min between current-carrying terminals and metal parts; 1000 V AC between non-continuous contacts |
| Construction |
Width |
48 mm |
| |
Height |
48 mm |
| |
Depth |
85.5 mm |
| Electrical |
Voltage Type for Actuation |
DC |
| |
Rated Control Supply Voltage (AC 50 Hz) |
24 V |
| |
Rated Control Supply Voltage (AC 60 Hz) |
24 V |
| |
Rated Control Supply Voltage (DC) |
12 V |
| |
Electrical Connection |
Plug-in connection |
| |
Power Consumption |
3.4 VA at 24 V AC |
| |
Operating Voltage |
85–110% of rated supply voltage |
| |
Electrical Life |
Minimum 100,000 operations (5 A at 250 V AC resistive load) |
| Environmental |
Operating Temperature |
−10 °C to +55 °C |
| |
Storage Temperature |
−25 °C to +65 °C |
| |
Maximum Altitude |
2000 m |
| |
Environmental Condition |
Avoid freezing or condensation |
