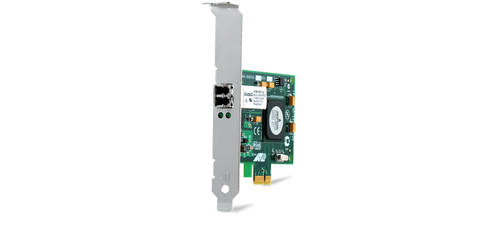

The Allied Telesis 2914SP is a gigabit PCIe x1 network adapter with an open SFP port. This port supports both Fast Ethernet and Gigabit SFP’s. This adapter supports Wake-on-LAN without the use of an external power supply.
Specifications
| Ports & interfaces |
| Fiber optic connector |
SFP |
| Fiber ports quantity |
1 |
| Interface |
Fiber |
| Host interface |
PCI Express |
| Connectivity technology |
Wired |
| Network |
| Load balancing system |
Yes |
| Quality of Service (QoS) support |
Yes |
| Auto-negotiation |
Yes |
| Jumbo frames |
9600 |
| Jumbo frames support |
Yes |
| Wake-on-LAN ready |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z |
| Maximum data transfer rate |
1000 Mbit/s |
| Design |
| Certification |
UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI |
| LED indicators |
Yes |
| Internal |
Yes |
| Power |
| Output voltage |
3.3 V |
| System requirements |
| Server operating systems supported |
Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows Vista |
| Operational conditions |
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
| Weight |
68 g |
| Height |
69 mm |
| Width |
88 mm |
| Packaging data |
| Low-profile bracket |
Yes |
| Quantity per pack |
1 pc(s) |
| Technical details |
| Compliance certificates |
RoHS |
| Other features |
| Operating temperature (T-T) |
0 - 50 °C |
| Priority queuing supported |
Yes |
| Flow control support |
Yes |
