| Screen |
|
| Screen Size |
9-inch Capacitive WVGA |
| LCD Type |
Transparent Type TN LCD |
| Operation System |
TFT Active Matrix |
| Number of Picture Elements |
1,152,000 pixels (800 x 3 x 480) |
| Illumination System |
White LED Backlighting |
| Effective Number of Picture Elements |
99.99% |
| Colour System |
NTSC, PAL |
| Max Power Output Ratings |
|
| Max Power Output |
4 x 50 W |
| FM Tuner |
|
| Tuning Range |
87.5 - 108.0 MHz |
| Mono Usable Sensitivity |
8.1 dBf (0.7 µV / 75 ohms) |
| 50dB Quieting Sensitivity |
12 dBf (1.1 µV / 75 ohms) |
| Alternate Channel Selectivity |
80 dB |
| Signal-to-Noise Ratio |
65 dB |
| Stereo Separation |
35 dB |
| Capture Ratio |
2 dB |
| MW Tuner |
|
| Tuning Range |
531 - 1,602 kHz |
| Usable Sensitivity (IEC Standard) |
25.1 µV / 28 dBf |
| LW Tuner |
|
| Tuning Range |
153 - 281 kHz |
| Usable Sensitivity (IEC Standard) |
31.6 µV / 30 dBf |
| USB |
|
| USB Requirements |
USB 2.0 |
| Max. Power Consumption |
1,500 mA (CDP Support) |
| USB Class |
Mass Storage Class, Play From Device |
| File System |
FAT 16/32 |
| MP3 Decoding |
MPEG-1/2 AUDIO Layer-3 |
| WMA Decoding |
Windows Media™ Audio |
| AAC Decoding |
ACC-LC format ′′.m4a′′ file |
| FLAC Decoding |
Yes |
| Number of Channels |
2-Channel (Stereo) |
| Frequency Response |
5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder
software/bit rate
|
| Total Harmonic Distortion (at 1kHz) |
0.008% |
| DynamicRange(at 1kHz) |
95 dB |
| Signal-to-Noise Ratio |
100 dB |
| Channel Separation (at 1kHz) |
85 dB |
| GPS / Glonass |
|
| GPS / Glonass compatible navigation antenna included |
Yes |
| BLUETOOTH® |
|
| Bluetooth |
BLUETOOTH® Version: Bluetooth V2.1+EDR
Output Power: +4 dBm Max. (Power class 2)
HFP (Hands Free Profile)
OPP (Object Push Profile)
PBAP (Phone Book Access Profile)
HSP (Head Set Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)
SPP (Serial Port Profile) |
| Sound Tuning |
|
| Subwoofer Level Adjustment |
0 to +15 |
| Subwoofer Phase Setting |
0° or 180° |
| BASS ENGINE SQ |
5Mode, Level 0 to +6 |
| HighPassFilter |
20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz |
| HighPassFilter (Slope) |
Off / -6 / -12 / -18 / -24 dB/oct. |
| HighPassFilter (Gain) |
-12 to 0 dB |
| LowPassFilter |
20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz |
| LowPassFilter (Slope) |
Off / -6 / -12 / -18 / -24 dB/oct. |
| LowPassFilter (Gain) |
-12 to 0 dB |
| Time Correction |
0.0 - 9.9ms (0.1ms step) |
| Dual HD EQ |
Front + Rear |
| Parametric Equalizer (Band 1) |
20 - 100 Hz |
| Parametric Equalizer (Band 2) |
63 - 315 Hz |
| Parametric Equalizer (Band 3) |
125 - 500 Hz |
| Parametric Equalizer (Band 4) |
250 - 1k Hz |
| Parametric Equalizer (Band 5) |
500 - 2k Hz |
| Parametric Equalizer (Band 6) |
1k - 4k Hz |
| Parametric Equalizer (Band 7) |
2k - 7.2k Hz |
| Parametric Equalizer (Band 8) |
5.8k - 12k Hz |
| Parametric Equalizer (Band 9) |
9k - 20k Hz |
| Parametric Equalizer (Gain) |
-14 to +14 |
| Application Volume Level Setting |
-14 to +14 |
| HDMI Section |
|
| Input Format |
480p |
| General |
|
| Power Requirement |
14.4 V. DC (11-16V allowable) |
| Pre Output Voltage (Before Clipping) |
4 V / 10k ohms |
| Maximum Mounting Angle |
30° |
| Dimensions |
|
| Din Size |
1DIN chassis and 9” Capacitive Touch Screen |

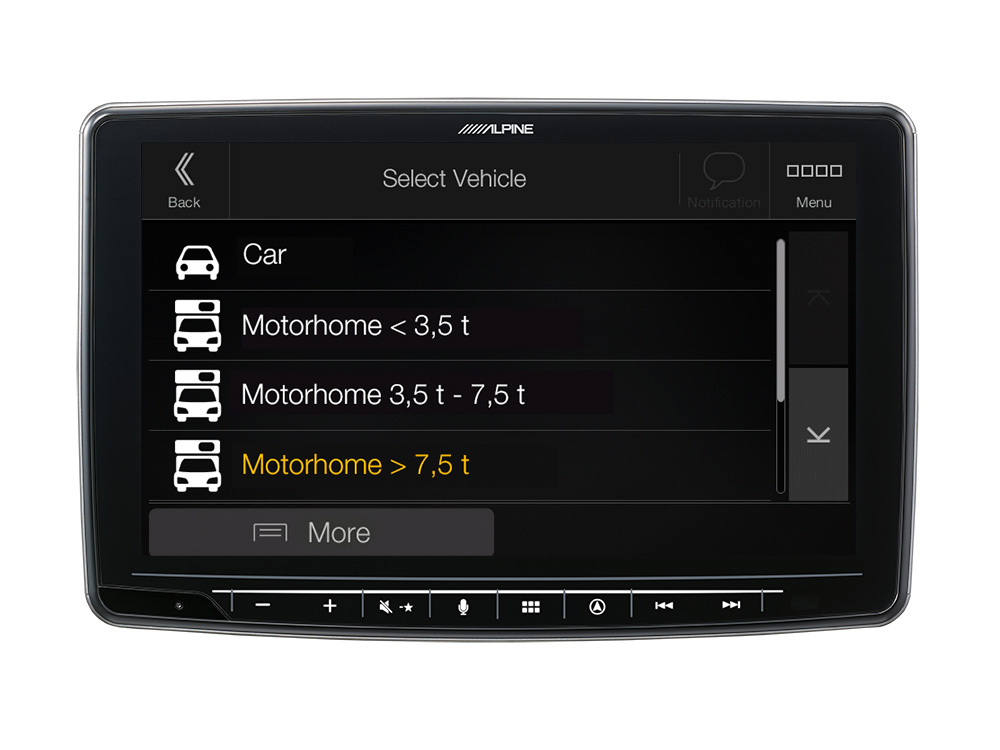

| INE-F904DU |
Fits for Fiat Ducato 3 and related caravans |
| Chassis Size (W x H x D) mm |
178 x 50 x 160 mm |
