If you are a motorhome owner, you know how hard it can be to navigate through unfamiliar roads. Traditional GPS systems can be confusing and often lack important information like campgrounds, rest stops, and other points of interest. This can lead to frustration and wasted time. The Alpine INE-W611DC, 6.5" Touch Screen 2-DIN Motorhome Navigation System is here to solve this problem. With its advanced navigation software and large touch screen display, you can easily find your way around and enjoy your trip. The system is designed specifically for motorhomes, taking into account their size and weight, and provides routes that are safe and convenient.

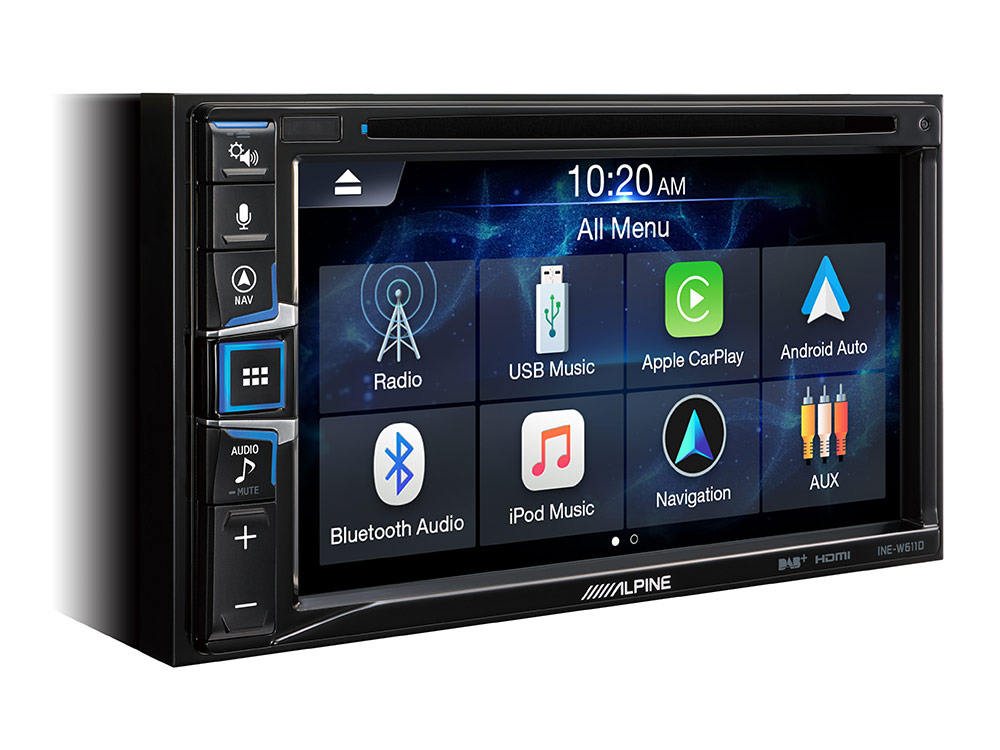

Alpine INE-W611DC, 6.5" Touch Screen 2-DIN Motorhome Navigation System with Alpine
Imagine having a personal navigator that knows exactly what you need as a motorhome owner. The Alpine INE-W611DC is more than just a GPS system - it's a comprehensive navigation solution designed to make your travels easier and more enjoyable. With its large 6.5" touch screen display, you can easily view maps, navigate through menus, and access important information like traffic updates and weather forecasts. The system is also compatible with Apple CarPlay and Android Auto, allowing you to connect your smartphone and access your favorite apps on the go.
Key Features
- 6.5" WVGA High Resolution Display
- 4 x 50 W High Power Amplifier
- 2x USB Ports with 1500 mA Charging Power
- Compatible with Apple CarPlay and Android Auto
- DAB+ Digital Radio supported
- FLAC Playback 24/96 and 24/192 Compatible
- 3 PreOuts (4V, Front/Rear/Subwoofer)
- 1 A/V AUX Inputs
- Steering Wheel Remote Control Ready
- Camera Connection supported
Specifications
| General |
|
| Product Type |
Motorhome Navigation System |
| Display |
6.5 inch WVGA High Resolution Display |
| Control Type |
Touch |
| Power Output |
4 x 50 W High Power Amplifier |
| USB Ports |
2x USB Ports with 1500 mA Charging Power |
| Apple CarPlay |
Compatible |
| Android Auto |
Compatible |
| DAB+ Digital Radio |
Supported |
| FLAC Playback |
24/96 and 24/192 Compatible |
| PreOuts |
3 PreOuts (4V, Front/Rear/Subwoofer) |
| AUX-In |
1 A/V AUX Inputs |
| Steering Wheel Remote Control |
Ready |
| Camera Connection |
Supported |
| Camera Guide Line Adjustment |
Supported |
| Rearview Camera Display |
Supported |
| HDMI Input |
Supported |
| Start-Stop Engine |
Unaffected |
| Display |
|
| Screen Size |
6.5 inch |
| LCD Type |
Transparent type TN LCD |
| Number of Picture Elements |
1,152,000 pcs. (800 × 480 × 3 (RGB)) |
| Effective Number of Picture Elements |
99% or more |
| Illumination System |
LED |
| Tuner |
|
| FM Tuning Range |
87.5 – 108.0 Mhz |
| AM / MW Tuning Range |
531 -1,602KHz |
| LW Tuning Range |
153 – 281 kHz |
| Mono Usable Sensitivity |
9.3 dBf (0.8 μV/75 ohms) |
| 50 dB Quieting Sensitivity |
13.5 dBf (1.3 μV/75 ohms) |
| Alternate Channel Selectivity |
80 dB |
| DAB |
|
| Tuning Range BAND III |
174.928 - 239.2 MHz |
| Tuning Range L-BAND |
1,452.96 - 1,490.624 MHz |
| Usable Sensitivity |
-101 dBm |
| Signal-to-Noise Ratio |
85 dB |
| USB |
|
| USB requirements |
USB 2.0 |
| Max. Power Consumption |
1,500 mA (CDP Support) |
| USB Class |
USB (Mass Storage Class) |
| File System |
FAT16/32 |
| Decoding Formats |
MP3/WMA/AAC/FLAC/OGG/APE/MP2 |
| Number of Channels |
2-Channels (Stereo) |
| Total Harmonic Distortion |
0.016% (at 1 kHz) |
| Dynamic Range |
95 dB (at 1 kHz) |
| Signal-to-Noise Ratio |
85 Db |
| Channel Separation |
75 dB (at 1 kHz) |
| HDMI |
|
| Input Format |
480p/720p |
| Navigation |
|
| GPS Reception Frequency |
1,575.42 ±1 MHz |
| GPS Reception Sensitivity |
-130 dBm max. |
| Navigation Maps |
TomTom Maps for 48 Countries (Western and Eastern Europe) |
| Navigation Software |
iGo Primo Nextgen Navigation |
| Motorhome Software |
Pre-installed motorhome and trucking software |
| Map Updates |
3 Years free-Of-Charge Map Update |
| Positioning Sensor |
GPS and Glonass |
| Bluetooth |
|
| Bluetooth Specification |
Bluetooth v4.0 |
| Frequency Band |
2,402 – 2,480 MHz |
| Output Power |
-6~+4 dBm Ave. (Power class 2) |
| HFP (Hands-Free Profile) |
Supported |
| PBAP (Phone Book Access Profile) |
Supported |
| A2DP (Advanced Audio Distribution Profile) |
Supported |
| AVRCP (Audio/Video Remote Control Profile) |
Supported |
| Disc Player |
|
| Disc Type |
DVD/CD Player |
| Disc Playback Type |
DVD-Video, CD, CD-R/RW, DVD±R/±RW |
| Playable Format |
DVD-Video, CDDA, MP3/WMA/AAC |
| DAC |
24 Bit DAC |
| Sound Tuning |
|
| Subwoofer Level Adjustment |
Supported |
| Subwoofer Phase Select |
Supported |
| Equalizer |
Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical |
| Digital Time Correction |
6-Channel Digital Time Correction |
| Digital Crossover Setting |
Supported |
| MediaXpander |
Supported |
| Application Volume Level Setting |
Supported |
| General Specifications |
|
| Power Requirement |
14.4 V DC (11–16 V allowable) |
| Operating Temperature |
4°F to +140°F (-20°C to + 60°C) |
| Maximum Power Output |
50W x 4 |
| Preout (Front, Rear) |
4V/10k ohms (max.) |
| Preout (Subwoofer) |
4V/10k ohms (max.) |
| Weight (unit only) |
2.05 kg |
| Chassis Size |
|
| Width |
178 mm |
| Height |
100 mm |
| Depth |
142 mm |
