If you are looking to expand your camera system, you might be facing a big problem. You want to add more cameras to your current setup, but you do not know how to connect them. This problem matters to you because it can be frustrating and costly to figure out how to expand your system. The Alpine RVX-100, 4-Channel Camera Extension Hub is here to give you a clear solution. It allows you to connect up to 4 additional cameras to your current system, making it easy to expand your camera network. With this product, you can say goodbye to the hassle of trying to figure out how to connect your cameras.
Alpine RVX-100, 4-Channel Camera Extension Hub with Alpine
Imagine being able to see everything that is going on around you, from every angle. The Alpine RVX-100, 4-Channel Camera Extension Hub makes this possible. This product is a 4-channel camera extension hub that allows you to connect up to 4 additional cameras to your current system. It is used to expand your camera network, giving you a clearer view of your surroundings. If you are having trouble seeing everything that is going on around you, this product is the solution you need. With the Alpine RVX-100, 4-Channel Camera Extension Hub, you can connect up to 4 additional cameras, giving you a complete view of your surroundings.
Key Features
- 4-channel camera extension hub
- Connect up to 4 additional cameras to your current system
- Used to expand your camera network
- Gives you a complete view of your surroundings
- Can be used in home security systems
- Can be used in commercial settings
- Can be used in vehicles
- Easy to install and use
- Compatible with the Alpine DVR-F790 / DVR-F220
- Dimensions: 65 x 65 x 17.5 mm
- Weight: 40g
Specifications
| General |
|
| Setup |

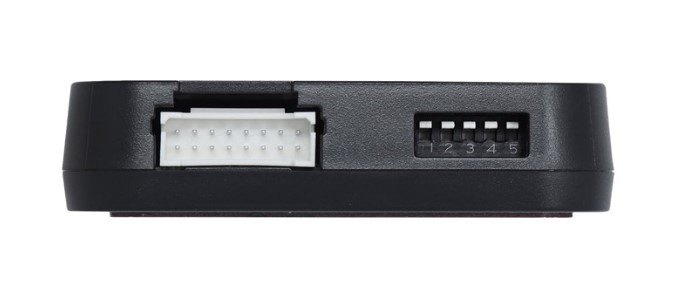

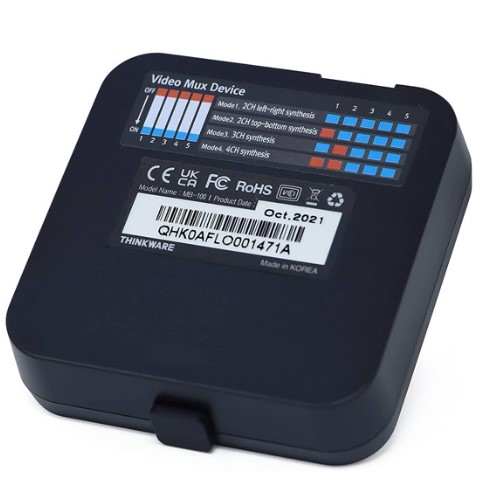

screen configuration by piano switches from 2 to 4 additional cameras |
| Power Source |
DC 12 V ~ 24 V, cable length: 3 m |
| AV-IN (For optional camera connection) |
|
| Input |
4 cables (CAM 1, CAM 2, CAM 3, CAM 4) |
| Connector Type |
2.5 pi Stereo-jack type |
| AFHD |
|
| Cable Length to Connecting Connector |
15 cm (5.9 inch) |
| AV-OUT (For front camera connection) |
|
| Output |
1 cable (AV-OUT) |
| Connector Type |
2.5 pi Stereo-jack type |
| Application |
For front camera connection |
| Cable Length |
3 m |
| Recording Channel |
|
| Camera Input |
Up to 4 Analog Full HD cameras can be input |
| Composite Video |
Full HD (1920 x 1080) @ 30fps |
| Dimensions |
|
| Dimensions (WxDxH) |
65 x 65 x 17.5 mm |
| Weight |
40g |
| Storage Temperature |
-20°~ 70°C |
| Compatibility |
This product is only compatible with the Alpine DVR-F790 / DVR-F220 |
