Many people need a small computer that can run full Linux apps while they travel or work away from a desk. A phone cannot run desktop software and a laptop is too bulky for a pocket. This creates frustration when you want to code, edit videos, or run a server on the go. The Amarullz piBrick Pocket-CM5 gives you a true handheld PC with a bright AMOLED screen, full keyboard and many ports, so you can work anywhere without compromise.

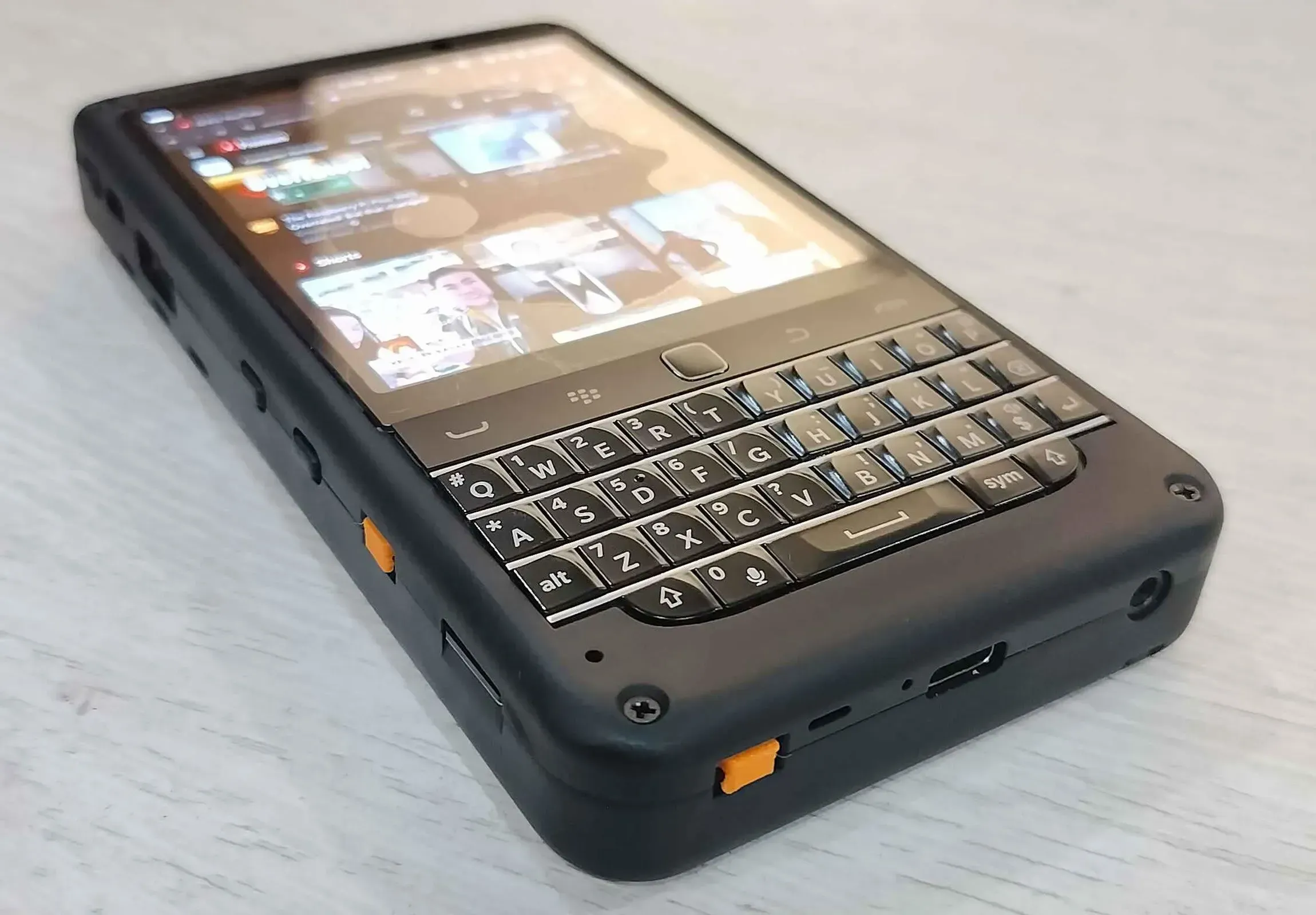

Amarullz piBrick Pocket-CM5, 3.92-inch AMOLED Raspberry Pi CM5 handheld PC with Amarullz
Imagine a pocket-size computer that feels like a tiny laptop. The piBrick Pocket-CM5 packs a Raspberry Pi CM5 processor, a 3.92-inch 1080 x 1240 AMOLED display and a built-in QWERTY keyboard with trackpad. It solves the problem of missing power and input when you are away from a desk. With Amarullz you get a ready-to-use handheld PC that can run any Raspberry Pi OS, development tools or media apps.
Key Features
- 3.92-inch AMOLED screen, 1080 x 1240 pixels, 90 Hz refresh.
- 560 nits brightness and 16 M colors for vivid visuals.
- Capacitive multitouch up to five fingers.
- Asahi tempered glass protects the display.
- USB 3 Type-A, USB 3 Type-C, two USB 2 ports and an internal add-on.
- 5000 mAh LiPo battery for long sessions.
- BBQ20 QWERTY keyboard with integrated trackpad.
- Side rotary encoders and five side user buttons.
- Internal sound card, stereo speaker, mic and 3.5 mm headphone jack.
- Accelerometer sensor and front MIPI/CSI camera.
- Internal eMMC or micro-SD storage plus M.2 NVMe SSD slot.
- Expansion connectors for USB 2.0, I2C and GPIO.
- RGB LED indicators for status and keyboard layout.
Specifications
| Core |
|
| Core |
Raspberry Pi CM5 |
| Display |
|
| Display Size |
3.92 Inch AMOLED Display |
| Resolution |
1080 × 1240 pixels @ 90Hz Refresh Rate |
| Color |
16M Colors |
| Brightness |
560 Nits |
| Touchscreen |
Capacitive Multitouch, Up to 5 Fingers (OnCell Touchscreen) |
| Display Interface |
MIPI DSI |
| Cover Glass |
Asahi Tempered Glass (Custom Design for piBrick) |
| Display Output |
1 × Full-size HDMI, 1 × micro-HDMI |
| USB |
|
| USB Ports |
1 × USB 3 Type-A, 1 × USB 3 Type-C, 1 × USB 2 Type-C, 1 × USB 2 Type-A, 1 × USB 2 (Internal Add-On) |
| Battery |
|
| Battery |
5000mAh LiPo Battery |
| Input Devices (HID) |
|
| Keyboard |
BBQ20 QWERTY Keyboard with Integrated Trackpad as Mouse |
| Rotary Encoders |
Side Rotary Encoders with Push Switch |
| User Buttons |
5 × Side User Buttons |
| Audio |
|
| Audio |
Internal Sound Card with Amplifier, Internal Stereo Speaker, Microphone from BBQ20 Keyboard,
3.5mm Audio Jack for Headphone
|
| Sensors & Camera |
|
| Sensors |
Accelerometer Sensor |
| Camera |
Front Camera (Raspberry Pi MIPI/CSI Camera) |
| Storage |
|
| Internal Storage |
Internal CM5 eMMC or Micro SD |
| SSD Support |
M.2 NVMe Connector for SSD |
| Expansion |
|
| Expansion Connectors |
Internal USB 2.0, I2C Connector, GPIO Extension Connector |
| Indicators |
User RGB LED, Keyboard Layout RGB Indicator |
| Mechanical |
|
| Dimensions |
80 × 145 × 19.6 mm |
| Body |
Open Source 3D Printable Frame & Casing |
