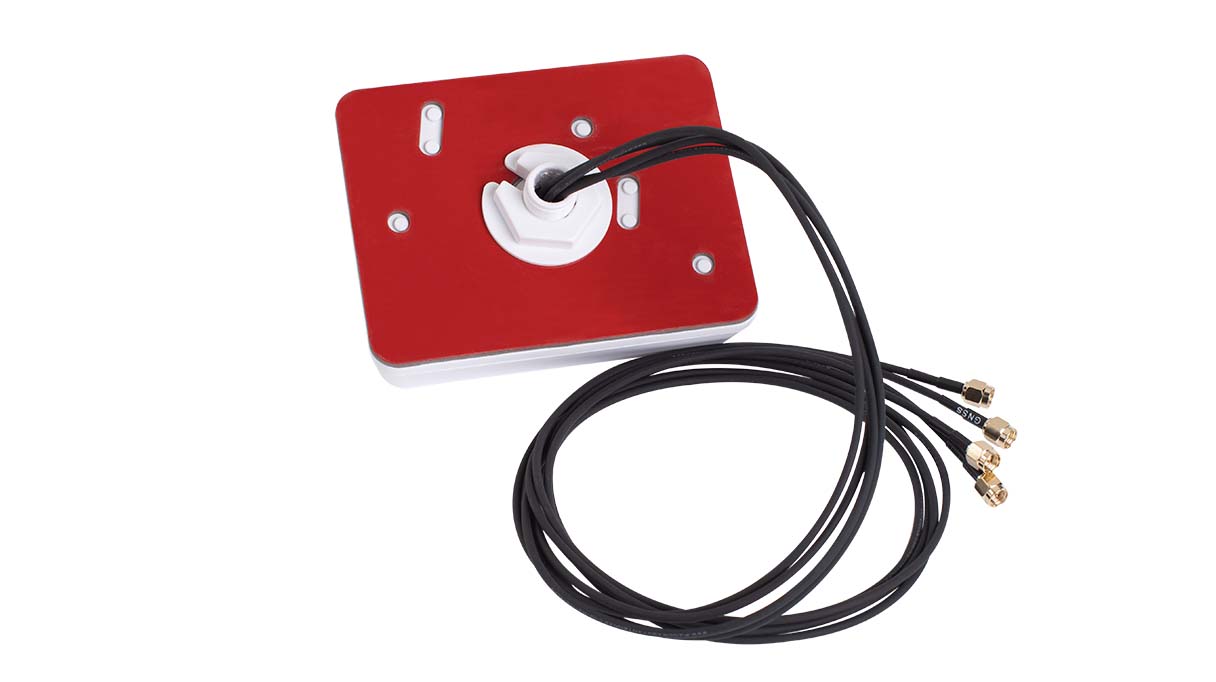

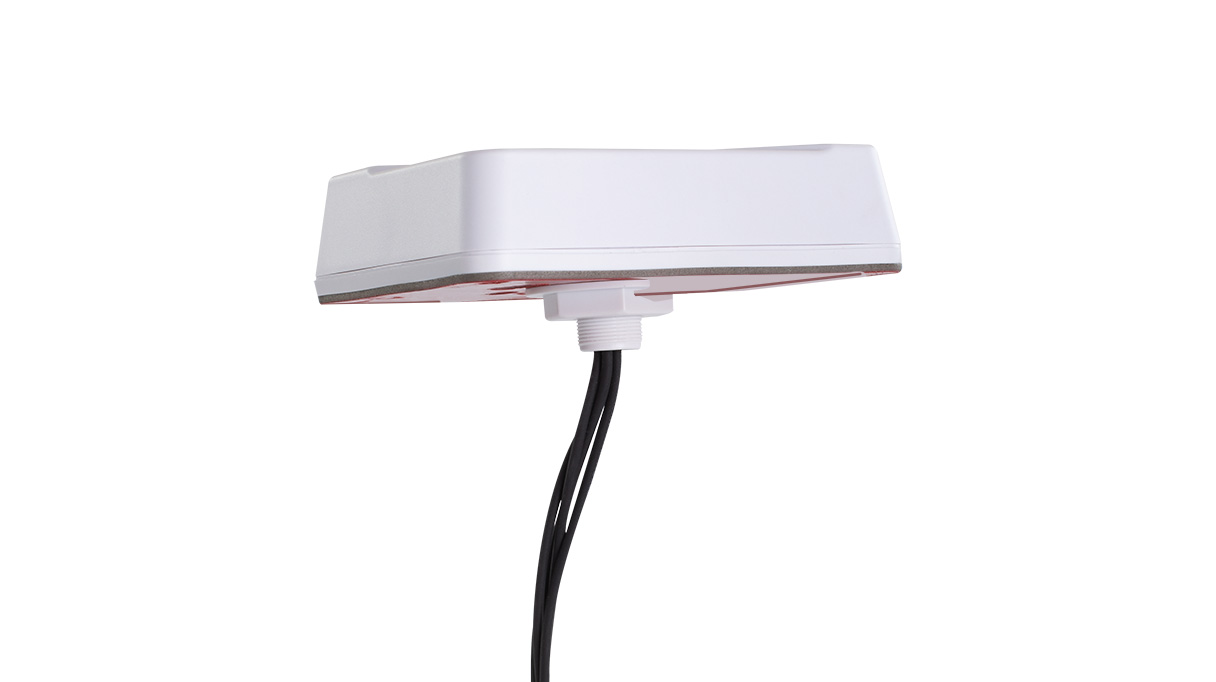

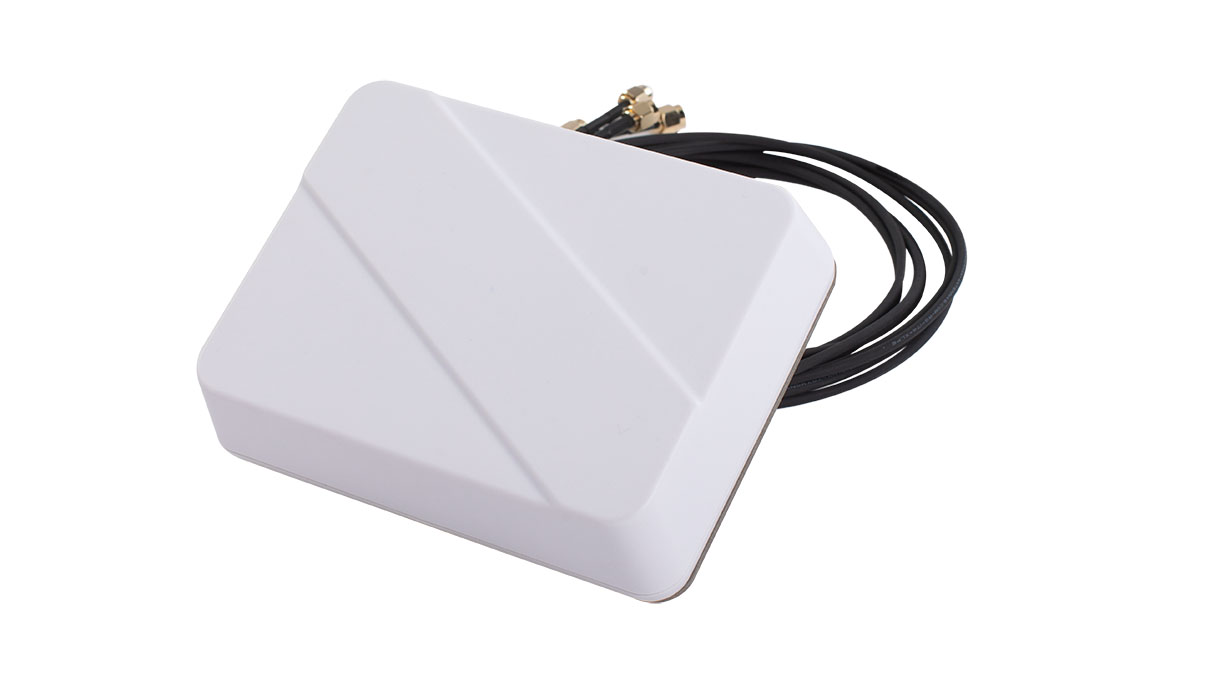

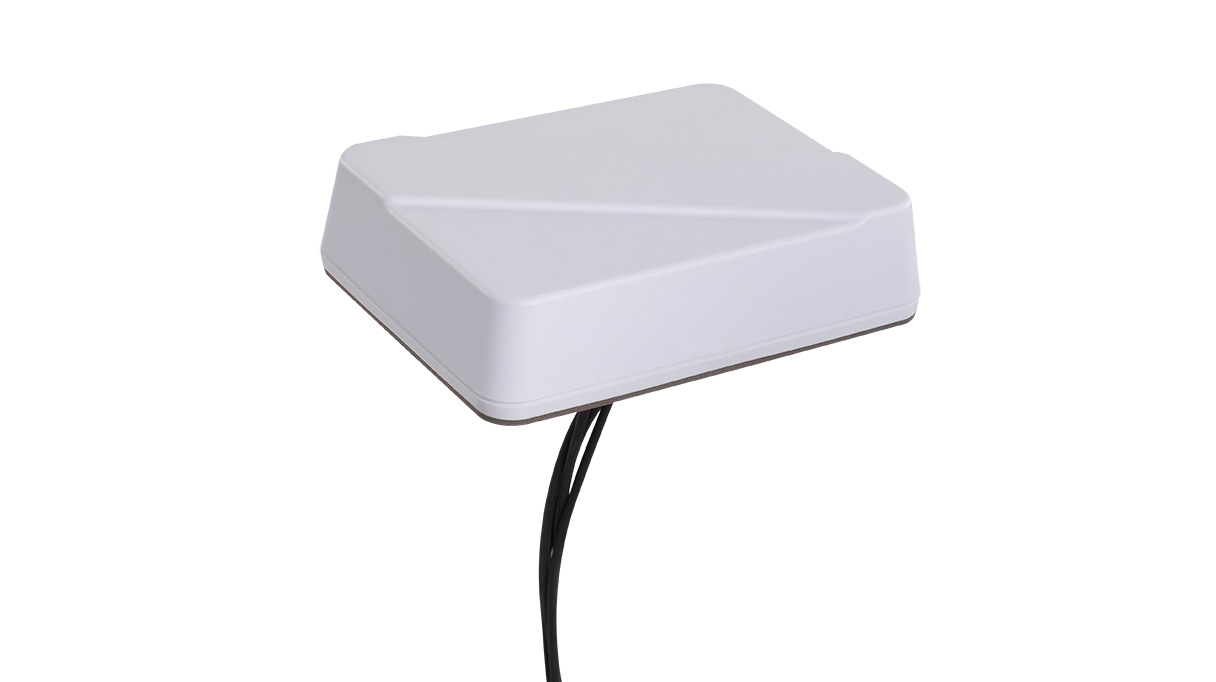

Amphenol PCTEL GLLPDLTE-B Medallion II Permanent Mount 5G GNSS Antenna
The Amphenol PCTEL GLLPDLTE-B Medallion II is a combination antenna designed for 5G cellular and GNSS connectivity in industrial and enterprise applications. It supports 5G FR1, CBRS, 4G LTE, and GNSS L1 technologies through two LTE elements and one GNSS element.
The antenna covers a broad cellular frequency range from 617 MHz to 5.95 GHz, with LTE primary port gain of 3–7 dBi typical and secondary port gain of 3–7.5 dBi typical depending on frequency. Its GNSS functionality supports GPS L1, GALILEO E1, GLONASS L1, QZSS L1, and BEIDOU B1, with proprietary GNSS technology and out-of-band rejection filtering.
The GLLPDLTE-B is designed for permanent-mount indoor and outdoor cabinet-top applications. It features a UV-stable rugged housing, black housing color, approximately 34 mm housing height, and IPX7 ingress protection. Two 3-ft RG-316 pigtails are provided for cellular connections and one 3-ft RG-316 pigtail for GNSS, with SMA plug connectors.
This combination of cellular and GNSS connectivity makes the antenna suitable for Industrial IoT, intelligent transportation systems (ITS), EV charging stations, utilities, enterprise networks, and material handling applications. Its wide frequency coverage and rugged housing support deployment across diverse connected equipment and infrastructure environments.
Main Features
- 5G cellular + GNSS combination antenna
- Supports 5G FR1, CBRS, 4G LTE, and GNSS L1
- Cellular frequency range: 617 MHz–5.95 GHz
- Two LTE elements and one GNSS element
- LTE gain up to 7.5 dBi typical
- Supports GPS L1, GALILEO E1, GLONASS L1, QZSS L1, and BEIDOU B1
- IPX7 ingress protection
- Permanent-mount indoor/outdoor cabinet-top installation
- Suitable for Industrial IoT, ITS, EV charging, utilities, enterprise networks, and material handling
Specifications:
| Product Series |
Medallion™ II |
| Model / MPN |
GLLPDLTE-B |
| Antenna Type |
Combination Antenna – 5G Cellular + GNSS |
| Technologies |
5G FR1, CBRS, 4G LTE, GNSS L1 |
| Elements |
LTE (2), GNSS (1) |
| Cellular Frequency Range |
617–698 MHz; 698–790 MHz; 790–960 MHz; 1.71–2.17 GHz; 2.3–2.69 GHz; 3.3–4.2 GHz; 4.4–5.0 GHz; 4.9–5.95 GHz |
| LTE Primary Port Gain |
3–7 dBi typical, depending on frequency |
| LTE Secondary Port Gain |
3–7.5 dBi typical, depending on frequency |
| Polarization |
Linear |
| Nominal Impedance |
50 ohms |
| Maximum Power |
50 W |
| GNSS Compatibility |
GPS L1, GALILEO E1, GLONASS L1, QZSS L1, BEIDOU B1 |
| GNSS Technology |
Proprietary GNSS technology with out-of-band rejection filtering |
| Cabling |
Two 3-ft RG-316 pigtails (Cellular); one 3-ft RG-316 (GNSS) |
| Connector |
SMA Plug (Cellular); SMA Plug (GNSS) |
| Mounting |
None (GLLPDLTE-B configuration) |
| Housing Color |
Black |
| Housing Height |
1-1/3 inch (approx. 34 mm) |
| Ingress Protection |
IPX7 |
| Installation |
Permanent mount; indoor/outdoor cabinet-top applications |
| Applications |
Industrial IoT, ITS, EV Charging Stations, Utilities, Enterprise Networks, Material Handling |
| Radome |
UV-stable rugged housing |
