Tired of dim, unreliable lights that waste power and heat up your vehicle? The ams OSRAM OSLON Compact RM White LED, KW CVLDM1.TK (Q65113A9594) gives you bright, steady illumination without the usual headaches. It is built for modern car lighting where space is tight and performance matters. If you have struggled with flickering headlamps or short-life bulbs, this LED solves those issues and lets you drive safely at night.

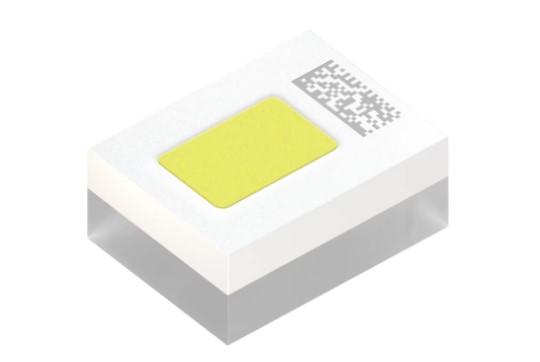

ams OSRAM OSLON Compact RM White LED, KW CVLDM1.TK (Q65113A9594)
Many drivers face dim or uneven lighting that reduces visibility and looks unprofessional. Poor lighting can also increase driver fatigue and raise safety concerns. This LED addresses the problem by delivering 385 lm of white light from a tiny 1.6 1.2 0.73 mm package. Its 120 Lambertian beam spreads evenly across the road, while the 3.3 W power draw keeps the system efficient. With a wide current range and strong ESD protection, the LED stays reliable even in harsh automotive environments.
Key Features
- White emission color with CIE coordinates Cx = 0.3230, Cy = 0.3423.
- Typical luminous flux of 385 lm and intensity of 126 cd.
- 120 Lambertian beam angle for uniform illumination.
- Forward voltage range 2.90 V to 3.5 V.
- Maximum pulsed current of 2000 mA for high-peak applications.
- ESD protection up to 8 kV (Class 3B).
- AEC-Q102 qualified for automotive reliability.
- Ceramic package dimensions 1.6 1.2 0.73 mm.
- Two-pad solder design simplifies PCB assembly.
Specifications
| Product |
|
| Product Name |
ams OSRAM OSLON™ Compact RM White LED |
| Part Number |
KW CVLDM1.TK |
| Ordering Code |
Q65113A9594 |
| Family |
OSLON™ Compact RM |
| Product Type |
White LED |
| Optical Specifications |
|
| Emission Color |
White |
| Typical Luminous Flux |
385 lm |
| Typical Luminous Intensity |
126 cd |
| Typical Radiant Flux |
1230 mW |
| Typical Radiant Intensity |
402 mW/sr |
| Beam Angle |
120° (Lambertian emitter) |
| Target Color Coordinates |
Cx = 0.3230, Cy = 0.3423 (CIE 1931) |
| Electrical Specifications |
|
| Electrical Power |
3.3 W |
| Forward Current Range |
50 mA to 1300 mA |
| Typical Drive Current |
1 A |
| Maximum Pulsed Current |
2000 mA |
| Forward Voltage Range |
2.90 V to 3.5 V |
| Reverse Voltage |
45 V minimum (ESD device) |
| Mechanical Specifications |
|
| Package |
Ceramic package |
| Dimensions |
1.6 mm × 1.2 mm × 0.73 mm |
| Light Emitting Area |
0.6 mm × 0.9 mm |
| Aspect Ratio |
1:1.5 rectangular emitting area |
| Chip Technology |
UX:3 |
| Solder Pad Design |
2-pad |
| Thermal Specifications |
|
| Operating Temperature Range |
-40 °C to +135 °C |
| Maximum Junction Temperature |
+150 °C (+165 °C for short-time applications) |
| Protection & Reliability |
|
| Corrosion Robustness Class |
3A |
| ESD Protection |
8 kV (ANSI/ESDA/JEDEC JS-001, HBM Class 3B) |
| Qualification |
AEC-Q102 Qualified (RV-Level 1) |
| Applications |
|
| Primary Application |
Dynamic Forward Lighting |
| Typical Applications |
Automotive headlamps, Slim headlamp systems, Adaptive front lighting |
