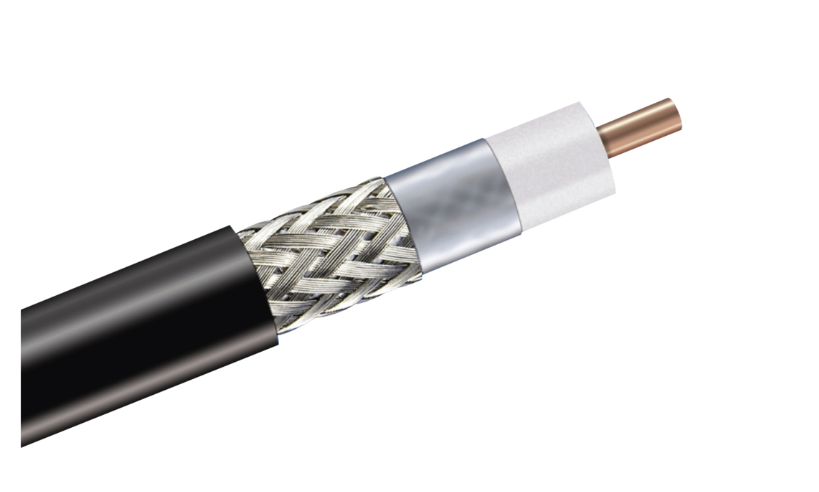

Andrew CNT-400 50 Ohm Braided Coaxial Cable

Tired of weak signals and constant interference when you set up a video link or antenna system? The Andrew CNT-400 50 Ohm Braided Coaxial Cable is built to give you a clean, strong connection every time. It is a high-quality coaxial cable designed for RF, TV, satellite and data applications. If you have ever struggled with loss of picture, static or dropped data, this cable solves those problems and lets you enjoy reliable performance.

Andrew CNT-400 50 Ohm Braided Coaxial Cable

The main issue with many coax cables is poor shielding, which lets noise into the signal path. That noise can turn a clear picture into fuzz or cause data packets to fail. This matters because you lose time fixing the problem and you may have to replace equipment. The Andrew CNT-400 uses a 90 % braided tinned-copper shield and a low-loss foam PE dielectric to keep the signal pure from 30 MHz up to 6 GHz. The result is a strong, stable connection that works in harsh environments and under high power.

Key Features

• 50 Ohm characteristic impedance.
• 90 % braid coverage with tinned copper for superior shielding.
• Foam PE dielectric for low capacitance (78 pF/m).
• Non-halogenated PE jacket in black for fire safety.
• Operating frequency range 30 MHz - 6 GHz.
• Maximum frequency 16.2 GHz for future-proof use.
• Peak power handling 16 kW.
• Temperature rating -40 °C to +85 °C for indoor and outdoor use.
• Tensile strength 73 kg (160 lb) for robust handling.
• Velocity factor 85 % for accurate signal timing.

Specifications
