Tired of weak signal and constant drop-outs in your wireless setup? The Andrew HELIAX AVA5-50FX 7/8" 50 Ohm Corrugated Copper Coaxial Wireless Cable is the answer. This heavy-duty cable carries high-frequency signals with low loss, keeping your Wi-Fi, antenna or radio link strong and reliable. If you have ever struggled with poor coverage or interference, you need a cable that protects the signal from the source to the device.

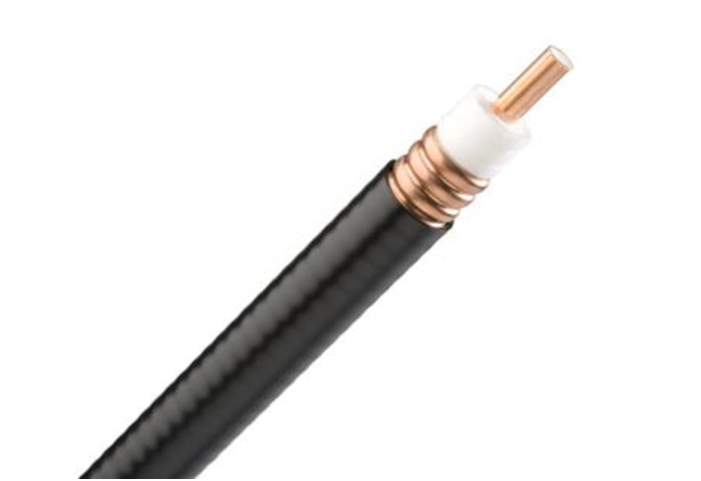

Andrew HELIAX AVA5-50FX 7/8" 50 Ohm Corrugated Copper Coaxial Wireless Cable
The main problem is signal loss caused by cheap or poorly shielded cables. Loss reduces speed, creates dead zones, and makes troubleshooting a nightmare. This matters because every lost bit means slower downloads, choppy video and frustrated users. The AVA5-50FX solves the issue with a thick copper conductor, a tight 50 Ω impedance and a corrugated jacket that resists crushing. The result is a clean, stable signal from 1 MHz up to 5 GHz, perfect for demanding wireless installations.
Key Features
- 7/8 in. (24.13 mm) outer diameter for easy handling.
- Standard flexibility for smooth bends.
- Black corrugated jacket for UV and abrasion resistance.
- Impedance: 50 Ω ± 1 Ω.
- Capacitance: 73 pF/m.
- DC resistance: 3.1 Ω/km (inner) / 1.53 Ω/km (outer).
- Peak power rating: 91 kW.
- Operating frequency: 1 - 5000 MHz.
- Velocity factor: 90 %.
- Jacket spark test voltage: 8000 V RMS.
- DC test voltage: 6000 V.
Specifications
| Product Type |
Coaxial wireless cable |
| Product Brand |
HELIAX® |
| Product Series |
AVA5-50FX |
| Product Number |
SZ520096403/00 |
| Flexibility |
Standard |
| Jacket Color |
Black |
| Performance Note |
Attenuation values typical, guaranteed within 5% |
| Diameter Over Dielectric |
24.13 mm | 0.95 in |
| Diameter Over Jacket |
27.991 mm | 1.102 in |
| Inner Conductor OD |
9.4488 mm | 0.372 in |
| Outer Conductor OD |
25.4 mm | 1 in |
| Nominal Size |
7/8 in |
| Cable Impedance |
50 ohm ±1 ohm |
| Capacitance |
73 pF/m | 22.25 pF/ft |
| DC Resistance, Inner Conductor |
3.1 ohms/km | 0.945 ohms/kft |
| DC Resistance, Outer Conductor |
1.53 ohms/km | 0.466 ohms/kft |
| DC Test Voltage |
6000 V |
| Inductance |
0.184 µH/m | 0.056 µH/ft |
| Insulation Resistance |
100000 MOhms-km |
| Jacket Spark Test Voltage (RMS) |
8000 V |
| Operating Frequency Band |
1–5000 MHz |
| Peak Power |
91 kW |
| Velocity |
90% |
