The Anritsu MP1900A Signal Quality Analyzer-R BERT gives you exactly that - a powerful tool that measures signal quality and performs bit error rate testing in one easy-to-use package. It solves the frustration of inconsistent results and helps you keep networks running smoothly.

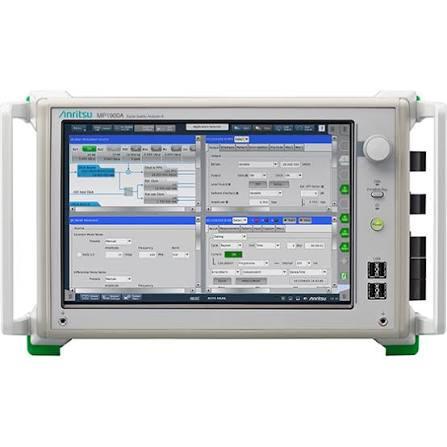

Anritsu MP1900A Signal Quality Analyzer-R BERT
This analyzer removes the guesswork from high-speed link testing. When you cannot trust your measurements, you risk downtime and costly repairs. The MP1900A delivers accurate eye diagrams, jitter analysis, and BER testing so you can pinpoint problems before they affect users. It connects to your equipment via GPIB or LAN, runs on Windows 10, and presents results on a large 12.1-inch WXGA screen, giving you a clear view of every detail.
Key Features
- 12.1-inch WXGA LCD (1280 × 800) for clear visual analysis.
- GPIB and LAN remote interfaces for easy automation.
- Eight interchangeable module slots for future-proof testing.
- Six USB ports, VGA and HDMI outputs for flexible connectivity.
- Runs on Windows 10, providing familiar software environment.
- Power range supports 100-240 V AC, 50-60 Hz worldwide.
- Maximum power consumption 1350 VA, suitable for standard lab power.
- Built-in BER testing engine for accurate error rate measurement.
- Comprehensive jitter and eye diagram analysis tools.
Specifications
| LCD |
12.1-inch, WXGA 1280 x 800 |
| Remote Interface |
GPIB, LAN |
| Module Slots |
8 |
| External Peripheral I/F |
USB x6, VGA x1, HDMI x1 |
| OS |
Windows 10 |
| Power |
100V(ac) to 120V(ac)/200V(ac) to 240 V(ac), 50 Hz to 60 Hz |
| Power Consumption |
1350 VA max. |
