Tired of dropped calls and slow data on your remote device? The Antenova Affini SRFL064 Cellular 4G/5G Antenna is made to fix that. It is a small PCB antenna that catches 4G and 5G signals and sends them to your equipment. If you live in a weak-signal area or need reliable connectivity for a project, this antenna gives you the strength you need. Antenova knows how important a steady link is for your work or hobby.

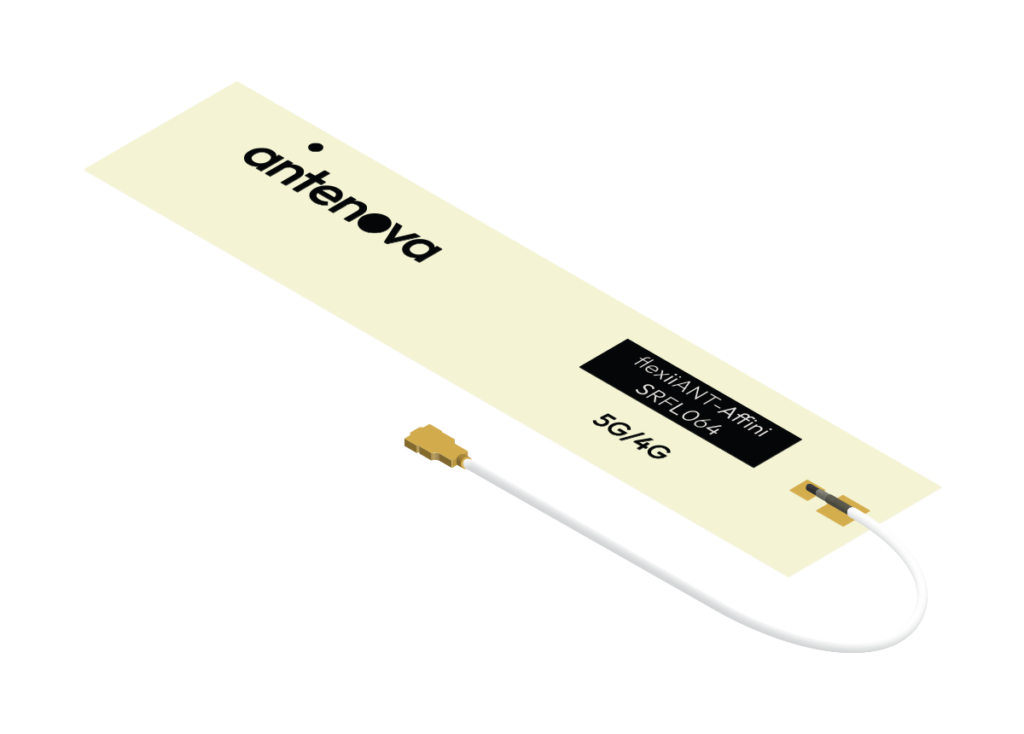

Antenova Affini SRFL064 Cellular 4G/5G Antenna
Many users struggle with poor cellular reception inside metal enclosures or far from a tower. Weak signal means missed messages, interrupted video, and wasted battery. This problem hurts productivity and can cost money in lost data. The Antenova Affini SRFL064 solves the issue by providing a 3.9 dBi gain antenna that works from 617 MHz to 2.69 GHz. It attaches with an adhesive mount and a U.FL connector, so you can add it to any board quickly. The result is a stronger, more stable 4G/5G link wherever you place it.
Benefits
- Stronger signal reduces dropped calls and improves download speed.
- Wide frequency range covers most 4G and 5G carriers worldwide.
- Easy adhesive mount saves time during installation.
- Compact size fits tight spaces and keeps your device sleek.
- Low VSWR (3.1:1) means efficient power use and longer battery life.
Key Features
- Gain of 3.9 dBi for clear signal boost.
- Operates from 617 MHz to 2.69 GHz.
- Supports six cellular bands.
- 50 Ohm impedance matches standard RF modules.
- U.FL connector for quick, reliable mating.
- Adhesive mounting for permanent placement.
- 150 mm cable length gives flexibility in routing.
- Operating temperature from -40 C to +85 C.
- Linear polarisation for consistent performance.
- ROHS compliant, safe for commercial use.
Specifications
| Manufacturer |
Antenova |
| Product Category |
Antennas |
| Certificate |
ROHs |
| Product |
PCB Antennas |
| Minimum Frequency |
617 MHz |
| Maximum Frequency |
2.69 GHz |
| Gain |
3.9 dBi |
| Impedance |
50 Ohms |
| VSWR |
3.1:1 |
| Minimum Operating Temperature |
- 40 C |
| Maximum Operating Temperature |
+ 85 C |
| Number of Bands |
6 Band |
| Mounting Style |
Adhesive Mount |
| Termination Style |
Connector |
| Antenna Connector Type |
U.FL |
| Length |
78 mm |
| Width |
17 mm |
| Height |
0.15 mm |
| Series |
Affini |
| Packaging |
Bulk |
| Brand |
Antenova |
| Cable Length |
150 mm |
| Country of Assembly |
Not Available |
| Country of Diffusion |
Not Available |
| Country of Origin |
CN |
| Polarisation |
Linear |
