When you work with remote sensors, dash cams, or mobile terminals, a weak cellular signal can cause missed data, dropped calls, and frustrated users. The problem matters because every lost packet can mean a lost sale, a safety risk, or a costly service call. The Antenova Allani SR4L069 4G/5G Antenna captures more signal, reduces outages, and lets your device stay connected even in challenging locations.

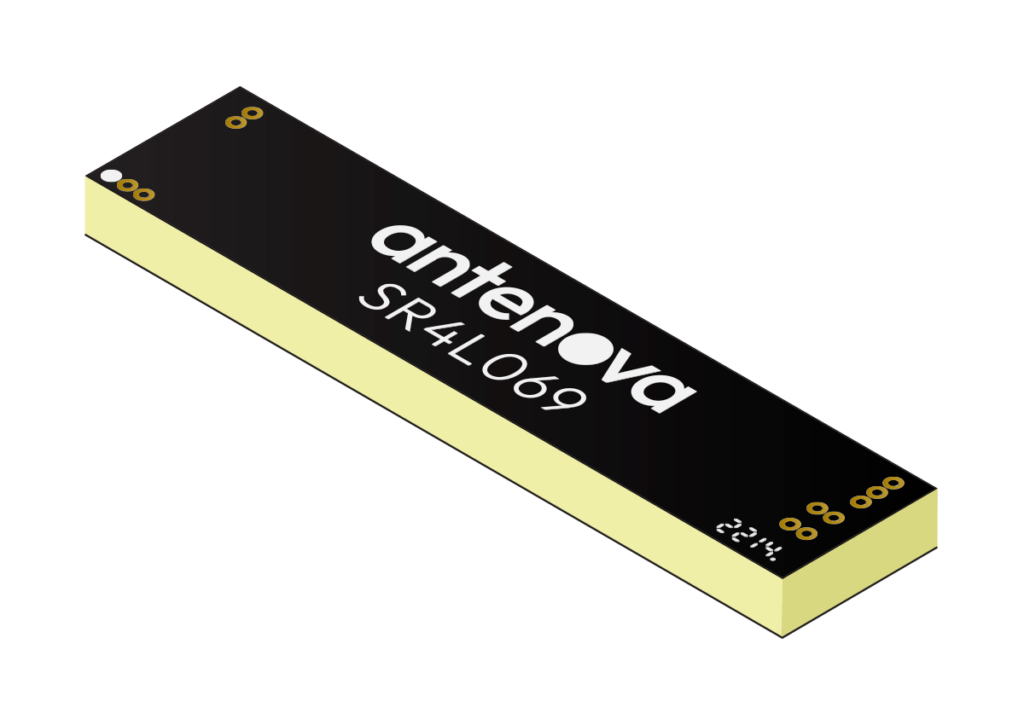

Antenova Allani SR4L069 4G/5G Antenna with Antenova
Boost your signal instantly with a tiny, high-performance antenna. This is a PCB-mounted chip antenna that works on 4G and 5G networks. You need it when your device keeps losing signal in a parking garage, a rural field, or a moving vehicle. Antenova delivers a reliable link so you can stream video, send telemetry, or complete a transaction without interruption.
Benefits
- Stronger signal gives fewer dropped calls and smoother video streams.
- Stable data flow reduces retransmissions and saves battery life.
- Easy PCB mount means no extra cabling or space-consuming brackets.
- Wide frequency range covers most 4G and 5G carriers worldwide.
- Low profile design blends into tight enclosures.
Key Features
- Frequency range: 617 MHz - 3.8 GHz.
- Supports six cellular bands, including LTE and NBIoT.
- Chip-style PCB trace design for easy soldering.
- Gain options from -0.2 dBi to 5.4 dBi.
- Impedance: 50 Ohms, matching standard RF circuits.
- VSWR values as low as 2.2:1 for efficient power transfer.
- Operating temperature: -40 C to +140 C.
- Compact size: 45 mm 10 mm 3.3 mm.
- Linear polarization for consistent signal reception.
- SMD/SMT termination for quick assembly.
- Suitable for telematics, pico base-stations, POS, IoT, CCTV, and drone applications.
Specifications
| Manufacturer: |
Antenova |
| Product Category: |
Antennas |
| RoHS: |
|
| Product Type: |
Cellular Antennas - GSM, LTE, 2G/3G/4G/5G |
| Product: |
PCB Antennas |
| Minimum Frequency: |
617 MHz |
| Maximum Frequency: |
3.8 GHz |
| Protocol - Cellular, NBIoT, LTE: |
3G/4G/5G, Cellular (NBIoT, LTE), DSC, PCS, GSM, WCDMA |
| Mechanical Style: |
PCB Trace |
| Style: |
Chip |
| Gain: |
- 0.2 dBi, 1.6 dB, 4.1 dBi, 3.4 dBi, 5.1 dBi, 5.4 dBi |
| Bandwidth: |
207 MHz, 136 MHz, 460 MHz, 100 MHz, 190 MHz, 500 MHz |
| Impedance: |
50 Ohms |
| VSWR: |
3.6:1, 3.3:1, 2.3:1, 2.2:1, 2.4:1, 2.3:1 |
| Minimum Operating Temperature: |
- 40 C |
| Maximum Operating Temperature: |
+ 140 C |
| Number of Bands: |
6 Band |
| Mounting Style: |
PCB Mount |
| Termination Style: |
SMD/SMT |
| Centre Frequency: |
720.5 MHz, 892 MHz, 1940 MHz, 2350 MHz, 2595 MHz, 3550 MHz |
| Application: |
Telematics, Network Devices, Pico Base-Stations, Remote Motoring, POS, M2M, IoT, CCTV, Drone |
| Length: |
45 mm |
| Width: |
10 mm |
| Height: |
3.3 mm |
| Series: |
Allani |
| Packaging: |
Reel, Cut Tape |
| Brand: |
Antenova |
| Country of Origin: |
CN |
| Frequency Range: |
617 MHz to 3.8 GHz |
| Polarisation: |
Linear |
