Tired of displays that flicker, dim, or fail in tough environments? The Anxin RCIM-19 19" SXGA Rack Mount Industrial LCD Monitor is built for factories, data centers, and any place where reliability matters. It gives you a clear, bright picture even when dust, vibration, or extreme temperatures are part of the job. If you need a screen that won’t quit on you, this monitor is the answer.

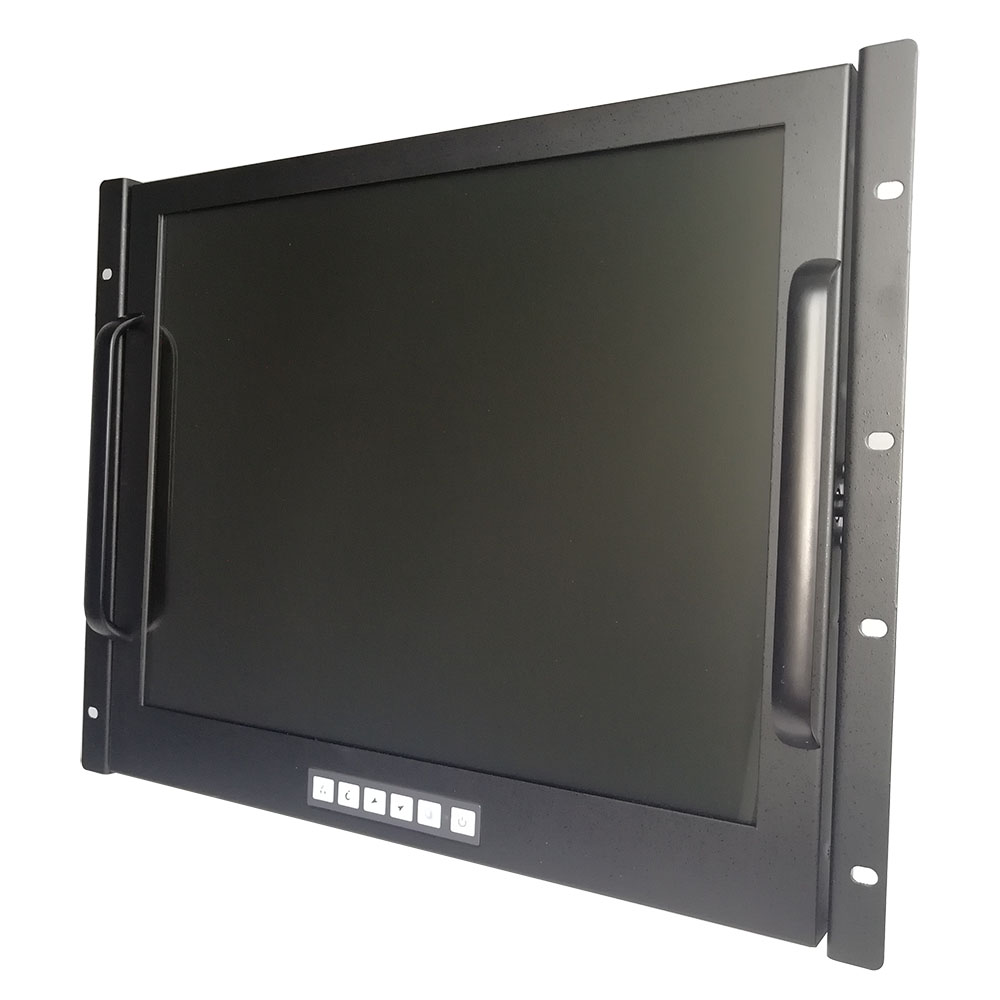

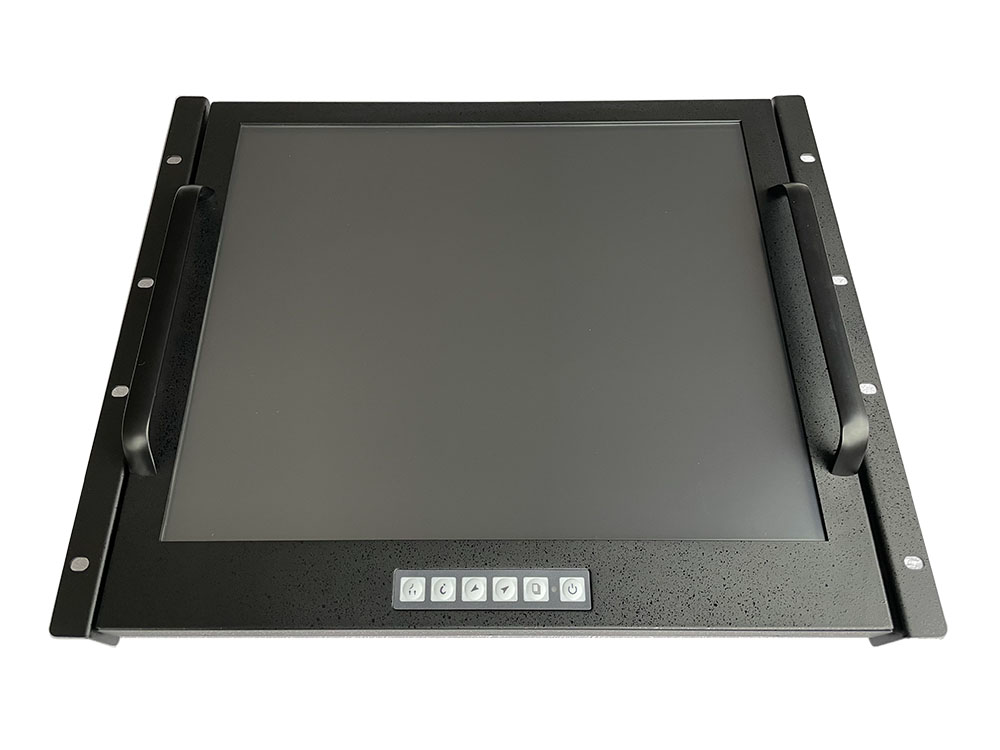

Anxin RCIM-19 19" SXGA Rack Mount Industrial LCD Monitor
Industrial workspaces often suffer from poor visibility and frequent equipment failure. A dim or unstable screen can cause mistakes, slow down production, and increase downtime. The Anxin monitor solves these issues with a rugged steel chassis, 300 cd/m² brightness, and a wide 160° viewing angle. You get a stable, vivid display that keeps your operations running smoothly, no matter the conditions.
Key Features
- 19-inch SXGA TFT LCD with 1280 × 1024 resolution.
- 16.7 million colors for accurate visual detail.
- 1000:1 contrast ratio for deep blacks and bright whites.
- Pixel pitch 0.294 mm for sharp images.
- Operating temperature -10 °C to 60 °C.
- Anti-vibration 17 Hz-500 Hz, 1 G PTP.
- CE, FCC, ROHS certified for global compliance.
- Power options 100-240 V AC or 12 V DC external adapter.
Specifications
| Display Type |
19" SXGA TFT LCD |
| Resolution |
1280 x 1024 |
| Max. Color |
16.7M |
| Luminance |
300 cd/m² |
| Viewing Angle |
160° (H), 160° (V) |
| Pixel Pitch |
0.294 x 0.294 mm |
| Contrast Ratio |
1000:1 |
| Response Time |
5 ms |
| LCD MTBF |
50,000 hrs |
| Input Signals |
VGA, HDMI/DVI, Audio |
| Power Supply |
100~240V AC, 50/60Hz, DC 12V external AC adapter |
| Construction |
Heavy duty steel rackmountable chassis |
| Operating Temperature |
-10°C~60°C (-14~140°F) |
| Storage Temperature |
-20°C~70°C (-4~158°F) |
| Storage Humidity |
5%~95% non-condensing |
| Anti-Vibration |
17HZ-500 HZ, 1G PTP |
| Anti-Shock |
1G / peak (11 msec) |
| Certification and Approvals |
CE/FCC/ROHS |
| Dimensions (W x H x D) |
482.6 x 377 x 48 mm |
