Tired of slow file transfers and constant storage upgrades? The AOOSTAR WTR MAX 8845, AMD R7 PRO 8845HS CPU, Barebone 11 Bay NAS gives you a powerful, expandable hub that keeps all your data fast and safe. It is built for small offices, creative studios, and power users who need reliable storage without endless bottlenecks.

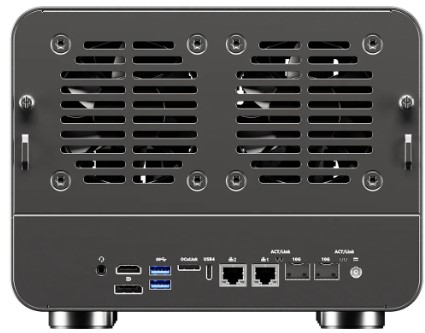

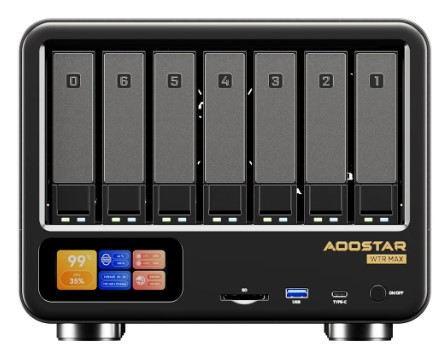

AOOSTAR WTR MAX 8845, AMD R7 PRO 8845HS CPU, Barebone 11 Bay NAS
Many users struggle with limited drive bays and weak processors that slow down backup and media streaming. When a system cannot handle multiple drives or high-speed networking, work stalls and data risk grows. This NAS solves the issue by pairing an 8-core AMD Ryzen 7 PRO CPU with 11 drive slots, fast 10 GbE ports, and PCIe 4.0 NVMe support, delivering smooth performance for large files and many users at once.
Key Features
- AMD Ryzen 7 PRO 8845HS, 8 cores / 16 threads.
- Base 3.8 GHz, boost up to 5.1 GHz.
- 12-core Radeon 780M integrated graphics, DirectX 12.
- 2 DDR5-5600 SO-DIMM slots, up to 128 GB ECC RAM.
- 6 x 3.5 SATA bays (up to 24 TB each) plus 5 x M.2 2280 NVMe slots.
- 2 x 10 GbE SFP+ (Intel 82599/X710) and 2 2.5 GbE RJ45 ports.
- HDMI 2.1 and DisplayPort 1.4 for triple-display output.
- OCuLink slot for external GPU expansion.
- VC heat sink for CPU and three dedicated hard-drive fans.
- Built-in AOOSTAR-NAS screen with monitoring software.
- Supports external GPU via OCuLink for extra graphics power.
Specifications
| Processor |
|
| CPU |
AMD Ryzen™ 7 PRO 8845HS |
| CPU Cores / Threads |
8 Cores / 16 Threads |
| Base Clock |
3.8 GHz |
| Max Boost Clock |
Up to 5.1 GHz |
| Cache |
8 MB L2 Cache, 16 MB L3 Cache |
| Graphics |
|
| Graphics |
AMD Radeon™ 780M Integrated Graphics |
| Graphics Cores |
12 Cores |
| Graphics Frequency |
2700 MHz |
| DirectX |
DirectX 12 |
| Memory |
|
| Memory Slots |
2 × DDR5-5600 SO-DIMM |
| Maximum Memory |
Up to 128 GB |
| ECC Support |
Yes |
| Storage |
|
| Drive Bays |
11 Bays Total |
| 3.5" SATA Bays |
6 × 3.5" SATA HDD (Up to 6 × 24 TB) |
| M.2 Slots |
5 × M.2 2280 NVMe SSD |
| M.2 Interface |
1 × PCIe 4.0 ×2, 2 × PCIe 4.0 ×2, 2 × PCIe 4.0 ×1 |
| Networking |
|
| 10GbE |
2 × 10GbE SFP+ (Intel 82599/X710) |
| 2.5GbE |
2 × 2.5GbE RJ45 (Intel I226-V) |
| Video Output |
|
| HDMI |
1 × HDMI 2.1 |
| DisplayPort |
1 × DisplayPort 1.4 |
| Triple Display |
HDMI + DisplayPort + USB4 |
| Front / Rear I/O |
|
| USB4 |
1 × USB4 |
| USB 3.2 Gen 2 |
2 × USB 3.2 Gen 2 |
| USB 3.2 Gen 1 |
1 × USB 3.2 Gen 1 |
| OCuLink |
1 × OCuLink (PCIe 4.0 ×4, Does not occupy NVMe slot, No hot-swap support) |
| Audio |
1 × 2-in-1 Audio Jack (3.5 mm) |
| Card Reader |
1 × microSD Card Slot |
| DC Input |
1 × DC Power Connector |
| Cooling |
|
| CPU Cooling |
VC Heat Sink |
| System Cooling |
3 × Hard Drive Cooling Fans |
| Features |
|
| Monitoring Display |
Built-in Display with AOOSTAR-NAS Screen Control Software for CPU, GPU, RAM and System Monitoring |
| External GPU Support |
Yes, via OCuLink |
| NAS Support |
Supports 6 × SATA HDD + 5 × M.2 NVMe SSD |
