Imagine a server room that warns you before a problem becomes a disaster. The APC NetBotz 750 1U Rack-Mount Security and Environmental Monitoring Appliance does exactly that. It watches temperature, humidity, doors, leaks and even video feeds, sending alerts the moment something is out of range. If you have ever lost hours of uptime because a sensor was missed, this device gives you the eyes and ears you need to protect your equipment.

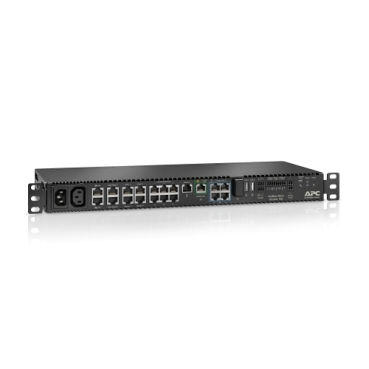

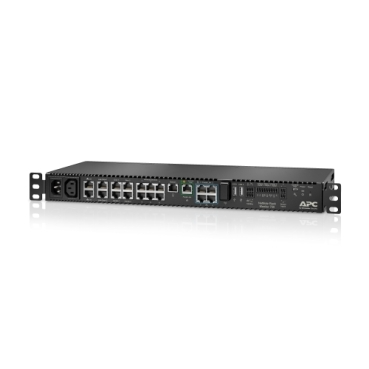

APC NetBotz 750 1U Rack-Mount Security and Environmental Monitoring Appliance
Your data center or small server closet can suffer from overheating, water leaks, or unauthorized access. Those issues not only cause downtime but also raise repair costs and risk data loss. The NetBotz 750 solves this by combining environmental sensors, door contacts, and up to four cameras into a single 1U unit that fits neatly in any rack. It talks to your network using standard protocols, so you can see real-time status on any browser or management console. In short, it turns a silent, vulnerable rack into a monitored, secure environment.
Key Features
- 1U rack-mount form factor (1.7 in high)
- Supports up to 12 sensor pods and 78 universal sensors
- Four integrated IP cameras with up to 30 fps and 1280 × 1024 resolution
- Six universal sensor ports for temperature, humidity, smoke, leak, vibration, door contact, etc.
- RJ-45 10/100/1000 Base-T network interface
- HTTPS, SNMP v1/v3, SSH v2, DHCP, A-Link for secure communication
- Front and rear mounting options, horizontal rack placement
- Compliant with CSA, FCC, UL, CE and other international standards
- Operating temperature range 32-104 °F (0-40 °C) and humidity up to 95 %
Specifications
| Range of Product |
Netbotz |
| Number of Rack Unit |
1U |
| Communication Port Protocol |
A-Link, DHCP, HTTPS, IPv4, SNMP v1, SNMP v3, SSH v2, TCP/IP |
| Provided Equipment |
Rack Mounting brackets, Temperature/Humidity Sensor, USB cable |
| Product Compatibility |
Rack Sensor Pod 150, Room Sensor Pod 155 |
| Camera Frame Rate |
Up to 30 fps |
| Display Resolution |
Up to 1280 × 1024 |
| APC Universal Sensors Supported |
0-5V, Door contact, Dry Contact, Humidity, Smoke, Fluid Spot Leak, Temperature, Vibration |
| Number of Universal Sensor Ports |
6 |
| Number of Sensor Pods Supported |
12 |
| Number of Universal Sensors Supported |
78 |
| Number of Cameras Supported |
4 |
| Color |
Black |
| Height |
1.7 in (4.3 cm) |
| Width |
17.008 in (43.2 cm) |
| Depth |
7.008 in (17.8 cm) |
| Mounting Location |
Front, Rear |
| Mounting Preference |
No preference |
| Mounting Mode |
Rack-mounted |
| Mounting Position |
Horizontal |
| Standards |
CSA C22.2 No. 60950-1-03, FCC Part 15 Class A, ICES-003, UL 60950-1 |
| Product Certifications |
2014/30/EU, AS/NZS 3548 (C-Tick) Class A, CE, EMC Directive 2004/108/EC, VCCI Class A |
| Ambient Air Temperature for Operation |
32…104 °F (0…40 °C) |
| Operating Altitude |
0...10000 ft |
| Relative Humidity |
0…95% |
| Ambient Air Temperature for Storage |
5…149 °F (-15…65 °C) |
| Storage Altitude |
0…50000 ft (0…15240 m) |
| Storage Relative Humidity |
0…95% |
| Communication Network Type |
RJ-45 10/100/1000 Base-T |
