Experience the perfect blend of power and silence with the Arctic F12 PWM PST 120 mm Case Fan. Designed for demanding builds, this fan delivers 90.1 m³/h airflow while staying whisper‑quiet, so you can push your system harder without the noise. Upgrade your cooling today and feel the difference in performance and comfort.

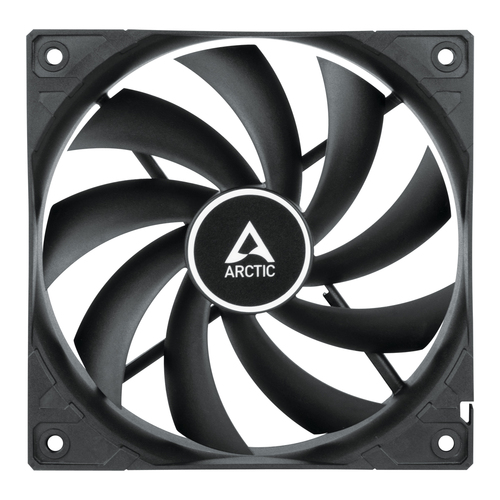

Arctic F12 PWM PST 120 mm Case Fan, 230–1350 RPM, 90.1 m³/h Airflow,QuietCooling

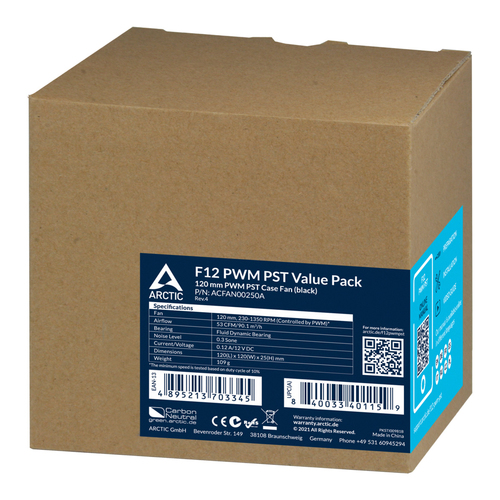

This 5‑fan pack features Fluid Dynamic Bearing technology for smooth, long‑lasting operation. PWM support lets you fine‑tune speed from 230 to 1350 RPM, matching cooling to your workload. With a noise level of only 0.3 sone, you get strong airflow without distraction.

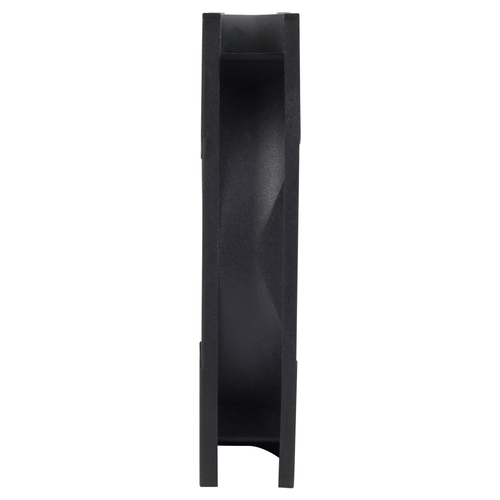

The fans measure 120 mm square and are only 25 mm thick, fitting easily into most cases. A 0.4 m cable and dual 4‑pin + 4‑pin PST connectors simplify wiring and enable daisy‑chaining for clean cable management.
Operating at 12 V and drawing just 0.12 A, these fans are energy‑efficient and reliable. They work in temperatures from 0 °C to 40 °C, making them ideal for a wide range of computer case environments.
Benefits
- High airflow of 90.1 m³/h ensures efficient heat removal.
- Ultra‑quiet operation at only 0.3 sone keeps your workspace peaceful.
- PWM control provides precise speed adjustment for optimal cooling.
- Fluid Dynamic Bearing delivers long lifespan and low friction.
Uses of the product
- Cooling high‑performance CPUs and GPUs.
- Maintaining optimal temperature in compact HTPC builds.
- Improving airflow in workstation and server cases.
- Supporting overclocked systems that generate extra heat.
Features
- 5‑fan pack with dual 4‑pin + 4‑pin PST connectors for easy daisy‑chaining.
- Speed range 230‑1350 RPM with PWM support for dynamic cooling.
- 12 V operation and 0.12 A rated current for energy efficiency.
- Compact 120 mm size, 25 mm thickness for versatile mounting options.
Specifications
| Performance |
| Operating temperature (T-T) |
0 - 40 °C |
| Quantity per pack |
5 pc(s) |
| Bearing type |
Fluid Dynamic Bearing (FDB) |
| Pulse-width modulation (PWM) support |
Yes |
| Minimum air pressure |
1 mmH2O |
| Airflow |
90.1 m³/h |
| Maximum airflow |
53 cfm |
| Noise level |
0.3 sone |
| Rotational speed (max) |
1350 RPM |
| Rotational speed (min) |
230 RPM |
| Compatible processor series |
Not supported |
| Supported processor sockets |
Not supported |
| Fan diameter |
12 cm |
| Type |
Fan |
| Suitable location |
Computer case |
| Design |
| Fan connector |
4-pin + 4-pin |
| Number of fans |
5 fan(s) |
| Product colour |
Black |
| Power |
| Rated current |
0.12 A |
| Starting voltage |
6 V |
| Voltage |
12 V |
| Weight & dimensions |
| Package weight |
692 g |
| Package height |
130 mm |
| Package depth |
127 mm |
| Package width |
123 mm |
| Cable length |
0.4 m |
| Weight |
109 g |
| Height |
25 mm |
| Depth |
120 mm |
| Width |
120 mm |
| Packaging content |
| Package type |
Box |
| Other features |
| Airflow |
90.1 m³/h |
| Operating temperature (T-T) |
0 - 40 °C |
| Country of origin |
Hong Kong |
| Noise level |
0.3 sone |
