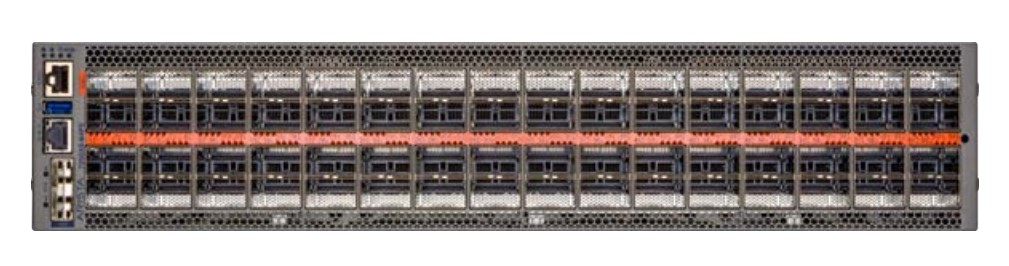

Arista DCS-7060X6-64PE-F 64-Port 800G Data Center Switch
The Arista DCS-7060X6-64PE-F is a high-performance 800G data center switch designed for demanding high-bandwidth networking environments. It provides 64 x 800G ports and supports up to 128 x 400 GbE, 256 x 200 GbE, and 320 x 100 GbE ports.
This Arista data center switch delivers 51.2 Tbps full-duplex throughput, expandable to 102.4 Tbps, with a packet processing rate of 212.2 Bpps. With 700 ns latency, it is designed for high-speed data center traffic and demanding network workloads.
The switch is powered by a multi-core x86 CPU with 32 GB of system memory and 240 GB of flash storage memory. It also provides 165 MB of packet buffer memory to support efficient handling of high-volume network traffic.
For management and administration, the Arista DCS-7060X6-64PE-F includes one 10/100/1000 management port, one RJ-45 RS-232 serial port, and one USB port. The system includes two hot-swappable power supplies with 1+1 redundancy and four hot-swappable fans with N+1 redundancy.
The Arista DCS-7060X6-64PE-F features front-to-rear airflow and a rackmount form factor measuring 17.32 x 3.46 x 23.9 inches. It has a typical power draw of 647 W and maximum power draw of 2218 W, making it suitable for high-performance data center deployments.
Key features
-
64 x 800G ports
-
Up to 128 x 400 GbE ports
-
51.2 Tbps full-duplex throughput
-
212.2 Bpps packet processing rate
-
700 ns latency
-
32 GB system memory
-
165 MB packet buffer memory
-
Redundant hot-swappable power supplies and fans
Specifications:
| Ports |
64x 800G QSFP-DD128x 2x 400G |
| Max 800G Ports |
64 |
| Max 400 GbE Ports |
128 |
| Max 200 GbE Ports |
256 |
| Max 100 GbE Ports |
320 |
| Max 50 GbE Ports |
320 |
| Throughput (FDX) |
51.2 (102.4) Tbps |
| Packets/Second¹ |
212.2 Bpps |
| Latency |
700 ns |
| CPU |
Multi-Core x86 |
| System Memory |
32 Gigabytes |
| Flash Storage Memory |
240 Gigabytes |
| Packet Buffer Memory |
165 MB |
| 10/100/1000 Mgmt Ports |
1 |
| RS-232 Serial Port |
1 (RJ-45) |
| USB Ports |
1 |
| Hot-swappable Supplies |
2 (1+1 redundant) |
| Hot-swappable Fans |
4 (N+1 redundant) |
| Airflow Direction |
Front to Rear |
| Typical/Max Power Draw |
647W/2218W |
| Size (WxHxD) |
17.32 x 3.46 x 23.9 in(44 x 8.79 x 60.7 cm) |
| Weight |
46 lbs (20.86 kg) |
| Fan Tray |
FAN-7021-H6-RD |
| Power Supplies |
PWR-2421-HV-AC/RE-DCEDPWR-2411-MC-RED |
| EOS Feature Licenses |
LIC-FC-4 |
| Minimum EOS |
4.32.2 |
