Need a clear, reliable way to see machine data from a distance? The Ascon P30 Remote HMI gives you a bright four-digit display and a simple bar-graph indicator so you can read values instantly. It solves the problem of hidden or hard-to-read panels in noisy factories, where a quick glance can prevent mistakes and downtime.

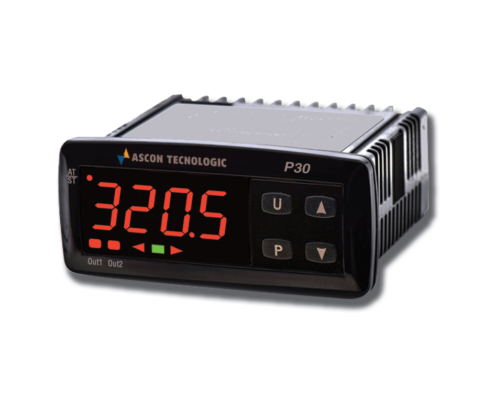

Ascon P30, 4 digit Display 500ms Sampling Rate 50mA Power Consumption Remote HMI
Operators often struggle with slow updates and confusing interfaces. When data lags, decisions are delayed and errors rise. This device updates every 500 ms, shows four red digits and three LED bars, and uses only 50 mA of power. The result is fast, visible feedback that keeps you in control without adding extra wiring or power load.
Key Features
- Model P30 remote operator panel.
- Single line display with four red digits, 12 mm height.
- Three LED bar-graph indicators.
- 500 ms sampling rate for near real-time data.
- Optional internal buzzer for acoustic alarm.
- TTL Modbus (non-isolated) communication.
- 38400 baud Modbus-RTU protocol.
- 9 V DC supply taken from the controller.
- Dimensions 78 x 35 x 61 mm, weight about 120 g.
- Flush-mountable in a 71 x 29 mm panel hole.
- IP65 front protection with gasket sealing.
- Screw terminal block 2.5 mm for easy wiring.
Specifications
| General Information |
|
| Model |
P30 |
| Product Type |
Remote Operator Panel |
| Display |
|
| Display |
Single; 4 red digits, h 12 mm + Bargraph 3 LED |
| Functional |
|
| Sampling Rate |
500 ms |
| Acoustic Alarm |
Internal buzzer (optional) |
| Serial Communication |
TTL Modbus not isolated |
| Protocol |
ModBus-RTU (BUS) |
| Baud Rate |
38400 baud |
| Power & Electrical |
|
| Power Supply |
9 Vdc supplied by the controller |
| Power Consumption |
50 mA |
| Physical Characteristics |
|
| Dimensions / Weight |
78 × 35 mm – depth 61 mm / 120 g approx. |
| Mounting |
Flush in panel in 71 × 29 mm hole |
| Front Protection Degree |
IP65, mounted on panel with gasket |
| Connections |
Screw terminal block 2.5 mm² |
| Environmental Conditions |
|
| Operating / Storage Temperature |
0 ... 50°C (32 ... 122°F) / -20 ... 70°C (-4 ... 158°F) |
| Operating Humidity |
20 ... 95 RH% without condensation |
| Compliance |
|
| Conformity |
Directive EMC 2004/108/EC (EN 61326) – Directive LV 2006/95/EC (EN 61010-1) |
