Tired of unreliable sensor signals that interrupt your automation line? The ASCON TECNOLOGIC AI-02UI gives you a sturdy, remote analog input solution that captures temperature, pressure, current or voltage with high precision. It fits into a CANopen network and sends clean data to your controller, so you never have to guess why a process stopped. If you need accurate, isolated measurements without wiring chaos, this module is the answer.

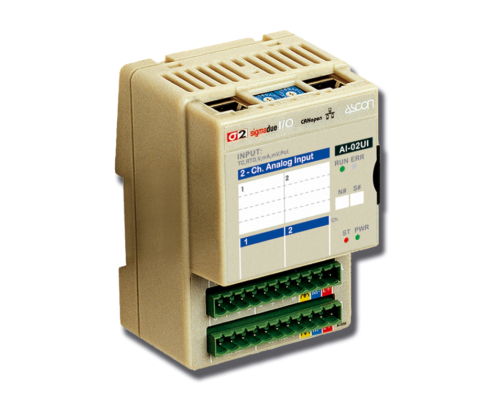

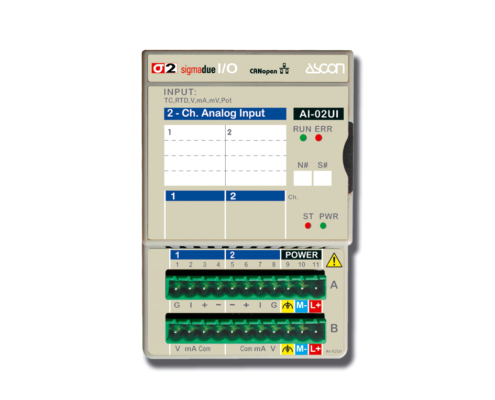

ASCON TECNOLOGIC AI-02UI, 24 Vdc 16 bit 2-channel Remote Analog Input module
Many small to medium factories struggle with noisy analog signals that cause false alarms and costly downtime. The lack of electrical isolation makes the whole system vulnerable to voltage spikes, and the limited resolution of cheap modules hides small but important changes. The AI-02UI removes these worries by offering 16-bit resolution, 0.1 % full-scale accuracy, and 2.5 kV isolation on each channel. It talks over CANopen, so you can place it near the sensor and keep long cables short, reducing interference and maintenance effort.
Key Features
- Two universal isolated analog inputs.
- Supports J, K, L, N, R, S, T thermocouples.
- Handles Pt100 and Pt1000 RTD types.
- 16-bit resolution with 0.1 % FS accuracy.
- Conversion time 20 ms (120 ms for RTD).
- 24 VDC supply tolerance -15 % to +25 %.
- 2.5 kV three-way electrical isolation.
- Over-voltage protection up to 30 V.
- DIN-rail mounting, compact 65 110 66 mm size.
- CE and UL listed for safety compliance.
Specifications
| Model |
AI-02UI |
| Module Type |
CANopen analogue I/O module |
| Analogue Inputs |
2 universal isolated analogue inputs |
| Supported Input Types |
Thermocouples, RTD, mA, mV, V, potentiometers, custom sensors |
| Thermocouple Types |
J, K, L, N, R, S, T |
| RTD Types |
Pt100, Pt1000 |
| Resolution |
16-bit |
| Accuracy |
±0.1% FS (±0.05% FS for RTD) |
| Conversion Time |
20 ms (120 ms for RTD) |
| Power Supply |
24 VDC (−15% to +25%) |
| Power Consumption |
2.5 W |
| Communication Protocol |
CANopen (CiA DS301 / CiA DS404) |
| Electrical Isolation |
2.5 kVp (3-way isolation) |
| Overvoltage Protection |
30 V |
| Input Impedance |
mA: <300 Ω; mV: >100 MΩ; V: >10 kΩ |
| Operating Temperature |
−10°C to +65°C |
| Storage Temperature |
−40°C to +85°C |
| Operating Humidity |
5–95% RH, non-condensing |
| Protection Rating |
IP20 |
| Mounting |
DIN rail |
| Dimensions (L × H × W) |
65 × 110 × 66 mm |
| Weight |
220 g |
| Certifications |
CE, UL Listed |
