Outdoor Wi-Fi 7 AP

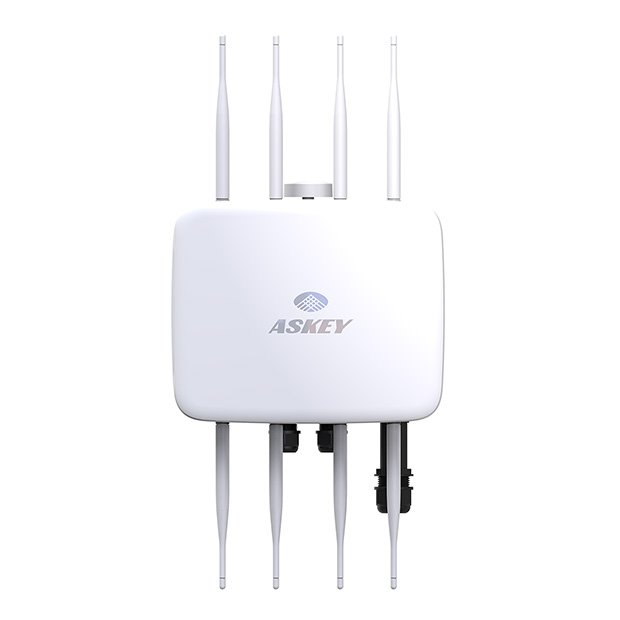

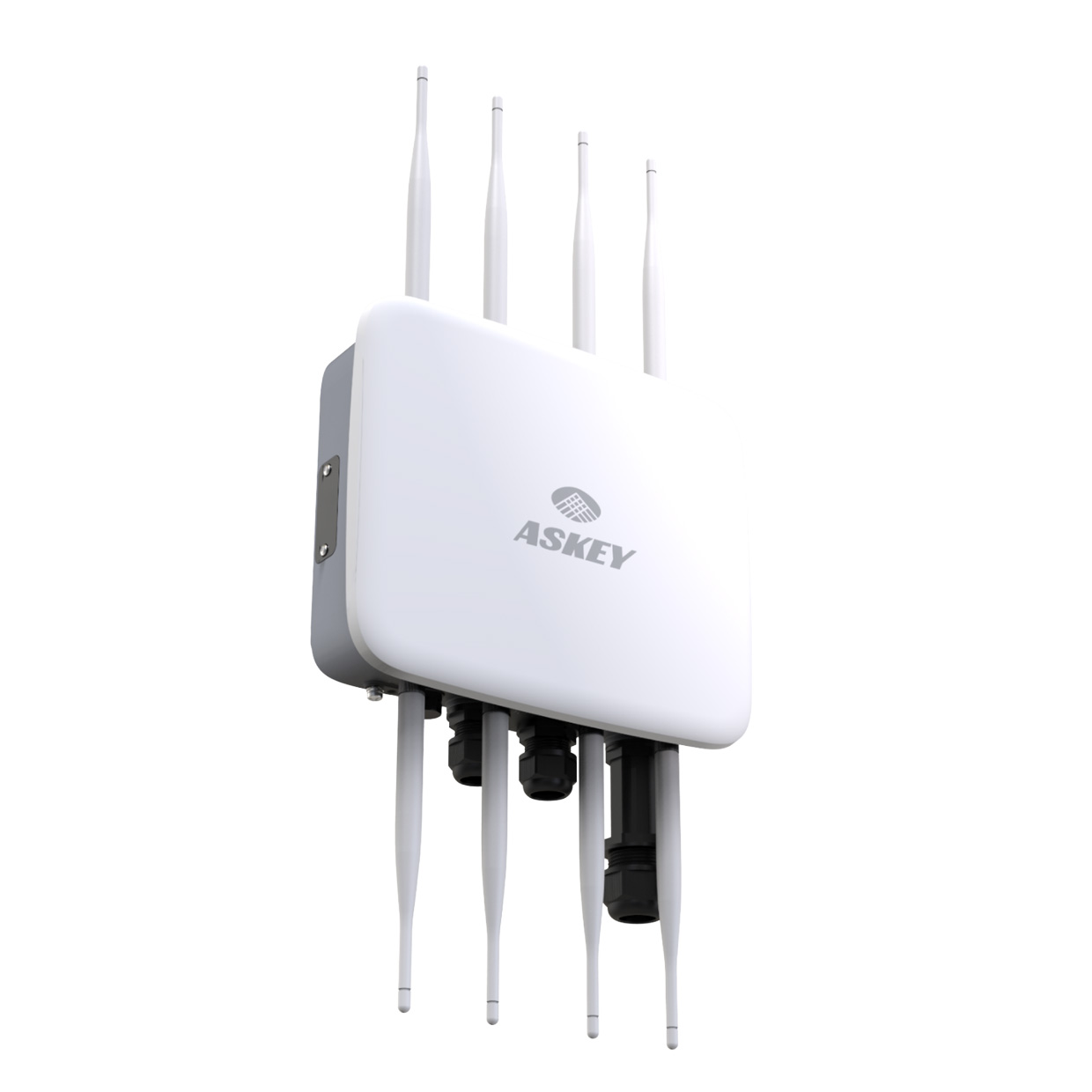

Askey EAO2622P is a ruggedized Wi-Fi 7 outdoor access point, designed specifically to perform reliably in harsh weather conditions. With tri-band concurrent support, it delivers 12 spatial streams (4x4:4 in 2.4 GHz, 4x4:4 in 5 GHz, 4x4:4 in 6 GHz). It also supports Wi-Fi 7 technologies, including 320MHz bandwidth, 4096-QAM, and Multi-Link Operation (MLO), offering exceptional network capacity and throughput. Additionally, it supports AFC (Automated Frequency Coordination) for 6 GHz Wi-Fi. The Ethernet interface is combined with PoE++ (Power over Ethernet) which eliminates extra power cable for
installation.

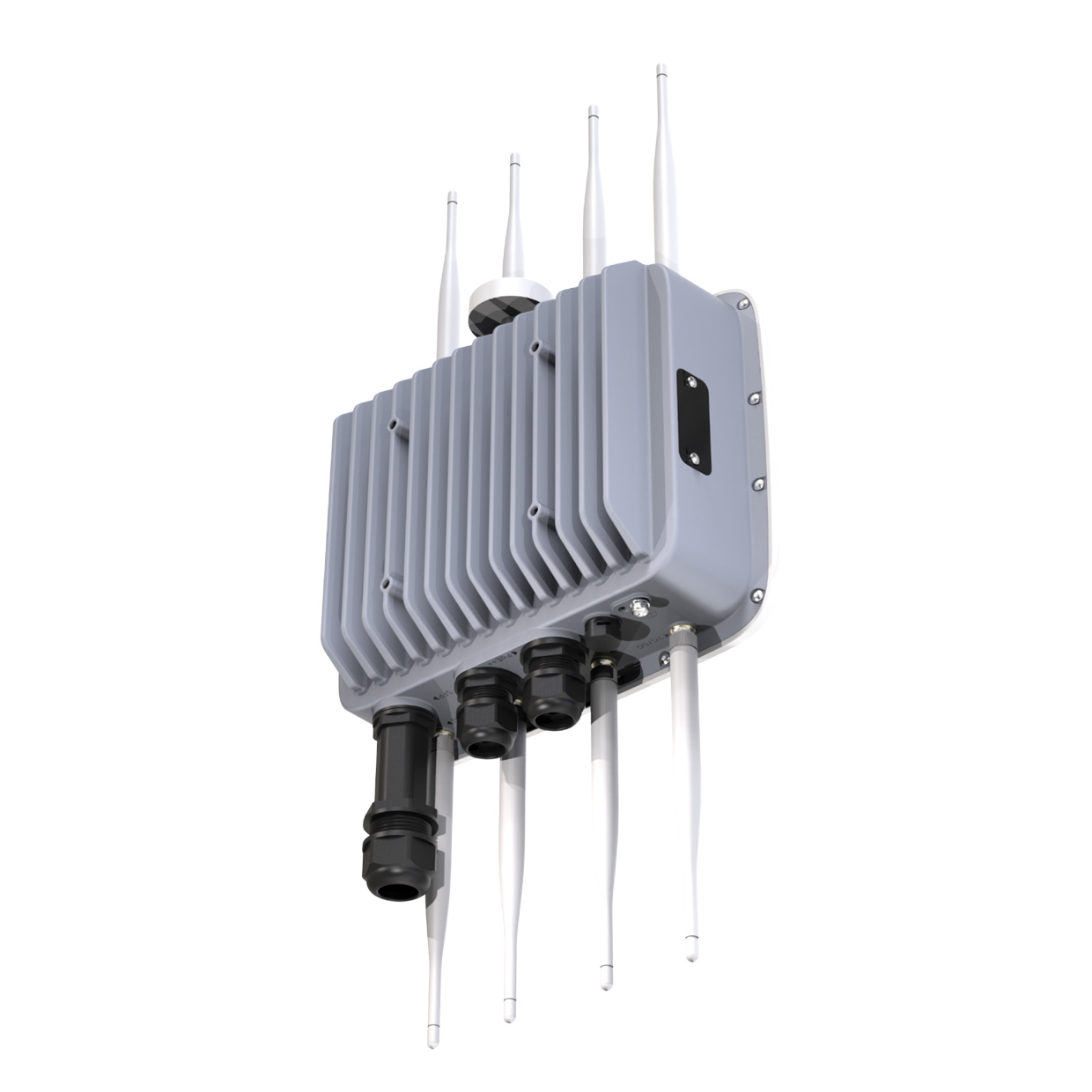

The EAO2622P features an IP67-rated, dust-, water- and rust-resistant housing, making it highly durable and versatile for deployment. With the included mounting kit, the EAO2622P is easy and secure to be mounted on poles or wall. Proper grounding is essential to protect both the EAO2622P and the connected devices when installed and exposed to the elements.
As a carrier-grade AP, it supports a wide array of value-added applications required by enterprises and organizations, such as bandwidth control, user authentication, centralized WLAN management with TR069/TR369, and more.
Specifications:
| Hardware |
Qualcomm Quad-Core Cortex-A73 2.2GHz, 2GB DDR4, 256MB NAND Flash |
| Interfaces |
2 × 100M/1G/2.5G/5G/10G Ethernet (PoE++ for one port),
Reset Button, SFP+, LED, GPS, IP67, Pole & wall mountable
|
| Wi-Fi 7 |
[email protected] + 4x4@5GHz + 4x4@6GHz |
| Omni External Antenna Gain |
[email protected], 3.9dBi@5GHz, 3.1dBi@6GHz |
| Antenna |
4 × dual-band 2.4G/5G Wi-Fi external antennas,
4 × single-band 6G Wi-Fi external antennas,
1 × GPS internal antenna
|
| BE19000 Throughput |
[email protected], 5764Mbps@5GHz, 11528Mbps@6GHz |
| Software |
Local Web GUI Management, DHCP/Static IP,
Dynamic VLAN, WMM, ACL, ATF, MLO, IPv4/IPv6/IPv4v6, TR069/TR181
|
| Dimensions |
210 × 256 × 96 mm without External Antenna (HxWxD)
519 × 256 × 96 mm with External Antenna (HxWxD)
|
| Operating Environment |
Temperature: -40°C ~ 70°C
Humidity: 10% ~ 95% non-condensing
|
