Tired of buffering videos and laggy games? The Askey RTM7230T Tri-Band Wi-Fi 7 Router gives you a smooth, fast connection for every device in your home. It replaces weak, old routers that cant keep up with 4K streaming, online meetings, or many smart gadgets at once. If you need reliable speed and coverage, this router is the answer.

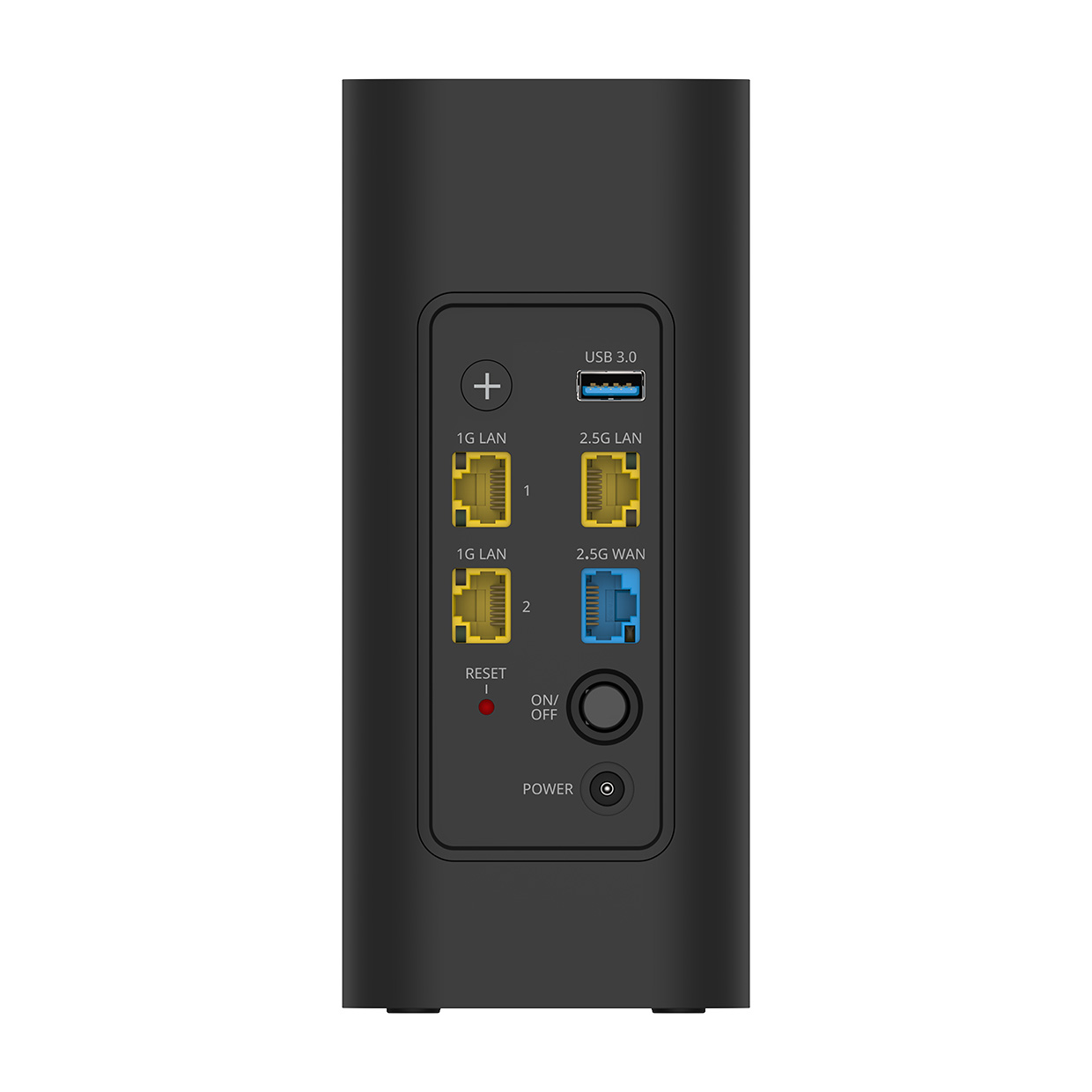

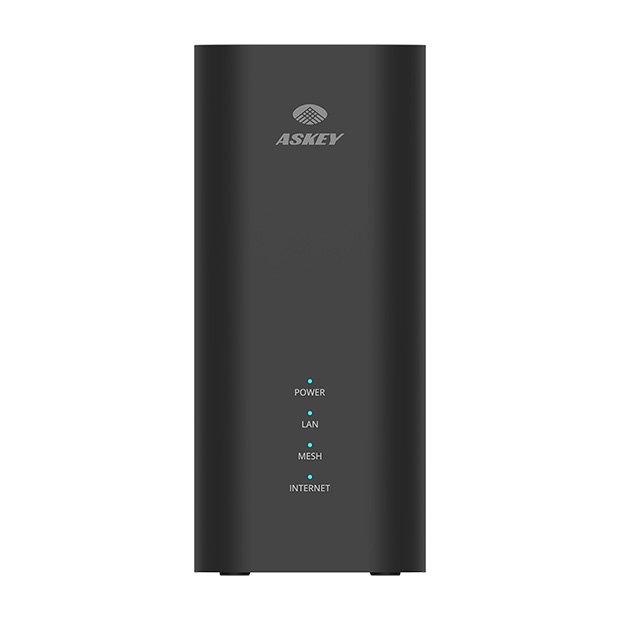

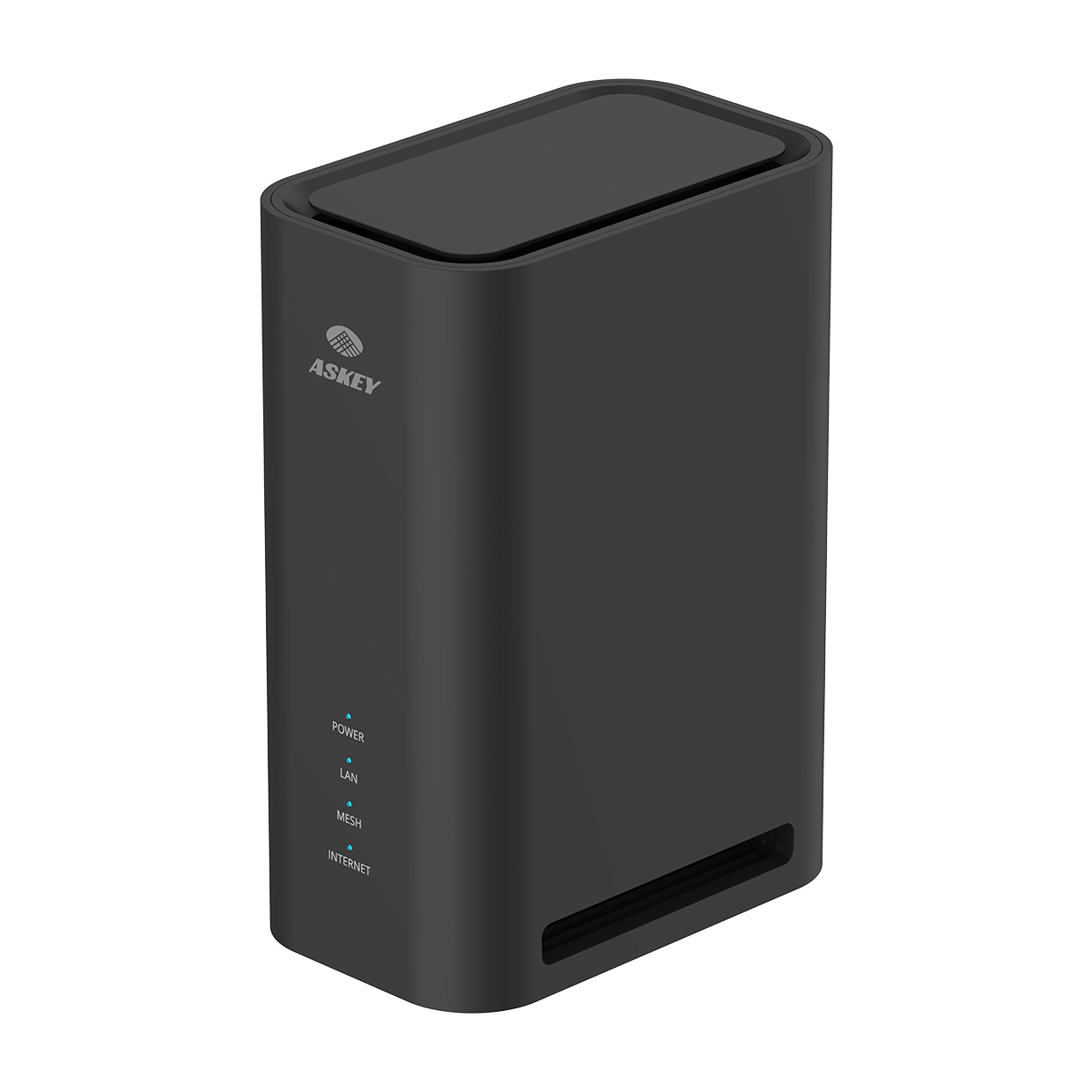

Askey RTM7230T Tri-Band Wi-Fi 7 Router
Many families struggle with crowded Wi-Fi that drops packets during peak use. When the signal cant handle multiple streams, work suffers and entertainment stops. The Askey router solves this by using three separate bands, including the new 6 GHz spectrum, to spread traffic evenly. This means you get higher speeds, lower latency, and a stable link for every device, now and as more Wi-Fi 7 gadgets appear.
Usages of Askey
Use it in a living room for 4K movies and family streaming. Place it in a home office for video calls and large file uploads without lag. Connect gaming consoles for fast, responsive play. It also supports smart-home hubs, security cameras, and voice assistants, keeping every IoT device online. Small home offices can rely on the same unit for secure VPN work and cloud backups.
Benefits
- Stream 4K movies without pauses, even when several devices are online.
- Enjoy low-latency gaming on any console or PC.
- Support dozens of phones, tablets, and smart gadgets at full speed.
- Set up quickly with WPS and an intuitive web GUI.
- Future-proof performance for the next generation of Wi-Fi devices.
Key Features
- Tri-band Wi-Fi 7 (2.4 GHz, 5 GHz, 6 GHz) with up to 5.7 Gbps on 6 GHz.
- MediaTek Filogic chipset for efficient processing.
- One 2.5 GbE WAN port for fast internet uplink.
- One 2.5 GbE LAN port plus two 1 GbE LAN ports for wired devices.
- MLO and auto-channel selection keep the best band active.
- WPA3, WPA2, and guest network protect your data.
- USB 3.0 Type-A port for network storage or printer sharing.
- Parental controls and MAC/URL filtering for safe browsing.
- Mesh-ready design lets you expand coverage with additional nodes.
- Four LED indicators show power, LAN, mesh, and internet status.
- Compact 80 182 130 mm size fits any home dcor.
- Easy reset, power, and WPS buttons for quick troubleshooting.
Specifications
| Wireless Standard |
802.11 b/g/n/ac/ax/be 2.4GHz, data rate 688Mbps
802.11 a/n/ac/ax/be 5GHz, data rate 2882Mbps
802.11 ax/be 6GHz, data rate 5764Mbps
|
| Wireless Feature |
MLO, SSID Broadcast, Auto channel selection, WPS, WPA, WPA2, WPA3 security, Wireless guest network, 802.11 k/v/r |
| Firewall |
DMZ, UPnP, MAC/URL/Keyword filter |
| Networking |
IPv4/IPv6, NAT, Port forwarding, DHCP/Static IP/PPPoE, DNS |
| Management |
Web GUI (HTTP/HTTPS) management, Parental control,
Firmware upgrade through GUI, Trouble shooting, Config backup/restore, Reboot/factory reset
|
| Chipset |
MediaTek Filogic platform |
| WAN |
One 2.5GbE RJ-45 port |
| LAN |
One 2.5GbE RJ-45 port, Two 1GbE RJ-45 ports |
| USB |
One USB 3.0 Type A |
| LED |
Four LED (Green/Red) for Power, LAN, Mesh and Internet |
| Buttons |
Power, Reset and WPS |
| Antenna |
2.4/5GHz dual band antenna × 2,
6GHz single band antenna × 2,
5GHz single band antenna × 1 for DFS
|
| PSU |
12V / 2.5A |
| Dimension |
80 × 182 × 130 mm (WxHxD) |
| Operating Environment |
Temperature: 0°C to 40°C, Humidity: 5% to 85% RH |
| Storage Environment |
Temperature: -20°C to 70°C, Humidity: 5% to 85% RH |
