Ever tried to build a PC and felt stuck choosing a motherboard that can handle the latest Intel CPUs and fast DDR5 memory? Asrock understands that frustration. The B760M Pro RS gives you a solid LGA 1700 platform, dual-channel DDR5 support up to 192 GB, and built-in 2.5 Gb Ethernet, so you can finish your build without hunting for compatibility.

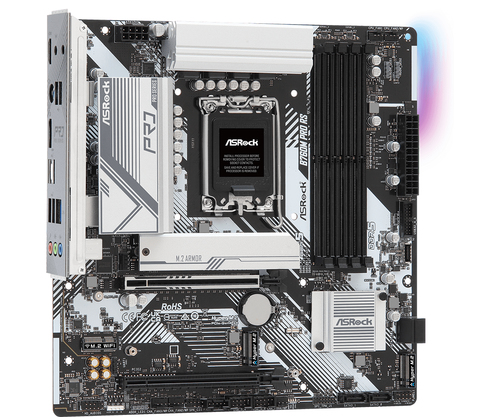

Asrock B760M Pro RS, Intel, LGA 1700, DDR5-SDRAM, 192 GB, micro ATX Motherboard
Designed for gamers, creators, and anyone upgrading a desktop, this micro ATX motherboard fits small cases while delivering the full Intel B760 chipset features. It supports 12th and 13th-gen Intel Core i5/i7/i9 processors, four DDR5 slots, and a range of storage options, making it a practical choice for performance-focused builds.
Benefits
- Smooth multitasking with up to 192 GB DDR5 memory.
- Faster network thanks to 2.5 Gb Ethernet.
- Easy cable management with clear rear I/O layout.
- Future-proof expansion via PCIe 5.0 x16 slot.
- Quiet operation using dedicated CPU fan header.
- Built with Asrock reliability for long-term stability.
Features
- LGA 1700 socket for 12th/13th gen Intel CPUs
- Intel B760 chipset
- Four DDR5 DIMM slots, dual-channel
- One M.2 slot, supports NVMe SSDs
- Four SATA III connectors
- One PCIe 5.0 x16 slot
- Realtek RTL8125-BG 2.5 Gb Ethernet
- RGB LED header and TPM connector
Specifications
| Processor |
| Maximum number of SMP processors |
1 |
| Compatible processor series |
Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
192 GB |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Internal I/O |
| RGB LED pin header |
Yes |
| TPM connector |
Yes |
| Thunderbolt headers |
1 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |

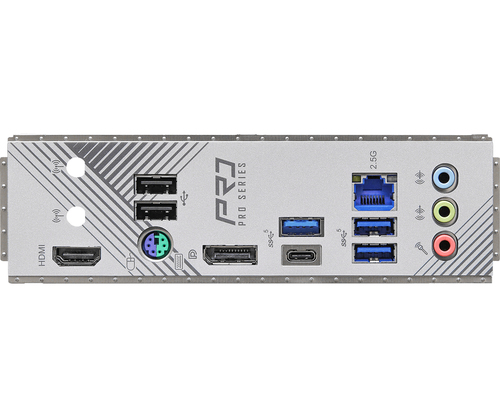

| Rear panel I/O ports |
| Microphone in |
Yes |
| Line-in |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
2 |
| Network |
| Wi-Fi |
No |
| LAN controller |
Realtek RTL8125-BG |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC897 |
| Motherboard chipset |
Intel B760 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
1 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| BIOS |
| BIOS memory size |
128 Mbit |
| BIOS type |
EFI AMI |
| Weight & dimensions |
| Depth |
244 mm |
| Width |
244 mm |
| Other features |
| Maximum internal memory |
192 GB |
