Many small businesses and edge-computing projects need a powerful computer that can run 24 hours without a noisy fan. Heat and noise can cause failures and disturb work environments. The ASRock iBOX-325, Intel Core Ultra 5 325, 4P+4LPE Fanless Embedded BOX PC solves this by delivering high performance in a sealed, fan-less design, so you get reliable operation with no sound and low maintenance.
ASRock iBOX-325, Intel Core Ultra 5 325, 4P+4LPE Fanless Embedded BOX PC with ASRock
Imagine a tiny box that can replace a bulky desktop and stay silent in a kiosk or factory. This product is a compact, fan-less embedded PC built for industrial, digital signage, and IoT uses. It tackles the problem of overheating and loud fans that often limit where a computer can be placed. With ASRocks reliable engineering, you get a rugged, low-profile system that fits on a wall, a shelf, or a DIN-rail.
Key Features
- Intel Core Ultra 5 325 processor for strong compute performance.
- Dual-channel DDR5 6400 MHz memory, up to 128 GB.
- Two 2.5 Gb Ethernet ports (Intel I226LM and I226V).
- HDMI 2.1 and DisplayPort 2.1/1.4a for 8K and 4K video.
- Quad-display support with two Type-C video outputs.
- USB4/Thunderbolt 4 and multiple USB 3.2 ports for fast peripherals.
- Two M.2 slots: one PCIe Gen4 x4 and one PCIe Gen5 x4 for SSDs.
- Aluminum housing with VESA, wall, and DIN-rail mounting options.
- Intel PTT TPM and Windows 10/11 support for secure deployments.
Specifications
| Processor System |
|
| CPU |
Intel® Core™ Ultra Series 3 Processors (Panther Lake-H)
iBOX-325 (Ultra 5 325, 4P+4LPE)
|
| Chipset |
MCP |
| BIOS |
AMI SPI 256 Mbit |
| Memory |
|
| Technology |
Dual Channel DDR5 6400 MHz |
| Capacity |
128GB (64 GB per DIMM) |
| Socket |
2 x 262-pin SO-DIMM |
| Graphics |
|
| Controller |
Intel® Graphics |
| HDMI |
HDMI 2.1Max resolution up to 7680x4320@60Hz |
| DisplayPort |
DisplayPort 2.1/ 1.4a,Max resolution up to 4096x2160@60Hz |
| MultiDisplay |
Quad-Display (Included 2 outputs from Type-C) |
| Expansion Slot |
|
| M.2 |
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless |
| Audio |
|
| Interface |
Realtek ALC256, High Definition Audio |
| Ethernet |
|
| Controller/ Speed |
LAN1: Intel® I226LM with 10/100/1000/2500 Mbps
LAN2: Intel® I226V with 10/100/1000/2500 Mbps
|
| Connector |
2 x RJ-45 |

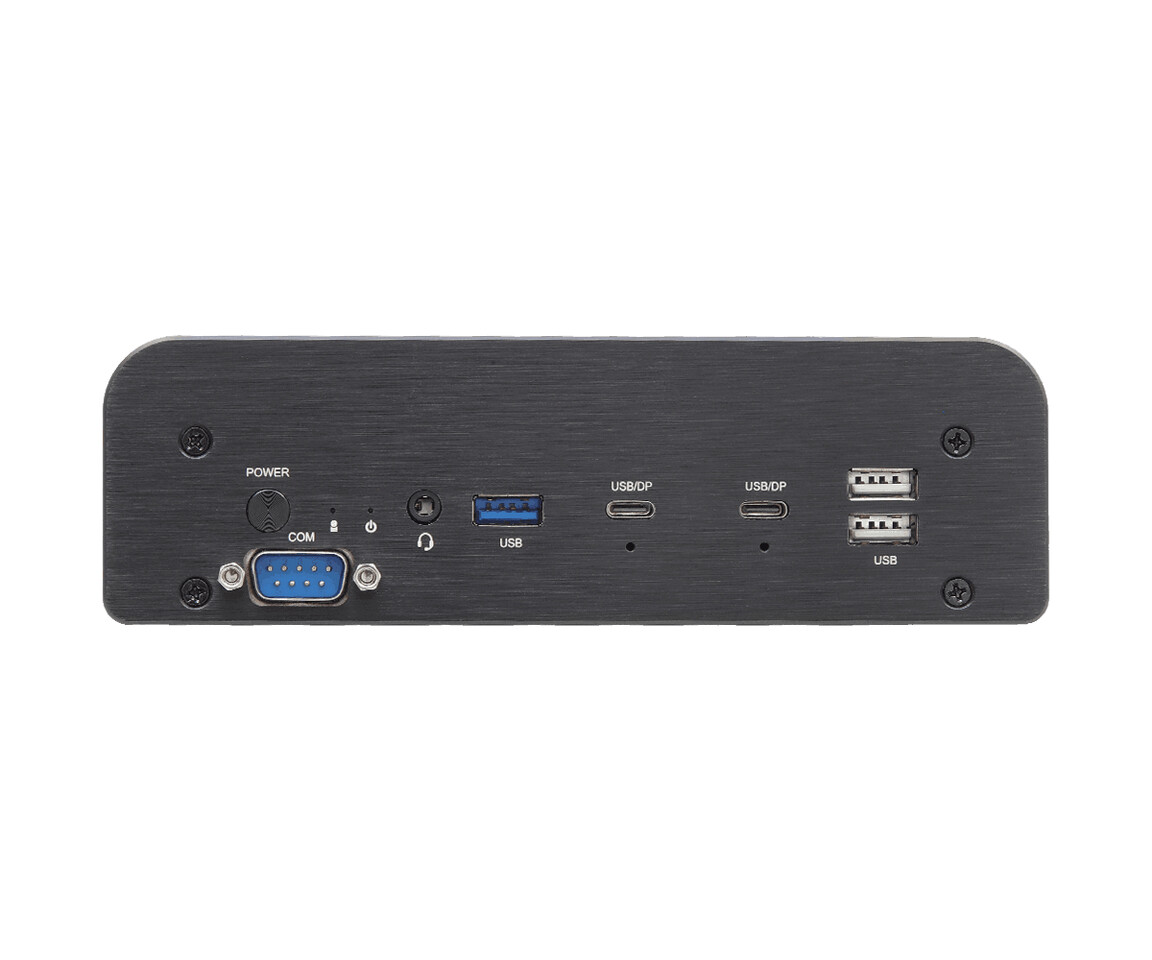

| Front I/O |
|
| USB |
1 x USB 3.2 Gen2 (Type-A)
1 x USB4/Thunderbolt™ 4 (5V/3A, Supports DP 2.1 display output)
1 x USB3.2 Gen2 x2 (Type-C, 5V/3A, Supports DP1.4a display output)
2 x USB 2.0*For Thunderbolt support, please refer to support list.
|
| Audio |
1 (headphone & microphone jack) |
| COM |
1 x COM(RS-232/422/485) |

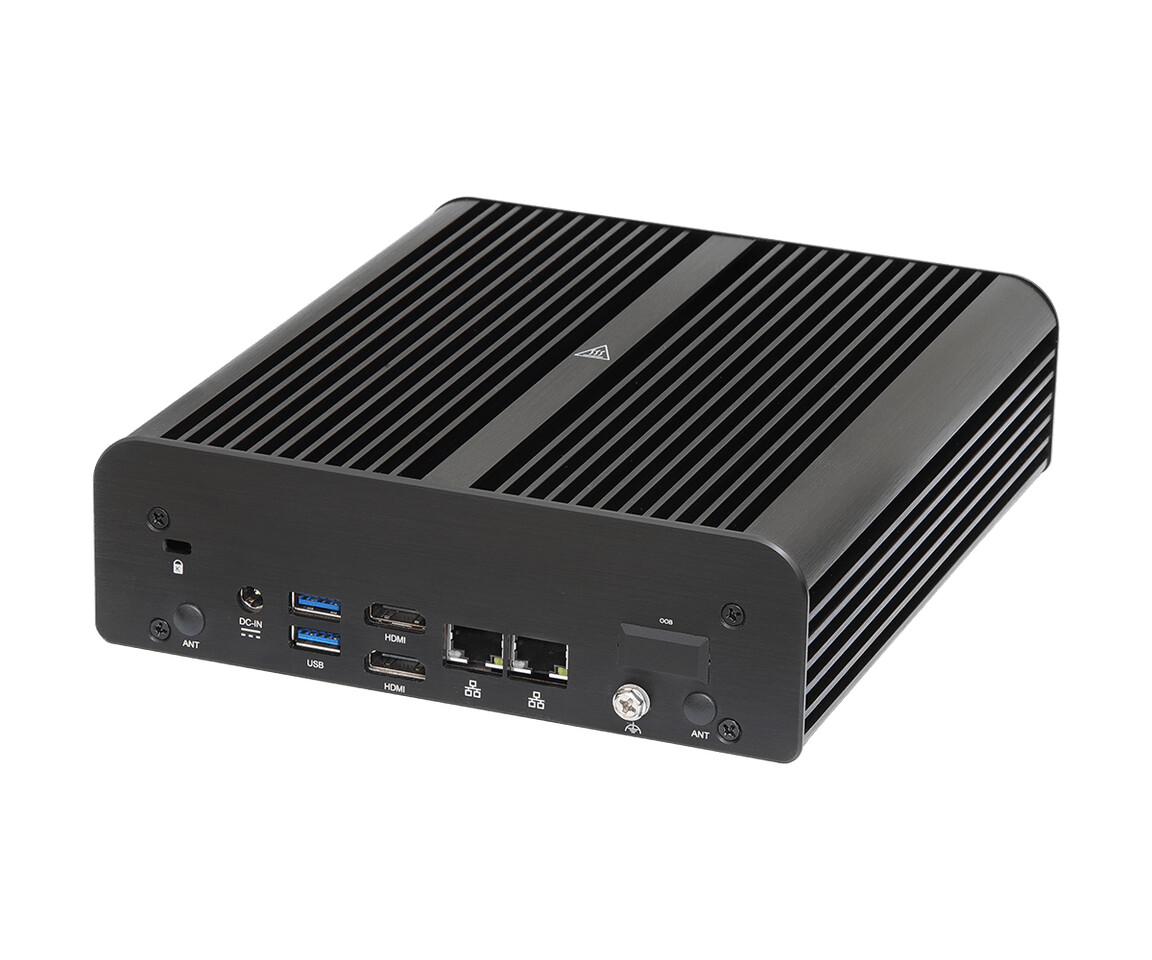

| Rear I/O |
|
| HDMI |
2 x HDMI 2.1 |
| Ethernet |
2 x 2.5 Gigabit LAN |
| USB |
2 x USB 3.2 Gen2 (Type-A) |
| DC Jack |
1 |
| OOB |
Supports Remote Power On/Off/Reset (BOM Optional) |
| Storage |
|
| M.2 |
1 x M.2 (KEY M, 2242) with PCIe Gen4 x4 for SSD
1 x M.2 (KEY M, 2242/2280) with PCIe Gen5 x4 for SSD
|
| RAID |
Intel® VMD RAID 0/1**supported by identical interface (PCIe)PCIe interface: 2*M.2 Key M |
| Watchdog Timer |
|
| Output |
From Super I/O to drag RESETCON# |
| Interval |
256 Segments, 0, 1, 2, ...255sec |
| Power Requirements |
|
| Input PWR |
12V~24V DC-In Jack |
| Power On |
AT/ATX Supported- AT : Directly PWR on as power input ready- ATX : Press button to PWR on after power input ready |
| Environment |
|
| Operating Temp |
-20ºC ~ 50ºC with air flow 0.5~0.8 m/s(with extended temp. peripherals) |
| Storage Temp |
-40° C – 85° C |
| Operating Humidity |
5% ~ 90% |
| Storage Humidity |
5% ~ 90% |
| Mechanical |
|
| Construction |
Aluminum housing |
| Mounting |
VESA mount/Wall mount/Din-rail |
| Dimensions (L x W x H) |
200 x 176.6 x 53.6mm (7.87" x 6.95" x 2.11") |
| Weight |
Net Weight: 3.0Kg |
| Others |
|
| OS Support |
Windows 10/11 |
| TPM |
Intel® PTT |
| Certifications |
CE, FCC |
| Packing List |
1 x 19V/120W Power Adapter
1 x Wall mount kit
|
