Looking for a tiny computer that never gets hot and can run demanding apps? The ASRock iBOX-358H Intel Core Ultra Series 3, Fanless Embedded BOX PC is built for exactly that. It fits in a small space, stays silent, and gives you the power of a modern Intel processor. If you have been frustrated by noisy fans or bulky PCs in tight installations, this box PC solves the problem and lets you focus on your work.

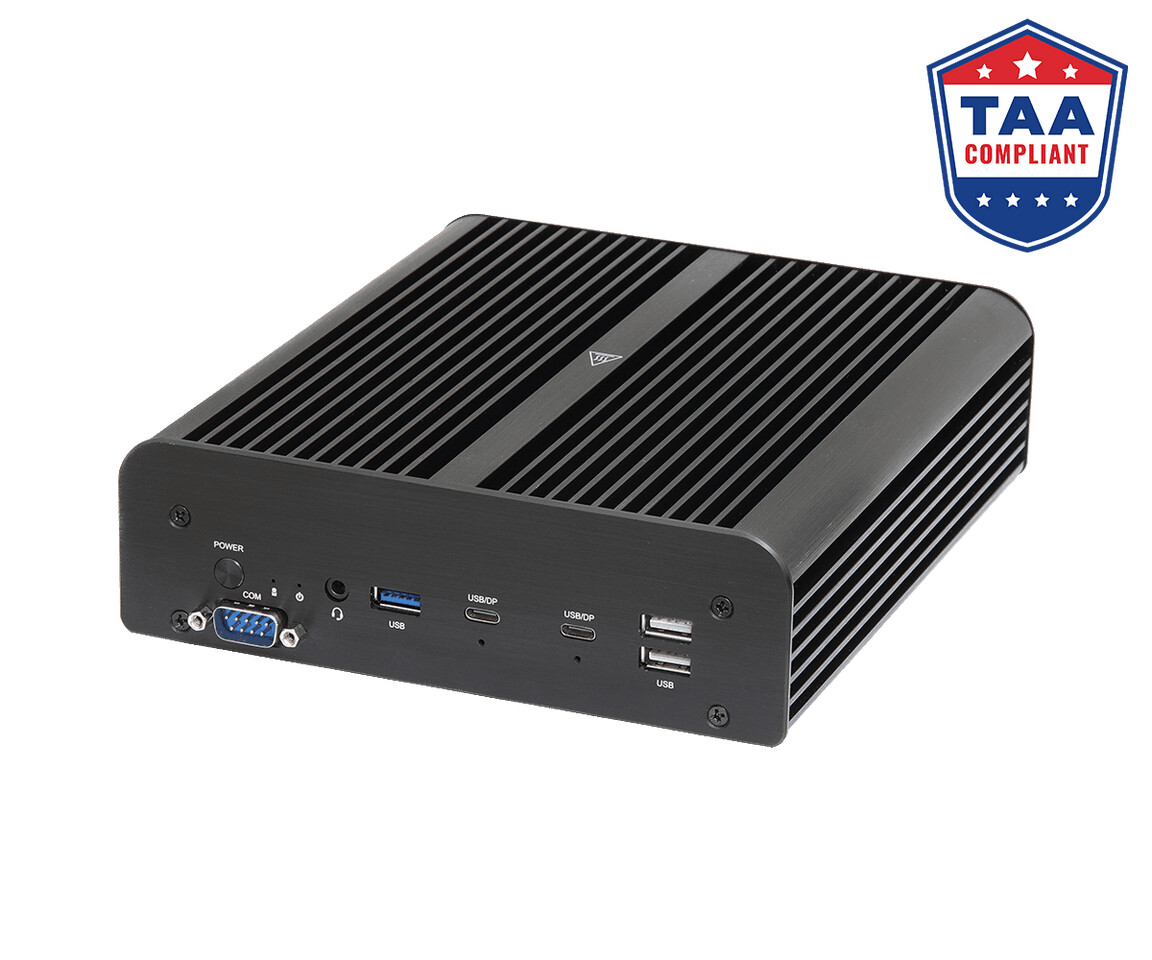

ASRock iBOX-358H Intel Core Ultra Series 3, Fanless Embedded BOX PC
Many industrial and digital-signage projects need a reliable computer that can run 24/7 without making noise. Overheating fans can cause downtime and disturb customers. This product removes the fan, so heat is managed by the aluminum case and efficient chipset. The result is a stable, quiet system that meets high performance needs while fitting into VESA, wall or DIN-rail mounts. You get a clean solution that protects your investment and improves the user experience.
Key Features
- Intel Core Ultra Series 3 processor for fast computing.
- Dual channel DDR5 memory up to 128 GB for smooth multitasking.
- Aluminum fanless chassis keeps the system silent.
- HDMI 2.1 and DisplayPort 2.1 support high-resolution monitors.
- Two 2.5 Gigabit LAN ports provide redundant high-speed networking.
- USB4/Thunderbolt 4 and multiple USB 3.2 ports for fast peripherals.
- PCIe Gen5 M.2 slot for ultra-fast SSD storage.
- VESA, wall and DIN-rail mounting options for flexible installation.
- Intel PTT TPM for hardware security.
Specifications
| Processor System |
|
| CPU |
Intel® Core™ Ultra Series 3 Processors (Panther Lake-H)
iBOX-358H (Ultra X7 358H, 4P+8E+4LPE)
|
| Chipset |
MCP |
| BIOS |
AMI SPI 256 Mbit |
| Memory |
|
| Technology |
Dual Channel DDR5 7200 MHz (Ultra X7 358H) |
| Capacity |
128GB (64 GB per DIMM) |
| Socket |
2 x 262-pin SO-DIMM |
| Graphics |
|
| Controller |
Intel® Graphics |
| HDMI |
HDMI 2.1Max resolution up to 7680x4320@60Hz |
| DisplayPort |
DisplayPort 2.1/ 1.4a,Max resolution up to 4096x2160@60Hz |
| MultiDisplay |
Quad-Display (Included 2 outputs from Type-C) |
| Expansion Slot |
|
| M.2 |
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless |
| Audio |
|
| Interface |
Realtek ALC256, High Definition Audio |
| Ethernet |
|
| Controller/ Speed |
LAN1: Intel® I226LM with 10/100/1000/2500 Mbps
LAN2: Intel® I226V with 10/100/1000/2500 Mbps
|
| Connector |
2 x RJ-45 |

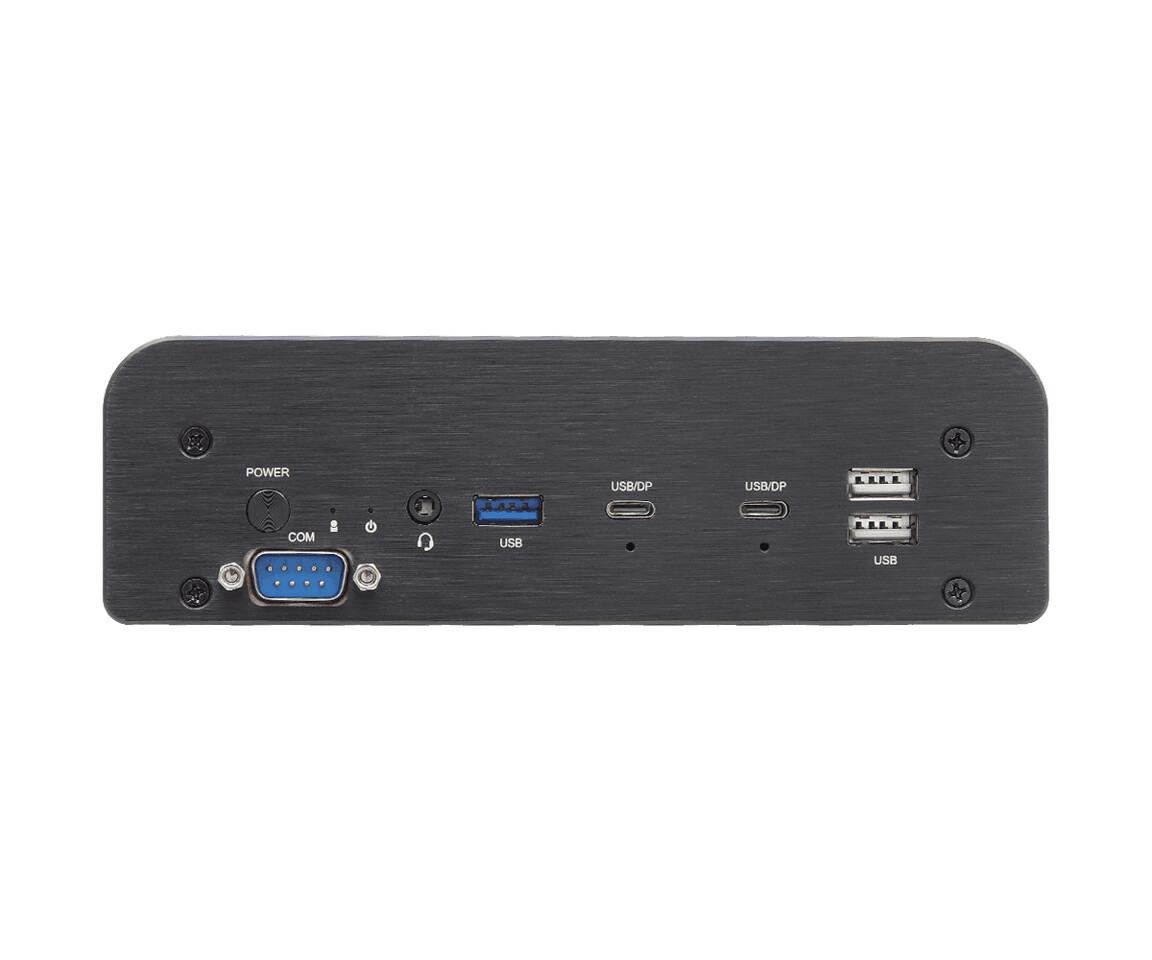

| Front I/O |
|
| USB |
1 x USB 3.2 Gen2 (Type-A)
1 x USB4/Thunderbolt™ 4 (5V/3A, Supports DP 2.1 display output)
1 x USB3.2 Gen2 x2 (Type-C, 5V/3A, Supports DP1.4a display output)
2 x USB 2.0*For Thunderbolt support, please refer to support list.
|
| Audio |
1 (headphone & microphone jack) |
| COM |
1 x COM(RS-232/422/485) |

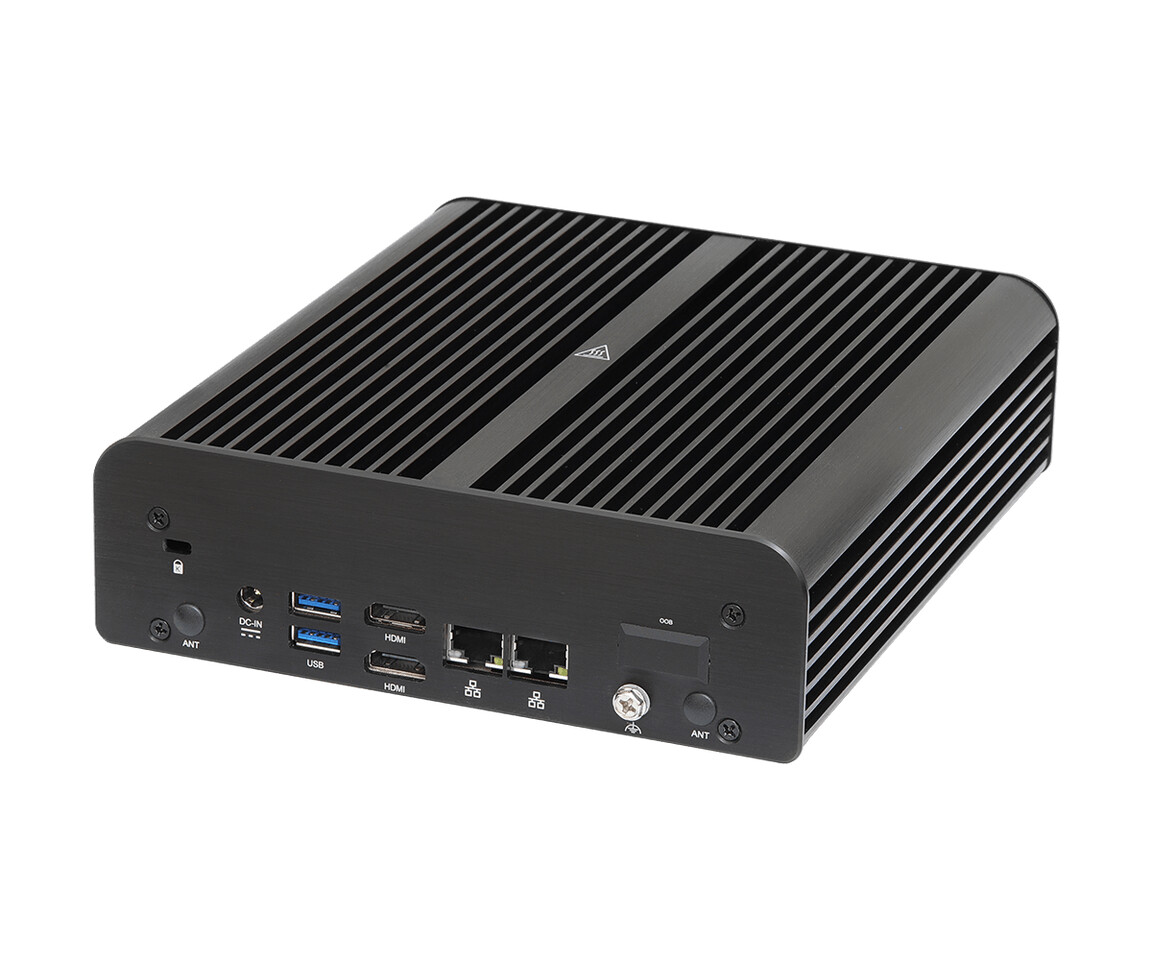

| Rear I/O |
|
| HDMI |
2 x HDMI 2.1 |
| Ethernet |
2 x 2.5 Gigabit LAN |
| USB |
2 x USB 3.2 Gen2 (Type-A) |
| DC Jack |
1 |
| OOB |
Supports Remote Power On/Off/Reset (BOM Optional) |
| Storage |
|
| M.2 |
1 x M.2 (KEY M, 2242) with PCIe Gen4 x4 for SSD
1 x M.2 (KEY M, 2242/2280) with PCIe Gen5 x4 for SSD
|
| RAID |
Intel® VMD RAID 0/1**supported by identical interface (PCIe)PCIe interface: 2*M.2 Key M |
| Watchdog Timer |
|
| Output |
From Super I/O to drag RESETCON# |
| Interval |
256 Segments, 0, 1, 2, ...255sec |
| Power Requirements |
|
| Input PWR |
12V~24V DC-In Jack |
| Power On |
AT/ATX Supported- AT : Directly PWR on as power input ready- ATX : Press button to PWR on after power input ready |
| Environment |
|
| Operating Temp |
-20ºC ~ 50ºC with air flow 0.5~0.8 m/s(with extended temp. peripherals) |
| Storage Temp |
-40° C – 85° C |
| Operating Humidity |
5% ~ 90% |
| Storage Humidity |
5% ~ 90% |
| Mechanical |
|
| Construction |
Aluminum housing |
| Mounting |
VESA mount/Wall mount/Din-rail |
| Dimensions (L x W x H) |
200 x 176.6 x 53.6mm (7.87" x 6.95" x 2.11") |
| Weight |
Net Weight: 3.0Kg |
| Others |
|
| OS Support |
Windows 10/11 |
| TPM |
Intel® PTT |
| Certifications |
CE, FCC |
| Packing List |
1 x 19V/120W Power Adapter
1 x Wall mount kit
|
