If you are looking to take your computer to the next level, you need a high-quality motherboard. The Asrock X870 PRO RS, AMD, Socket AM5, DDR5-SDRAM 256GB ATX Motherboard is one of the best options available. This motherboard is designed to provide you with the best possible performance, with features such as DDR5 memory and a Socket AM5 processor socket. Many people struggle with slow computer speeds, but with this motherboard, you can say goodbye to those days. You will be able to run multiple applications at once without any lag, making it perfect for gaming, video editing, and other resource-intensive activities.

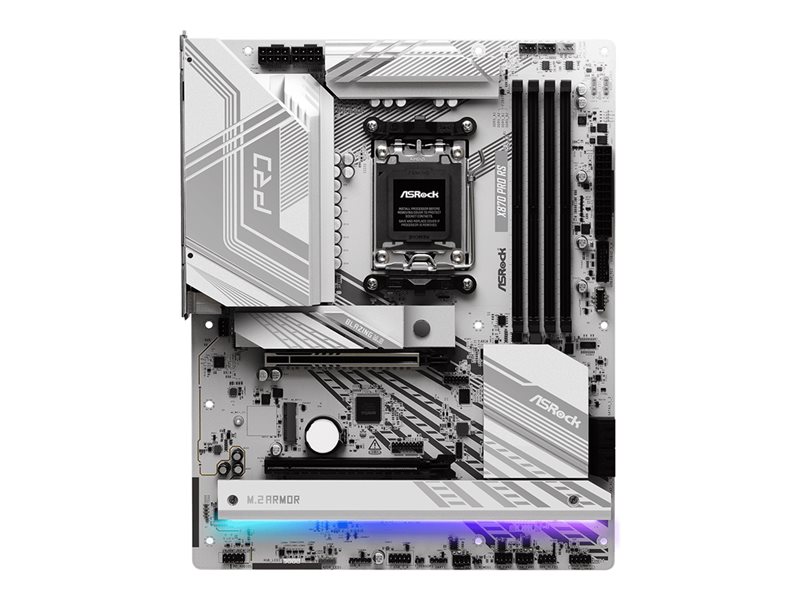

Asrock X870 PRO RS, AMD, Socket AM5, DDR5-SDRAM 256GB ATX Motherboard
This product solves the problem of slow computer speeds by providing a high-quality motherboard that can handle demanding tasks. The problem of slow computer speeds matters to users because it can be frustrating and decrease productivity. The Asrock X870 PRO RS motherboard gives a clear solution by providing a fast and reliable platform for your computer. With its advanced features and high-quality components, you can trust that your computer will run smoothly and efficiently.
Key Features
- Socket AM5 processor socket, supporting Ryzen 7000/8000/9000 Series processors
- DDR5 memory, providing fast and reliable performance
- ATX form factor, making it easy to install and set up
- 4 x DIMM 288-pin memory slots, supporting up to 256GB of memory
- 1 x PCIe 5.0 x16 slot, providing fast and reliable graphics performance
- 1 x PCIe 4.0 x16 slot, providing additional graphics performance
- 2 x M.2 socket (2280 M.2 Key M slot), providing fast and reliable storage
- 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot), providing additional storage options
- 24-pin main power connector, providing reliable and efficient power
- 2 x 8-pin ATX12V connectors, providing additional power options
- High Definition Audio, providing clear and reliable audio
- 2.5 Gigabit Ethernet, providing fast and reliable networking
Specifications
| Miscellaneous |
|
| Cables Included |
2 x Serial ATA cable |
| Included Accessories |
1 x M.2 screw |
| Product Type |
Motherboard |
| Width |
12 in |
| Compliant Standards |
HDCP 2.3, ErP Ready, EuP Ready, FCC |
| Software Included |
ASRock Phantom Gaming LAN Software, ASRock Phantom Gaming Tuning, ASRock Polychrome SYNC |
| Depth |
9.6 in |
| Processor |
|
| Max Supported Qty |
1 |
| Installed Qty |
0 |
| Networking |
|
| Data Link Protocol |
2.5 Gigabit Ethernet |
| Dimensions & Weight |
|
| Width |
12in |
| Depth |
9.6in |
| Supported RAM |
|
| Supported RAM Integrity Check |
Non-ECC, ECC |
| Max Size |
256 GB |
| Bus Clock |
8000 MHz (O.C.) |
| Features |
Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
| Registered or Buffered |
Unbuffered |
| Technology |
DDR5 |
| Audio Output |
|
| Type |
Sound card |
| Video Output |
|
| Type |
Graphics adapter (CPU required) |
| Mainboard |
|
| Form Factor |
ATX |
| Supported RAM (Registered or Buffered) |
Unbuffered |
| Processor Socket |
Socket AM5 |
| Supported RAM Speed |
8000 MHz (O.C.) |
| Supported RAM Integrity Check |
ECC |
| Supported RAM Technology |
DDR5 SDRAM |
| Chipset Type |
AMD X870 |
| Interfaces |
|
| Storage |
Blazing M.2 socket |
| USB |
USB-C 3.2 Gen 2x2 |
| Header |
|
| Model |
X870 Pro RS |
| Product Line |
ASRock |
| Packaged Quantity |
1 |
| LAN |
|
| Network Controller |
Dragon RTL8125BG |
| Network Interfaces |
2.5 Gigabit Ethernet |
| General |
|
| Product Type |
Motherboard - ATX |
| Chipset Type |
AMD X870 |
| Processor Socket |
Socket AM5 |
| Max Processors Qty |
1 |
| Compatible Processors |
(supports Ryzen 7000/8000/9000 Series) |
| Features |
|
| BIOS Type |
AMI |
| BIOS Features |
UEFI BIOS |
| Audio |
|
| Compliant Standards |
High Definition Audio |
| Type |
HD Audio (8-channel) |
| Expansion / Connectivity |
|
| Interfaces |
1 x HDMI, 1 x SPDIF out, 2 x USB4, 4 x USB 3.2 Gen 1, 6 x USB 2.0, 1 x LAN (2.5Gigabit Ethernet),
1 x audio line-out - mini-jack, 1 x microphone - mini-jack
|
| Internal Interfaces |
3 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x USB-C 3.2 Gen 2x2 - header,
1 x audio - header
|
| Power Connectors |
24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Expansion Slots |
1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x M.2 socket (Key E),
1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot), 2 x M.2 socket (2280 M.2 Key M slot)
|
| Storage Interfaces |
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1,
PCIe 4.0 -connectors: 1 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10,
PCIe 5.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 /
PCIe 3.0 -connectors: 1 x Ultra M.2 - RAID 0 / RAID 1 / RAID 10
|
| RAM |
|
| Max Supported Size |
256GB |
