Are you tired of using a slow computer that can't keep up with your gaming needs? Do you want to take your gaming experience to the next level? Look no further than the ASUS B850 MAX GAMING WIFI, AMD Socket AM5, DDR5-SDRAM, 256GB ATX Motherboard. This powerful motherboard is designed to provide you with the speed and performance you need to play the latest games at high frame rates and resolutions. With its advanced features and high-quality components, this motherboard is the perfect choice for anyone looking to build a high-performance gaming PC. The ASUS brand is known for its high-quality products, and this motherboard is no exception, offering a reliable and efficient solution for your gaming needs.

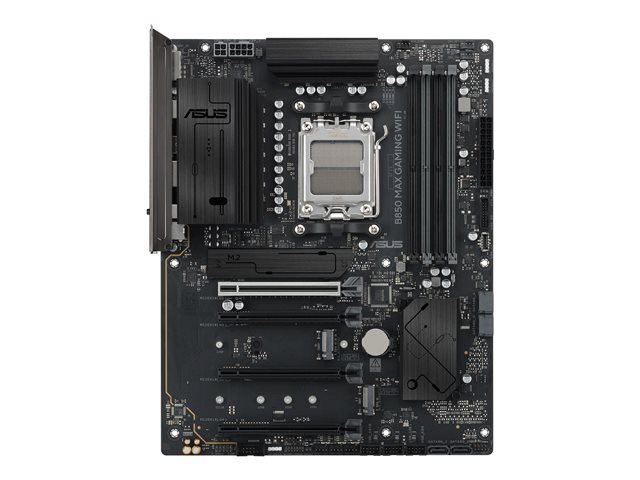

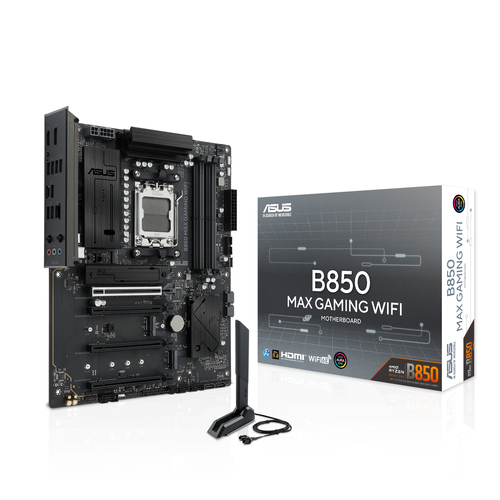

ASUS B850 MAX GAMING WIFI, AMD Socket AM5, DDR5-SDRAM, 256GB ATX Motherboard
This product solves the problem of slow gaming performance by providing a fast and efficient platform for your games to run on. The problem of slow gaming performance matters to users because it can be frustrating and take away from the overall gaming experience. The ASUS B850 MAX GAMING WIFI motherboard gives a clear solution to this problem by providing a high-performance platform that is capable of handling demanding games and applications. With its advanced features such as DDR5-SDRAM and AMD Socket AM5, this motherboard is designed to provide fast and efficient performance, making it an ideal choice for gamers and content creators.
Key Features
- AMD Socket AM5 for support of the latest Ryzen processors
- DDR5-SDRAM for fast and efficient memory performance
- 256GB ATX motherboard for a compact and efficient design
- Wi-Fi 6E for fast and reliable wireless connectivity
- Bluetooth 5.3 for easy pairing with devices
- USB-C 3.2 Gen 1 for fast and convenient connectivity
- 2.5 Gigabit Ethernet for fast and reliable wired connectivity
- High-definition audio with 8-channel sound
- PCIe 5.0 x16 slot for support of the latest graphics cards
- 4 x DIMM 288-pin slots for support of up to 256GB of memory
- 1 x M.2 socket for support of fast and efficient storage
Specifications
| Miscellaneous |
|
| Cables Included |
2 x Serial ATA cable |
| Included Accessories |
1 x M.2 rubber package, 3 x M.2 SSD screw package, ASUS Wi-Fi Q-antenna |
| Product Type |
Motherboard |
| Width |
12 in |
| Compliant Standards |
DisplayPort 1.4 |
| Depth |
9.6 in |
| Processor |
|
| Max Supported Qty |
1 |
| Installed Qty |
0 |
| Networking |
|
| Data Link Protocol |
Bluetooth 5.3 |
| Dimensions & Weight |
|
| Width |
12in |
| Depth |
9.6in |
| Supported RAM |
|
| Integrity Check |
Non-ECC, ECC, on-die ECC |
| Max Size |
256 GB |
| Bus Clock |
8400 MT/s (O.C.), 8200 MT/s (O.C.), 9000 MT/s (O.C.), 8600 MT/s (O.C.), 8000 MT/s (O.C.) |
| Features |
Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
| Registered or Buffered |
Unbuffered |
| Technology |
DDR5 |
| Audio Output |
|
| Type |
Sound card |
| Video Output |
|
| Type |
Graphics adapter (CPU required) |
| Mainboard |
|
| Form Factor |
ATX |
| Registered or Buffered |
Unbuffered |
| Processor Socket |
Socket AM5 |
| Speed |
9000 MT/s (O.C.) |
| Integrity Check |
On-die ECC |
| Technology |
DDR5 SDRAM |
| Chipset Type |
AMD B850 |
| Interfaces |
|
| Storage |
M.2 socket |
| USB |
USB-C 3.2 Gen 1 |
| Header |
|
| Model |
B850 MAX GAMING WIFI |
| Product Line |
ASUS |
| Packaged Quantity |
1 |
| LAN |
|
| Network Interfaces |
802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3, 2.5 Gigabit Ethernet |
| General |
|
| Product Type |
Motherboard - ATX |
| Chipset Type |
AMD B850 |
| Processor Socket |
Socket AM5 |
| Max Processors Qty |
1 |
| Compatible Processors |
(supports Ryzen 7000/8000/9000 Series) |
| Features |
|
| BIOS Features |
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Audio |
|
| Compliant Standards |
High Definition Audio |
| Type |
HD Audio (8-channel) |
| Expansion / Connectivity |
|
| Interfaces |
1 x USB-C 3.2 Gen 2, 3 x USB 3.2 Gen 2, 2 x USB 2.0, 2 x USB 3.2 Gen 1, 1 x LAN (2.5Gigabit Ethernet),
2 x antenna, 1 x DisplayPort, 1 x HDMI, 1 x microphone - mini-jack, 1 x audio line-in - mini-jack, 1 x audio line-out - mini-jack
|
| Internal Interfaces |
1 x Thunderbolt 4 - header, 1 x USB-C 3.2 Gen 1 - header, 2 x USB 3.2 Gen 1 - header,
6 x USB 2.0 - header, 1 x audio - header, 1 x serial - header, 1 x SPDIF out - header, 1 x SPI - header
|
| Power Connectors |
24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Expansion Slots |
1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x16 (x1 mode),
2 x M.2 socket (2280 M.2 Key M slot), 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
|
| Storage Interfaces |
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
|
| RAM |
|
| Max Supported Size |
256GB |
