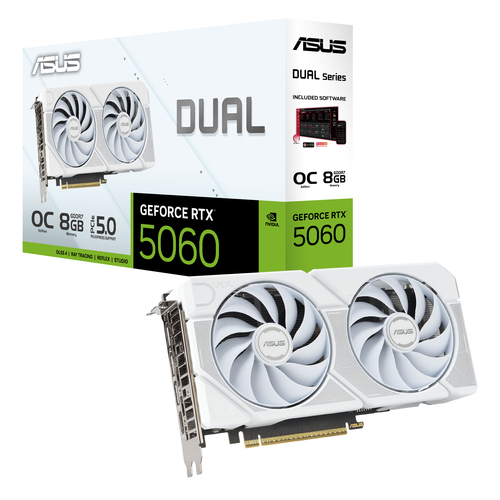

ASUS Dual -RTX5060-O8G-WHITE GeForce RTX 5060 8GB GDDR7 PCI Express 5.0 Gaming Graphics Card
The ASUS Dual -RTX5060-O8G-WHITE is a graphics card powered by the NVIDIA GeForce RTX 5060 graphics engine and equipped with 8GB of GDDR7 SDRAM. It uses a PCI Express 5.0 interface and is designed for high-performance desktop systems requiring modern graphics processing and fast memory connectivity.

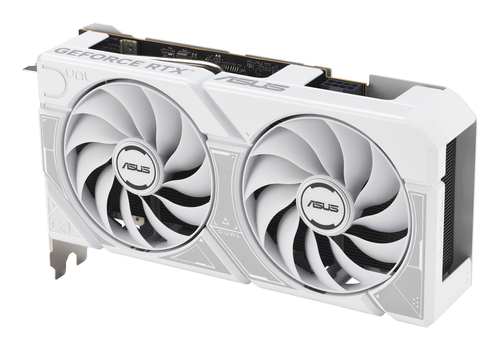

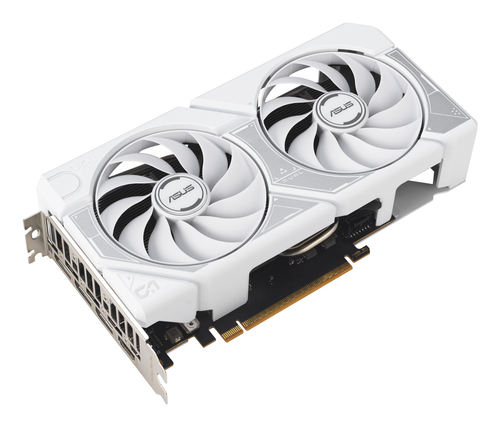

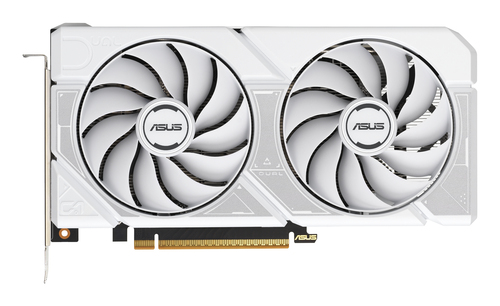

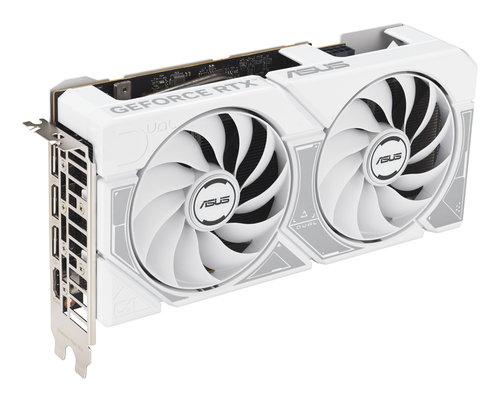

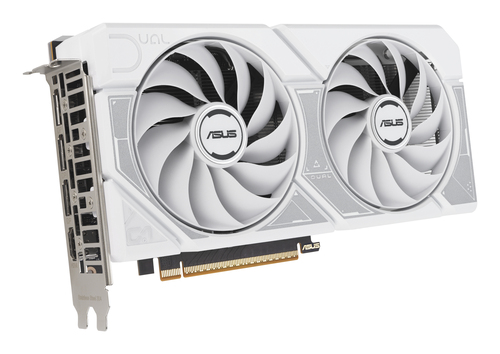

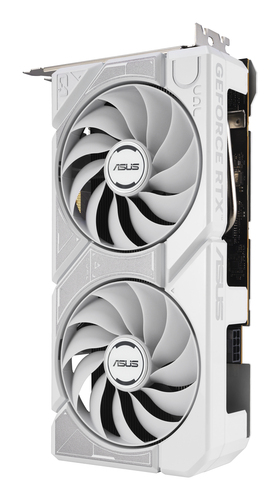

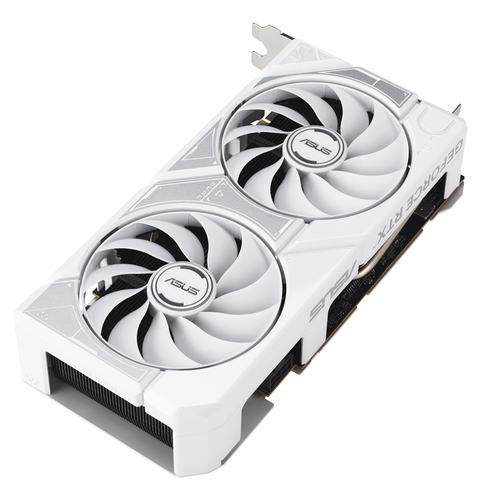

The graphics card features a 128-bit memory bus with a memory speed of 28 Gbps. Its dual fan design, 2.5-slot fan cooler, Axial-tech Fan Design, and 0dB Technology provide the cooling features needed for demanding graphics workloads while maintaining a compact graphics card configuration.

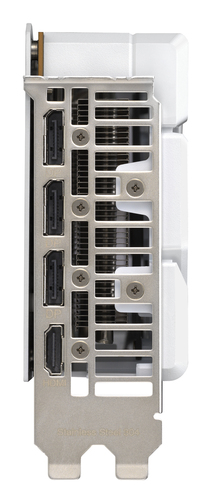

For display connectivity, the card provides 3 x DisplayPort and HDMI interfaces and supports up to four monitors. It supports a maximum resolution of 7680 x 4320, making it suitable for high-resolution displays, multi-monitor workstations, gaming systems, and other graphics-intensive applications.
Built on the NVIDIA Blackwell GPU architecture, the card includes 5th gen Tensor Cores, 4th gen Ray Tracing Cores, NVIDIA DLSS 4, NVIDIA Reflex 2, NVIDIA Multi Frame Generation, NVIDIA G-Sync ready, and NVIDIA Broadcast. These features support modern gaming, rendering, content creation, and AI-assisted graphics workloads.

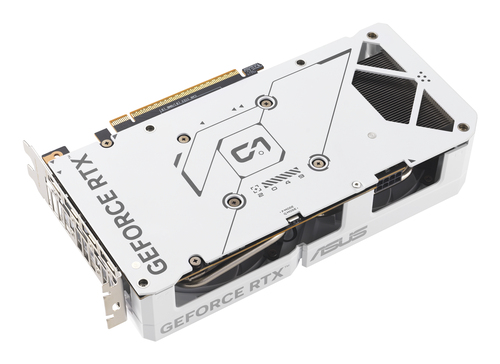

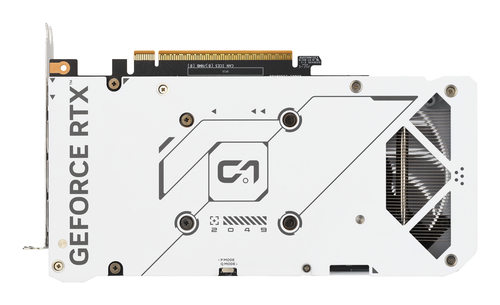

The ASUS Dual RTX 5060 also includes Dual BIOS, Dual ball Bearing Fans, a vented backplate, ASUS GPU Guard, an anti-bending plate, a stainless steel mounting bracket, and AUTO-EXTREME technology. It requires a 550 W power supply and has a 2-inch width, 9-inch depth, and 4.8-inch height.
Key Features
-
NVIDIA GeForce RTX 5060 graphics engine with 8GB GDDR7 SDRAM
-
28 Gbps memory speed with 128-bit bus width
-
PCI Express 5.0 interface
-
3 x DisplayPort and HDMI video interfaces
-
Supports up to 4 monitors with 7680 x 4320 maximum resolution
-
NVIDIA Blackwell GPU architecture with 5th gen Tensor Cores
-
Dual fan design with 2.5-slot fan cooler and 0dB Technology
-
550 W required power supply
SPECIFICATION
| HEADER |
|
| Model |
Dual |
| Product Line |
ASUS |
| Packaged Quantity |
1 |
| GENERAL |
|
| Device Type |
Graphics card |
| Graphics Engine |
NVIDIA GeForce RTX 5060 |
| Bus Type |
PCI Express 5.0 |
| Interfaces Details |
3 x DisplayPort ¦ HDMI |
| Max Resolution |
7680 x 4320 |
| Max Monitors Supported |
4 |
| API Supported |
OpenGL 4.6 |
| MEMORY |
|
| Memory Speed |
28 Gbps |
| Bus Width |
128-bit |
| Memory Size |
8 GB |
| Memory Technology |
GDDR7 SDRAM |
| VIDEO MEMORY |
|
| Technology |
GDDR7 SDRAM |
| Installed Size |
8GB |
| VIDEO OUTPUT |
|
| Graphics Processor |
NVIDIA GeForce RTX 5060 |
| Max External Resolution |
7680 x 4320 |
| Max Monitors Supported |
4 |
| Interface Type |
PCI Express 5.0 |
| Graphics Processor Manufacturer |
NVIDIA |
| Type |
Graphics card |
| Supported Video Signal |
DisplayPort |
| SYSTEM REQUIREMENTS |
|
| Required Power Supply |
550 W |
| DIMENSIONS & WEIGHT |
|
| Height |
4.8in |
| Width |
2in |
| Depth |
9in |
| MISCELLANEOUS |
|
| Included Accessories |
Thank you card |
| Compliant Standards |
HDCP 2.3, DisplayPort 2.1b |
