Smart, secure and set for business

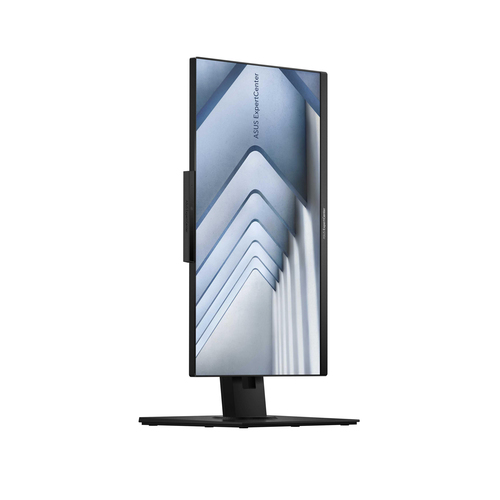

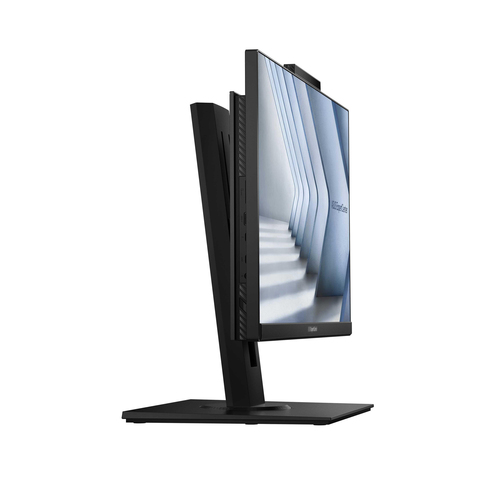

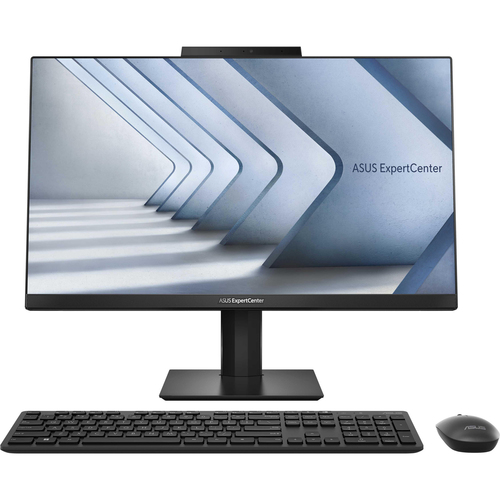

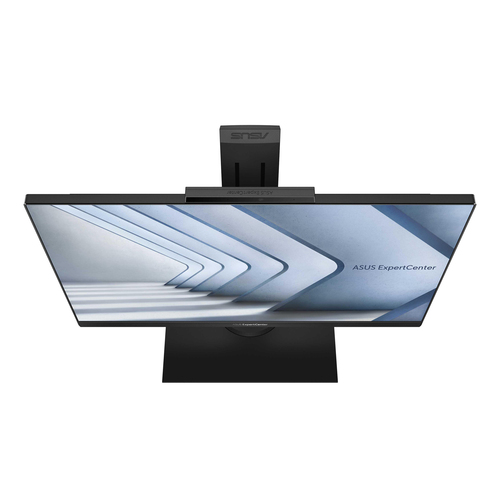

The ASUS ExpertCenter E5 AiO 24 is designed with versatility and security in mind, making it perfect for any type of productivity. It features the latest Intel® Core™ 7 processor (Series 1), high-speed connectivity, and upgradeable storage for top performance. Additionally, the height-adjustable stand1, VESA compatibility, built-in camera, and enterprise-grade security features make ASUS ExpertCenter E5 AiO 24 the ideal solution for forward-thinking businesses.
Specifications
| Display |
| Colour gamut |
100% |
| Anti-glare screen |
Yes |
| Contrast ratio (typical) |
1000:1 |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
sRGB |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Panel type |
LCD |
| Response time |
14 ms |
| Display brightness |
250 cd/m² |
| Native aspect ratio |
16:9 |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
60.5 cm (23.8") |
| Processor |
| Maximum turbo power |
64 W |
| Processor base power |
28 W |
| Processor cache type |
Smart Cache |
| Processor cache |
12 MB |
| Efficient-core Max Turbo Frequency |
3.4 GHz |
| Performance-core Max Turbo Frequency |
4.6 GHz |
| Efficient cores |
8 |
| Performance cores |
4 |
| Processor boost frequency |
4.6 GHz |
| Processor threads |
16 |
| Processor cores |
12 |
| Processor model |
i5-1340P |
| Processor generation |
13th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| Memory form factor |
DIMM/SO-DIMM |
| Memory slots type |
SO-DIMM |
| Maximum internal memory |
64 GB |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| Compatible memory cards |
SD, MMC |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| On-board graphics card |
Yes |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| Audio |
| Built-in microphone |
Yes |
| Built-in speaker(s) |
Yes |
| Camera |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Camera HD type |
HD |
| Camera resolution |
1280 x 720 pixels |
| Built-in camera |
Yes |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Antenna type |
2x2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ports & interfaces |
| DC-in jack |
Yes |
| Combo headphone/mic port |
Yes |
| Headphone outputs |
1 |
| HDMI version |
2.1b |
| HDMI ports quantity |
2 |
| Thunderbolt 4 ports quantity |
1 |
| Intel® Thunderbolt 4 |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB4 Gen 3x2 ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Design |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Colour name |
Black |
| Product colour |
Black |
| Performance |
| BIOS password |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Market positioning |
Business |
| Product type |
All-in-One PC |
| Software |
| Trial software |
1-month trial for new Microsoft 365 customers. Credit card required. |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
| AC adapter output voltage |
20 V |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50 - 60 Hz |
| AC adapter power |
120 W |
| Weight & dimensions |
| Weight (with stand) |
8.9 kg |
| Height (with stand) |
201 mm |
| Depth (with stand) |
426 mm |
| Width (with stand) |
541 mm |
| Certificates |
| Compliance certificates |
REACH |
| Sustainability |
| Sustainability certificates |
ENERGY STAR, EPEAT Silver |
| Packaging content |
| Keyboard connectivity |
Wireless |
| Keyboard included |
Yes |
| Mouse connectivity |
Wireless |
| Mouse included |
Yes |
| Other features |
| Infrared (IR) camera |
Yes |
| Windows Hello |
Yes |
