Experience the power of a full‑size workstation in a pocket‑sized chassis with the ASUS NUC 14 Pro 90AS0081-M001J0, Intel Core Ultra 7, W11 Pro MINI PC. Its 16‑core Intel Core Ultra 7 processor, 32 GB DDR5 memory, and 1 TB PCIe 4.0 SSD deliver blazing‑fast performance for demanding tasks while staying under 600 g. Ready for AI workloads and modern connectivity, this mini PC lets you upgrade your workspace without sacrificing desk space.

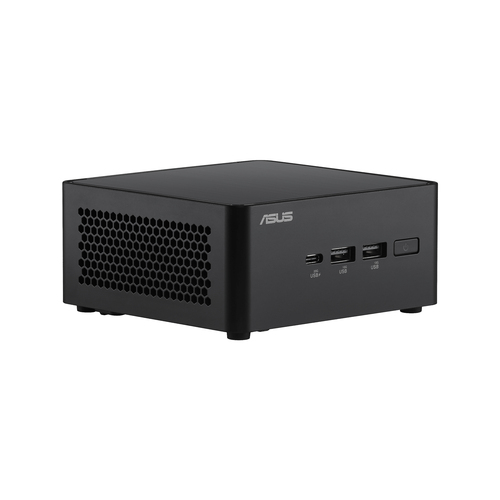

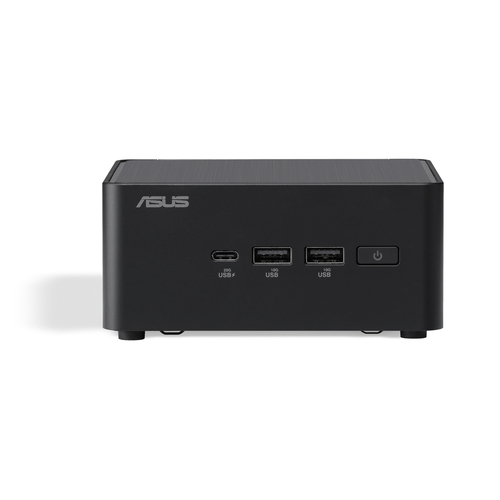

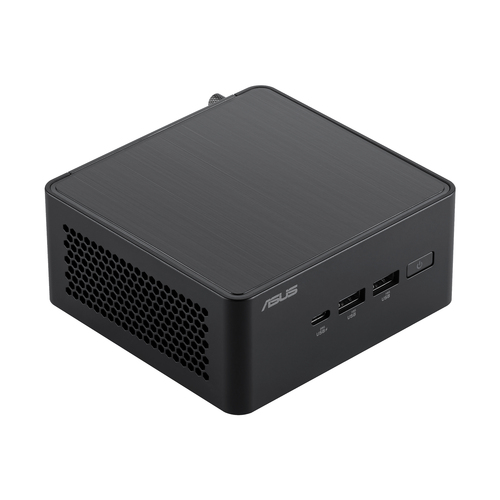

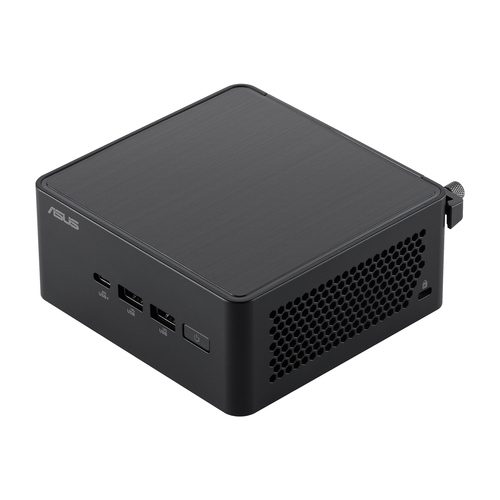

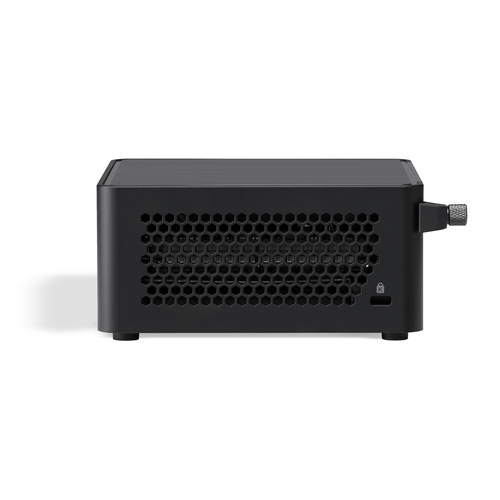

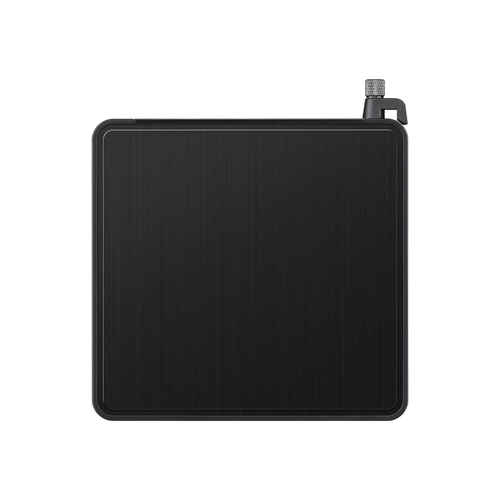

ASUS NUC 14 Pro 90AS0081-M001J0, Intel Core Ultra 7, W11 Pro MINI PC
Built on a partnership between ASUS and Intel, this NUC combines a compact design with high‑end specs. Intel Arc Graphics handle visual‑intensive applications, while the integrated AI Boost NPU accelerates machine‑learning frameworks such as DirectML and OpenVINO. Dual HDMI 2.1 and Thunderbolt 4 ports give you flexible display and peripheral options, and Wi‑Fi 6E plus 2.5 Gb Ethernet keep you connected at top speed.
The sleek black chassis includes a Kensington lock slot for secure mounting in office or lab environments. With a 120 W power supply and efficient cooling, the system stays quiet even under heavy loads, making it ideal for both professional and home use.
Benefits
- Desktop‑class performance in a 54 mm tall mini PC.
- AI‑ready with Intel AI Boost and support for major AI frameworks.
- Future‑proof connectivity: Wi‑Fi 6E, 2.5 Gb Ethernet, Thunderbolt 4.
- Secure mounting with built‑in Kensington lock slot.
Uses of the product
- Content creation and video editing with fast rendering.
- AI development and inference on the go.
- Multi‑monitor workstation for designers and engineers.
- Compact office PC for remote work and virtual meetings.
Features
- Intel Core Ultra 7 155H processor: 16 cores (6 performance, 8 efficient, 2 low‑power) and 22 threads, up to 4.8 GHz boost.
- 32 GB DDR5‑5600 memory (expandable to 96 GB) for smooth multitasking.
- 1 TB PCIe 4.0 NVMe SSD for rapid storage and quick file access.
- Dual HDMI 2.1, dual Thunderbolt 4, 3× USB 3.2 Gen 2, and 1× USB 2.0 ports for versatile peripheral connections.
Specifications
| Processor |
| Maximum turbo power |
115 W |
| Processor base power |
28 W |
| Processor cache type |
Smart Cache |
| Processor cache |
24 MB |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Efficient-core base frequency |
0.9 GHz |
| Performance-core base frequency |
1.4 GHz |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Efficient-core Max Turbo Frequency |
3.8 GHz |
| Performance-core Max Turbo Frequency |
4.8 GHz |
| Low Power Efficient-cores |
2 |
| Efficient cores |
8 |
| Performance cores |
6 |
| Processor boost frequency |
4.8 GHz |
| Processor threads |
22 |
| Processor cores |
16 |
| Processor model |
155H |
| Processor generation |
Intel® Core™ Ultra (Series 1) |
| Processor family |
Intel Core Ultra 7 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
| AI software frameworks supported by NPU |
DirectML, ONNX RT, OpenVINO, Windows ML |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
| Memory clock speed |
5600 MHz |
| Memory slots |
2x SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
96 GB |
| Internal memory |
32 GB |
| Storage |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
1 TB |
| Graphics |
| On-board graphics card model |
Intel Arc Graphics |
| On-board graphics card family |
Intel Arc Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer |
Intel |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
2500 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
2 |
| Thunderbolt 4 ports quantity |
2 |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 3 ports quantity |
0 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 2.0 ports quantity |
1 |
| Design |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Chassis type |
Mini PC |
| Performance |
| Market positioning |
Everyday |
| Product type |
Mini PC |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
| Power supply |
120 W |
| Weight & dimensions |
| Weight |
600 g |
| Height |
54 mm |
| Depth |
112 mm |
| Width |
117 mm |
| Display |
| Display included |
No |
| Other features |
| Maximum internal memory |
96 GB |
